Transporto priemonė: BT-25; VIN numerio dalis: 698400

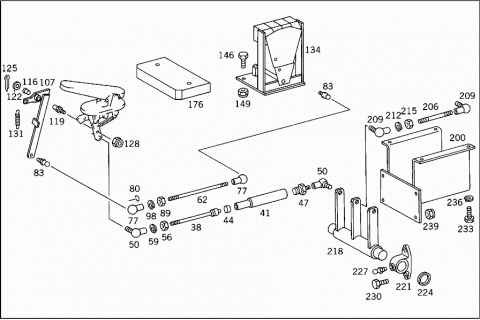

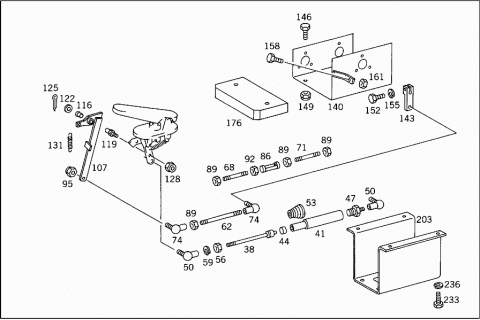

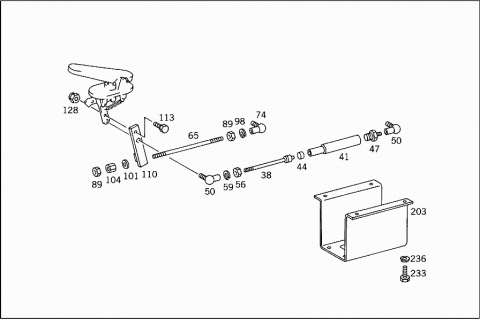

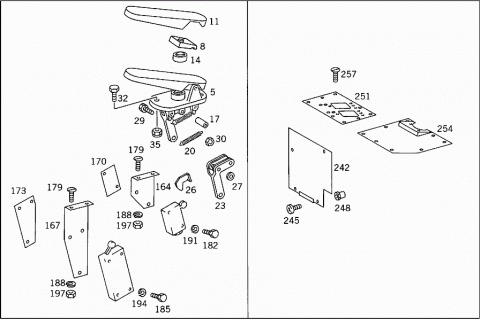

Grupė: 29 PEDAL ASSEMBLY - 060 BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0002920001 | PEDAL |
| BRAKE | ||
| 005 | A 0002920001 | PEDAL |
| EXHAUST BRAKE | ||
| 008 | A 0002920049 | BEARING |
| BRAKE PEDAL | ||
| 011 | A 0002920082 | PAD |
| BRAKE PEDAL | ||
| 014 | A 0002920097 | BOOT |
| BRAKE PEDAL | ||
| 017 | A 0002920050 | BUSHING |
| BRAKE PEDAL | ||
| 020 | A 0002920087 | SPRING |
| BRAKE PEDAL | ||
| 020 | A 6982923687 | SPRING |
| TO BE EXCHANGED FOR | ||
| A 000 292 00 87 | ||
| 023 | A 6982923631 | LEVER |
| BRAKE PEDAL | ||
| 026 | A 6982923620 | INTERMEDIATE PIECE |
| RIGHT | ||
| 026 | A 6982923820 | INTERMEDIATE PIECE |
| LEFT | ||
| 027 | N 000988010025 | FITTED WASHER |
| BRAKE PEDAL | ||
| 10 X 0.5 MM | ||
| 027 | N 000988010016 | FITTED WASHER |
| BRAKE PEDAL | ||
| 10 X 1.0 MM | ||
| 027 | N 000988010019 | FITTED WASHER |
| BRAKE PEDAL | ||
| 10 X 1.5 MM | ||
| 027 | N 000988010020 | FITTED WASHER |
| BRAKE PEDAL | ||
| 10 X 2.0 MM | ||
| 029 | N 000933005035 | SCREW |
| BRAKE PEDAL | ||
| M 5X25 | ||
| 030 | N 000934005023 | NUT |
| BRAKE PEDAL | ||
| 032 | N 000933008153 | SCREW |
| PEDAL TO BEARING BRACKET | ||
| M 8X25 | ||
| 035 | N 913004008004 | NUT |
| PEDAL TO BEARING BRACKET | ||
| 038 | A 6984303692 | ROD |
| BRAKE PEDAL CONTROL | ||
| 038 | A 6984303892 | ROD |
| BRAKE PEDAL CONTROL | ||
| 041 | A 6984303621 | GUIDE TUBE |
| BRAKE PEDAL CONTROL | ||
| 044 | A 6982923850 | BUSHING |
| 047 | A 6982923635 | ROLLER |
| BRAKE PEDAL CONTROL | ||
| 050 | A 6989963645 | ARTICULATION PIECE |
| BRAKE PEDAL CONTROL | ||
| 050 | A 6989963845 | ARTICULATION PIECE |
| BRAKE PEDAL CONTROL | ||
| 053 | A 6984313686 | CUP |
| BRAKE PEDAL CONTROL | ||
| 056 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 056 | N 308673014001 | HEXAGON NUT |
| BRAKE PEDAL CONTROL | ||
| 059 | N 912004014100 | LOCK WASHER |
| BRAKE PEDAL CONTROL | ||
| 062 | A 6988333679 | ROD |
| CONTROL | ||
| 062 | A 6983013815 | ROD |
| CONTROL | ||
| 065 | A 6984263930 | ROD |
| CONTROL | ||
| 068 | N 900331006047 | PULL ROD |
| CONTROL | ||
| 071 | N 900331006491 | PULL ROD |
| CONTROL | ||
| 074 | N 071802010203 | ANGLE JOINT |
| CONTROL | ||
| 077 | N 071805010204 | BALL SOCKET |
| CONTROL | ||
| 080 | N 071805010403 | CIRCLIP |
| CONTROL | ||
| 083 | N 071803010102 | BALL PIVOT |
| CONTROL | ||
| 086 | N 001479006001 | TURNBUCKLE |
| CONTROL | ||
| 089 | N 000934006007 | NUT |
| CONTROL | ||
| 092 | N 000934006012 | NUT |
| CONTROL | ||
| 095 | N 913004006002 | NUT |
| CONTROL | ||
| 098 | N 912004006100 | LOCK WASHER |
| CONTROL | ||
| 101 | N 000125006421 | WASHER |
| CONTROL | ||
| 104 | A 6989963634 | NUT |
| CONTROL | ||
| 107 | A 6983003628 | LEVER |
| LEVER TO PEDAL | ||
| 107 | A 6982903828 | LEVER |
| LEVER TO PEDAL | ||
| 110 | A 6982904228 | LEVER |
| LEVER TO PEDAL | ||
| 110 | A 6982904728 | LEVER |
| LEVER TO PEDAL | ||
| 113 | N 000933008153 | SCREW |
| LEVER TO PEDAL | ||
| M 8X25 | ||
| 116 | A 6982923650 | BUSHING |
| LEVER TO PEDAL | ||
| 119 | A 6983013674 | PIN |
| LEVER TO PEDAL | ||
| 122 | N 000125010518 | WASHER |
| LEVER TO PEDAL | ||
| 125 | N 000094003238 | COTTER PIN |
| Repalced by: N 000094003219 | ||
| 125 | N 000094003219 | COTTER PIN |
| LEVER TO PEDAL | ||
| 128 | N 913004008004 | NUT |
| LEVER TO PEDAL | ||
| 131 | A 6982923687 | SPRING |
| (TENSION SPRING) | ||
| 134 | A 6985403845 | SWITCH |
| (PULSE SENDER UNIT) | ||
| 140 | A 6985404673 | BRACKET |
| (PULSE SENDER UNIT) | ||
| 143 | A 6982923936 | LEVER |
| (PULSE SENDER UNIT) | ||
| 146 | N 000933008147 | SCREW |
| BRACKET TO FRAME | ||
| M 8X20 | ||
| 149 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| 152 | N 000933006121 | SCREW |
| LEVER TO SWITCH | ||
| M 6X20 | ||
| 155 | N 912004006100 | LOCK WASHER |
| LEVER TO SWITCH | ||
| 158 | N 000933008161 | SCREW |
| STOP | ||
| M 8X50 | ||
| 161 | N 000934008010 | NUT |
| STOP | ||
| 164 | A 6985453640 | BRACKET |
| (PULSE SENDER UNIT) | ||
| 167 | A 6985453940 | BRACKET |
| (PULSE SENDER UNIT) | ||
| 170 | A 6985453782 | PLATE |
| PULSE SENDER UNIT TO BRACKET | ||
| 173 | A 6985454082 | PLATE |
| PULSE SENDER UNIT TO BRACKET | ||
| 176 | A 6986163638 | REST |
| BRACKET TO BRAKE | ||
| 179 | N 000963006031 | SCREW |
| BRACKET TO CAB FLOOR | ||
| M 6X16 | ||
| 182 | N 000933004077 | SCREW |
| PULSE SENDER UNIT TO BRACKET | ||
| M 4X45 | ||
| 185 | N 000933005066 | SCREW |
| Repalced by: N 304017005011 | ||
| 185 | N 304017005011 | SCREW |
| PULSE SENDER UNIT TO BRACKET | ||
| M 5X20 | ||
| 188 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB FLOOR | ||
| 191 | N 912004004102 | LOCK WASHER |
| PULSE SENDER UNIT TO BRACKET | ||
| 194 | N 912004005100 | LOCK WASHER |
| PULSE SENDER UNIT TO BRACKET | ||
| 197 | N 000934006007 | NUT |
| BRACKET TO CAB FLOOR | ||
| 200 | A 6984303839 | SUPPORT |
| BRAKE VALVE | ||
| 203 | A 6984306810 | BRACKET |
| BRAKE VALVE | ||
| 206 | A 6984313775 | THREADED UNION |
| BRAKE VALVE | ||
| 209 | A 6989963645 | ARTICULATION PIECE |
| BRAKE VALVE | ||
| 212 | N 912004014100 | LOCK WASHER |
| BRAKE VALVE | ||
| 215 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 215 | N 308673014001 | HEXAGON NUT |
| BRAKE VALVE | ||
| 218 | A 6984303620 | CONTROL SHAFT |
| 221 | A 6982903631 | BEARING |
| CONTROL SHAFT | ||
| 224 | A 6982923750 | BUSHING |
| 227 | N 071412010100 | GREASE NIPPLE |
| 230 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 230 | N 304017010047 | SCREW |
| MOUNTING TO BRACKET | ||
| M 10X35 | ||
| 233 | N 000933010038 | SCREW |
| SUPPORT TO SUBSTRUCTURE | ||
| M 10X25 | ||
| 236 | N 912004010102 | LOCK WASHER |
| SUPPORT TO SUBSTRUCTURE | ||
| 239 | N 913004010011 | NUT |
| SUPPORT TO SUBSTRUCTURE | ||
| 242 | A 6985203824 | ANTINOISE CAPSULE |
| COVER PLATE TO FRAME FLOOR UNIT | ||
| 242 | A 6985244333 | COVERING |
| COVER PLATE TO FRAME FLOOR UNIT | ||
| 245 | A 6985243665 | LATCH |
| COVER PLATE TO FRAME FLOOR UNIT | ||
| 248 | A 6985243765 | LATCH |
| COVER PLATE TO FRAME FLOOR UNIT | ||
| 251 | A 6986164052 | FLOOR |
| PEDAL ASSEMBLY | ||
| 251 | A 6986163852 | FLOOR |
| PEDAL ASSEMBLY ON THE RIGHT | ||
| 251 | A 6986163652 | FLOOR |
| PEDAL ASSEMBLY ON THE RIGHT | ||
| 251 | A 6986164252 | FLOOR |
| PEDAL ASSEMBLY ON THE RIGHT | ||
| 251 | A 6986164452 | FLOOR |
| PEDAL ASSEMBLY ON THE RIGHT | ||
| 254 | A 6986103655 | FLOOR |
| PEDAL ASSEMBLY ON THE LEFT | ||
| 254 | A 6986163752 | FLOOR |
| PEDAL ASSEMBLY ON THE LEFT | ||
| 254 | A 6986103755 | FLOOR |
| PEDAL ASSEMBLY ON THE LEFT | ||
| 254 | A 6986103855 | FLOOR |
| PEDAL ASSEMBLY ON THE LEFT | ||
| 257 | N 000963005010 | SCREW |
| M 5X16 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/380 | ||
