Transporto priemonė: BU 5-25; VIN numerio dalis: 698300

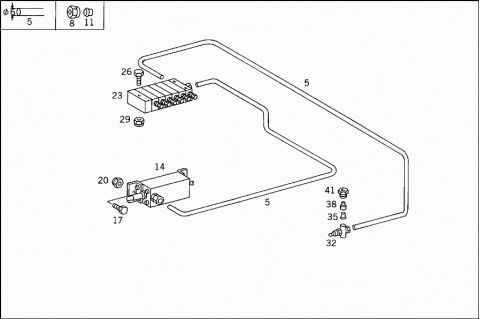

Grupė: 57 CENTRAL LUBRICATION - 060 RING MOUNT LUBRICATION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0139970282 | HOSE |
| (LUBRICATING LINE) | ||
| 6 MM | ||
| 008 | N 915017006100 | UNION NUT |
| 011 | N 003861006007 | GLAND |
| 014 | A 0015736820 | DISTRIBUTOR |
| (METERING DISTRIBUTOR) | ||
| 017 | N 000933006235 | SCREW |
| METERING DISTRIBUTOR TO BRACKET AT SUBSTRUCTURE | ||
| 020 | N 913004006003 | NUT |
| METERING DISTRIBUTOR TO BRACKET AT SUBSTRUCTURE | ||
| 023 | A 0015739820 | DISTRIBUTOR |
| LUBRICATING LINE TO RING MOUNT | ||
| 026 | N 000931006115 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 029 | N 913004006003 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 032 | A 0005732030 | ELBOW |
| PLASTIC PIPE TO RING-MOUNT LUBRICATING LINE | ||
| 035 | A 0005730353 | SPACER TUBE |
| PLASTIC PIPE TO RING-MOUNT LUBRICATING LINE | ||
| 038 | A 0009905167 | SEAL CONE |
| PLASTIC PIPE TO RING-MOUNT LUBRICATING LINE | ||
| 041 | A 0009908068 | FITTING |
| PLASTIC PIPE TO RING-MOUNT LUBRICATING LINE |
