Transporto priemonė: BU 5-25; VIN numerio dalis: 698300

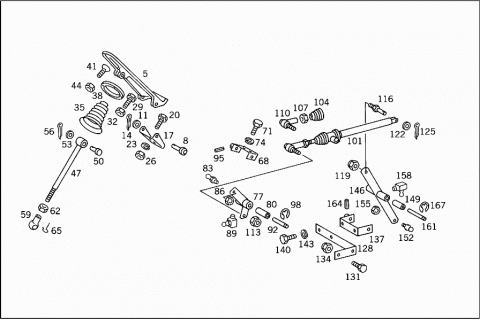

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3073010002 | PEDAL PLATE |
| ACCELERATOR PEDAL | ||
| 008 | N 001444010200 | PIN |
| ACCELERATOR PEDAL TO JOINT | ||
| 011 | N 000125010518 | WASHER |
| ACCELERATOR PEDAL TO JOINT | ||
| 014 | N 000094003219 | COTTER PIN |
| ACCELERATOR PEDAL TO JOINT | ||
| 017 | A 6983010005 | ARTICULATION PIECE |
| ACCELERATOR PEDAL | ||
| 020 | N 000963008046 | SCREW |
| ARTICULATION ELEMENT TO FLOOR | ||
| 023 | N 912004008102 | LOCK WASHER |
| ARTICULATION ELEMENT TO FLOOR | ||
| 026 | N 000934008010 | NUT |
| ARTICULATION ELEMENT TO FLOOR | ||
| 029 | N 000933008160 | SCREW |
| PEDAL STOP | ||
| 032 | N 000934008010 | NUT |
| PEDAL STOP | ||
| 035 | A 6973010097 | BOOT |
| CAB FLOOR COVERING | ||
| 038 | A 6973010076 | WASHER |
| BOOT TO CAB FLOOR | ||
| 041 | N 000965004053 | SCREW |
| BOOT TO CAB FLOOR | ||
| 044 | N 913004004002 | NUT |
| BOOT TO CAB FLOOR | ||
| 047 | A 6983001215 | ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| NO.1 | ||
| 050 | N 001444006200 | PIN |
| ROD TO PEDAL PLATE | ||
| 053 | N 000125006421 | WASHER |
| ROD TO PEDAL PLATE | ||
| 056 | N 000094001617 | COTTER PIN |
| ROD TO PEDAL PLATE | ||
| 059 | N 071805013203 | BALL SOCKET |
| ROD TO INTERMEDIATE LEVER | ||
| NO.1 | ||
| 062 | N 000934008010 | NUT |
| BALL SOCKET TO ROD | ||
| 065 | N 071805013402 | CIRCLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 068 | A 3573000640 | BRACKET |
| INTERMEDIATE LEVER | ||
| NO.1 | ||
| 071 | N 000933008145 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 071 | N 000933008130 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 074 | N 912004008102 | LOCK WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 077 | A 6983001528 | LEVER |
| (INTERMEDIATE LEVER) | ||
| NO.1 | ||
| 080 | A 3173010450 | BUSHING |
| 083 | N 071803013102 | BALL PIVOT |
| TOP | ||
| 086 | N 000934008010 | NUT |
| BALL PIVOT TO LEVER | ||
| 089 | N 900216008301 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 092 | A 3573010519 | SHAFT |
| LEVER TO BRACKET | ||
| 095 | N 001481003021 | CLAMPING SLEEVE |
| SHAFT TO BRACKET | ||
| 098 | N 900055012402 | RETAINING RING |
| SHAFT TO BRACKET | ||
| 101 | A 3572600789 | PULL ROD |
| FROM LEVER I TO LEVER II WITH KICKDOWN SWITCH | ||
| 104 | A 3575450245 | BOOT |
| 107 | N 000934008010 | NUT |
| 110 | A 0003010322 | JOINT |
| 113 | N 913004008004 | NUT |
| PULL ROD TO INTERMEDIATE LEVER | ||
| NO.1 | ||
| 116 | A 6983010174 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| NO.2 | ||
| 119 | N 913004006002 | NUT |
| PIN TO INTERMEDIATE LEVER | ||
| NO.2 | ||
| 122 | N 001440006000 | WASHER |
| PULL ROD TO PIN | ||
| 125 | N 000094002059 | COTTER PIN |
| PULL ROD TO PIN | ||
| 128 | A 6983011540 | BRACKET |
| INTERMEDIATE LEVER | ||
| NO.2 | ||
| 131 | N 000933008153 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 134 | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 137 | A 3573000640 | BRACKET |
| INTERMEDIATE LEVER | ||
| NO.2 | ||
| 140 | N 000933008145 | SCREW |
| BRACKET TO BRACKET | ||
| 140 | N 000933008130 | SCREW |
| BRACKET TO BRACKET | ||
| 143 | N 912004008102 | LOCK WASHER |
| BRACKET TO BRACKET | ||
| 146 | A 6983001328 | LEVER |
| (INTERMEDIATE LEVER) | ||
| NO.2 | ||
| 149 | A 3173010450 | BUSHING |
| 152 | N 071803010102 | BALL PIVOT |
| BOTTOM | ||
| 155 | N 000934006007 | NUT |
| BALL PIVOT TO LEVER | ||
| 158 | N 900216008301 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 161 | A 3573010519 | SHAFT |
| LEVER TO BRACKET | ||
| 164 | N 001481003021 | CLAMPING SLEEVE |
| SHAFT TO BRACKET | ||
| 167 | N 900055012402 | RETAINING RING |
| SHAFT TO BRACKET | ||

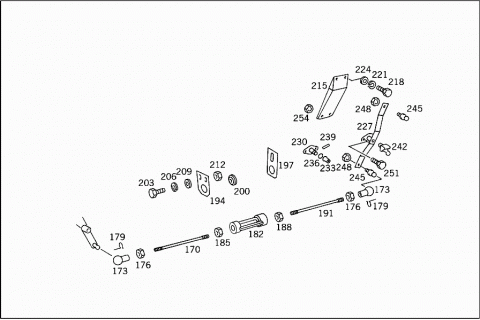

| 170 | N 900331006624 | PULL ROD |
| FROM LEVER II TO TURNBUCKLE NUT | ||
| 2400 MM | ||
| 173 | N 071805010204 | BALL SOCKET |
| ROD | ||
| 176 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 179 | N 071805010403 | CIRCLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 182 | N 001479006001 | TURNBUCKLE |
| 185 | N 000934006007 | NUT |
| 188 | N 000934006012 | NUT |
| L.H. THREAD | ||
| 191 | N 900331006339 | PULL ROD |
| FROM TURNBUCKLE NUT TO LEVER III | ||
| 2100 MM | ||
| 194 | A 3053000240 | BRACKET |
| PULL ROD | ||
| 197 | A 6983003840 | BRACKET |
| PULL ROD | ||
| 200 | A 3013020050 | BUSHING |
| A 6985010620 | BRACKET | |
| PULL ROD | ||
| 203 | N 000933008130 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| M 8X12 | ||
| 203 | N 000933008147 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| M 8X20 | ||
| 206 | N 912004008102 | LOCK WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 209 | N 000125008418 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 212 | N 913001008001 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 215 | A 6983011040 | BRACKET |
| INTERMEDIATE LEVER | ||
| NO.3 | ||
| 218 | N 000933016060 | SCREW |
| BRACKET TO ENGINE SUPPORT | ||
| 221 | N 912004016101 | LOCK WASHER |
| BRACKET TO ENGINE SUPPORT | ||
| 224 | N 000125017010 | WASHER |
| BRACKET TO ENGINE SUPPORT | ||
| 227 | A 6983001428 | LEVER |
| (INTERMEDIATE LEVER) | ||
| NO.3 | ||
| 230 | A 3573000374 | PIN |
| 233 | A 3073010250 | BUSHING |
| 236 | A 0089974046 | SEAL RING |
| 239 | N 000007003104 | CYLINDRICAL PIN |
| 242 | N 071412008200 | GREASE NIPPLE |
| 245 | N 071803010102 | BALL PIVOT |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 248 | N 000934006007 | NUT |
| BALL PIVOT TO LEVER | ||
| 251 | N 000963008046 | SCREW |
| LEVER TO BRACKET | ||
| 254 | N 913001008001 | NUT |
| LEVER TO BRACKET | ||

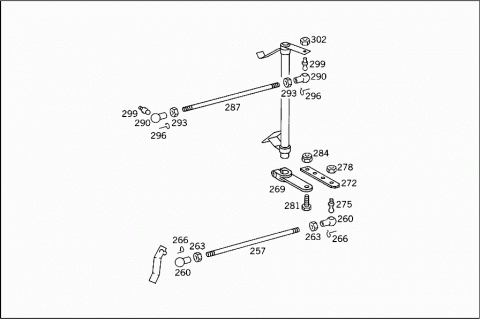

| 257 | N 900331006616 | PULL ROD |
| FROM LEVER TO INTERMEDIATE SHAFT | ||
| 400 MM | ||
| 260 | N 071805010204 | BALL SOCKET |
| ROD | ||
| 263 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 266 | N 071805010403 | CIRCLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 269 | A 3573040220 | LEVER |
| MODULATOR INTERMEDIATE SHAFT | ||
| 272 | A 6983040142 | PLATE |
| EXTENSION | ||
| 275 | N 071803010102 | BALL PIVOT |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 278 | N 000934006007 | NUT |
| BALL PIVOT TO LEVER | ||
| 281 | N 000933006123 | SCREW |
| PLATE TO LEVER | ||
| 284 | N 913004006002 | NUT |
| PLATE TO LEVER | ||
| 287 | N 900331006617 | PULL ROD |
| INJECTION PUMP CONTROL | ||
| 600 MM | ||
| 290 | N 071805010204 | BALL SOCKET |
| ROD | ||
| 293 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 296 | N 071805010403 | CIRCLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 299 | N 071803010102 | BALL PIVOT |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 302 | N 000934006007 | NUT |
| BALL PIVOT TO LEVER |
