Transporto priemonė: BU 5-25; VIN numerio dalis: 698300

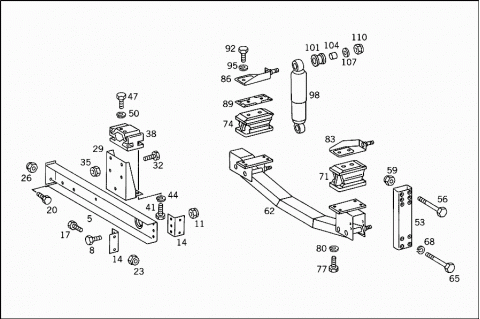

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6982400101 | ENGINE SUPPORT |
| Repalced by: A 6982400401 | ||
| 005 | A 6982400401 | ENGINE SUPPORT |
| ENGINE FRONT SUSPENSION | ||
| 008 | N 000961012097 | SCREW |
| SUPPORT TO MOUNTING PLATE | ||
| 011 | N 913004012008 | NUT |
| SUPPORT TO MOUNTING PLATE | ||
| 014 | A 6982420031 | MOUNTING PLATE |
| ENGINE SUPPORT TO LEFT SIDE MEMBER | ||
| 017 | N 000961012151 | SCREW |
| ENGINE SUPPORT TO LEFT SIDE MEMBER | ||
| 020 | N 000960014095 | SCREW |
| ENGINE SUPPORT TO RIGHT SIDE MEMBER | ||
| 023 | N 913004012008 | NUT |
| ENGINE SUPPORT TO LEFT SIDE MEMBER | ||
| 026 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 026 | N 910113014000 | NUT |
| ENGINE SUPPORT TO RIGHT SIDE MEMBER | ||
| 029 | A 6982400135 | BEARING BRACKET |
| FRONT RUBBER MOUNTING | ||
| 032 | N 000961012151 | SCREW |
| BEARING BRACKET TO ENGINE CROSS MEMBER | ||
| 035 | N 913004012008 | NUT |
| BEARING BRACKET TO ENGINE CROSS MEMBER | ||
| 038 | A 3072400017 | RUBBER MOUNTING |
| FRONT | ||
| 038 | A 3072400117 | RUBBER MOUNTING |
| FRONT | ||
| 041 | N 000961012151 | SCREW |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 044 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 047 | N 000961014064 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 050 | N 912004014100 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 053 | A 6982400606 | CONSOLE |
| ENGINE REAR SUSPENSION | ||
| 056 | N 000960014110 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 059 | N 913004014002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 062 | A 6982400201 | ENGINE SUPPORT |
| TRANSVERSE | ||
| 065 | N 000960012184 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 068 | N 912004012100 | LOCK WASHER |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 071 | A 6162400618 | RUBBER MOUNTING |
| REAR LEFT | ||
| 071 | A 6162400718 | RUBBER MOUNTING |
| REAR LEFT | ||
| 071 | A 6162400818 | RUBBER MOUNTING |
| REAR LEFT | ||
| 074 | A 3002400418 | RUBBER MOUNTING |
| REAR RIGHT | ||
| 074 | A 3002400518 | RUBBER MOUNTING |
| REAR RIGHT | ||
| 074 | A 3002400618 | RUBBER MOUNTING |
| REAR RIGHT | ||
| 077 | N 000961012122 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 080 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 083 | A 3012400240 | BRACKET |
| ENGINE SHOCK ABSORBER,LEFT | ||
| 086 | A 3012400140 | BRACKET |
| ENGINE SHOCK ABSORBER, RIGHT | ||
| 089 | A 3832420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 092 | N 000960016241 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 095 | A 3019900640 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 098 | A 3012400048 | ENGINE VIBRATION ABSORBER |
| Repalced by: A 0002402348 | ||
| 098 | A 0002402348 | ENGINE VIBRATION ABSORBER |
| ENGINE REAR SUSPENSION | ||
| 101 | A 0003234385 | RUBBER MOUNTING |
| 104 | A 0002410150 | BUSHING |
| 107 | N 000125013008 | WASHER |
| 110 | N 913004012008 | NUT |
| ENGINE SHOCK ABSORBER TO SUPPORT AND TO BRACKET | ||
