Transporto priemonė: BU 5-25; VIN numerio dalis: 698300

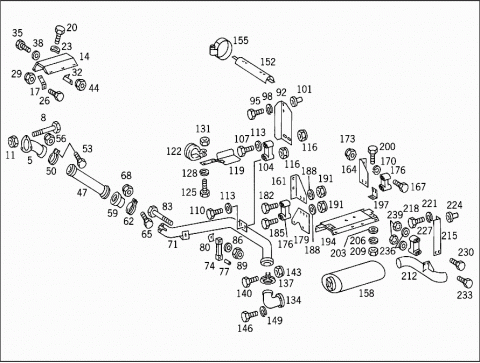

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6984901019 | EXHAUST PIPE |
| FROM TURBOCHARGER TO METAL TUBE | ||
| 008 | N 000931014019 | SCREW |
| EXHAUST PIPE TO TURBOCHARGER | ||
| M 14X45 | ||
| 008 | N 000931014017 | SCREW |
| EXHAUST PIPE TO TURBOCHARGER | ||
| M 14X50 | ||
| 011 | N 913004014008 | NUT |
| EXHAUST PIPE TO TURBOCHARGER | ||
| 014 | A 6984900030 | PROTECTIVE PLATE |
| TURBOCHARGER | ||
| 017 | A 6984920217 | ANGLE |
| PROTECTIVE PLATE,INSIDE | ||
| 020 | N 000933006121 | SCREW |
| PROTECTIVE PLATE TO ANGLE | ||
| 023 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO ANGLE | ||
| 026 | N 000933008108 | SCREW |
| Repalced by: N 304017008021 | ||
| 026 | N 304017008021 | SCREW |
| ANGLE TO EXHAUST MANIFOLD | ||
| 029 | N 913004008004 | NUT |
| ANGLE TO EXHAUST MANIFOLD | ||
| 032 | A 6984920117 | ANGLE |
| PROTECTIVE PLATE,OUTSIDE | ||
| 035 | N 000933008153 | SCREW |
| PROTECTIVE PLATE TO ANGLE | ||
| 038 | N 000125008418 | WASHER |
| PROTECTIVE PLATE TO ANGLE | ||
| 044 | N 913004008004 | NUT |
| PROTECTIVE PLATE TO ANGLE | ||
| 047 | A 6214900065 | FLEXIBLE METAL TUBE |
| FROM CONNECTOR TO EXHAUST PIPE,RIGHT | ||
| 050 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 053 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 053 | N 304017008027 | SCREW |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 056 | N 913004008004 | NUT |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 059 | A 6214920008 | COLLAR |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 062 | A 6254920040 | CLAMP |
| COLLAR TO EXHAUST PIPE | ||
| 065 | N 000933010105 | SCREW |
| COLLAR TO EXHAUST PIPE | ||
| 068 | N 913004010008 | NUT |
| COLLAR TO EXHAUST PIPE | ||
| 071 | A 6984900919 | EXHAUST PIPE |
| FRONT | ||
| 074 | A 1204920482 | DAMPING PAD |
| EXHAUST PIPE TO ENGINE MOUNTING | ||
| 077 | A 1209911140 | SPACER TUBE |
| EXHAUST PIPE TO ENGINE MOUNTING | ||
| 080 | A 1204920118 | BASE PLATE |
| EXHAUST PIPE TO ENGINE MOUNTING | ||
| 083 | N 000931008256 | SCREW |
| EXHAUST PIPE TO ENGINE MOUNTING | ||
| 086 | N 000125008418 | WASHER |
| EXHAUST PIPE TO ENGINE MOUNTING | ||
| 089 | N 913004008004 | NUT |
| EXHAUST PIPE TO ENGINE MOUNTING | ||
| 092 | A 6984921141 | BRACKET |
| DAMPING PAD,BOTTOM | ||
| 095 | N 000933008045 | SCREW |
| BRACKET TO FRAME | ||
| 098 | N 912004008102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 101 | N 913010008103 | RIVETED NUT |
| BRACKET TO FRAME | ||
| 104 | A 3054920182 | DAMPING PAD |
| LOWER EXHAUST PIPE | ||
| 107 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 107 | N 304017008042 | SCREW |
| DAMPING PAD TO BRACKET | ||
| 110 | N 000933008160 | SCREW |
| DAMPING PAD TO EXHAUST PIPE | ||
| 113 | N 000125008418 | WASHER |
| DAMPING PAD TO BRACKET | ||
| 113 | N 000125008418 | WASHER |
| DAMPING PAD TO EXHAUST PIPE | ||
| 116 | N 000934008010 | NUT |
| REAR EXHAUST PIPE REAR PART | ||
| 116 | N 000934008010 | NUT |
| DAMPING PAD TO BRACKET | ||
| 119 | A 6984900230 | PROTECTIVE PLATE |
| TRANSMISSION COOLER HEAT SHIELD | ||
| 122 | N 916016050201 | CLAMP |
| PROTECTIVE PLATE TO WATER PIPE | ||
| 125 | N 000933008147 | SCREW |
| PROTECTIVE PLATE TO WATER PIPE | ||
| 128 | N 912004008102 | LOCK WASHER |
| PROTECTIVE PLATE TO WATER PIPE | ||
| 131 | N 000934008010 | NUT |
| PROTECTIVE PLATE TO WATER PIPE | ||
| 134 | A 6984901119 | EXHAUST PIPE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 137 | A 6219970090 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 140 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 140 | N 304017008027 | SCREW |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 143 | N 913004008004 | NUT |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 146 | N 000933010105 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 149 | N 912004010102 | LOCK WASHER |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 152 | A 6984900430 | PROTECTIVE PLATE |
| TRANSMISSION COOLER HEAT SHIELD | ||
| 155 | N 916017090000 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 158 | A 6984900001 | EXHAUST MUFFLER |
| 161 | A 6984910641 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 164 | A 6984910941 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 167 | N 000933008153 | SCREW |
| BRACKET TO FRAME | ||
| 170 | N 912004008102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 173 | N 000934008010 | NUT |
| BRACKET TO FRAME | ||
| N 913010008103 | RIVETED NUT | |
| BRACKET TO FRAME | ||
| 176 | A 3054920182 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 179 | A 6984910541 | BRACKET |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 182 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 182 | N 304017008042 | SCREW |
| DAMPING PAD TO UPPER BRACKET | ||
| 185 | N 000933008161 | SCREW |
| DAMPING PAD TO LOWER BRACKET | ||
| 188 | N 000125008418 | WASHER |
| DAMPING PAD TO BRACKET | ||
| 191 | N 000934008010 | NUT |
| DAMPING PAD TO BRACKET | ||
| 194 | A 6984900330 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| 197 | A 6984921441 | BRACKET |
| HEAT SHIELD | ||
| 200 | N 000933006127 | SCREW |
| HEAT SHIELD TO BRACKET | ||
| 203 | N 000125006421 | WASHER |
| HEAT SHIELD TO BRACKET | ||
| 206 | N 912004006102 | LOCK WASHER |
| HEAT SHIELD TO BRACKET | ||
| 209 | N 000934006007 | NUT |
| HEAT SHIELD TO BRACKET | ||
| 212 | A 6984900221 | EXHAUST PIPE |
| TAIL PIPE | ||
| 215 | A 6984920941 | BRACKET |
| TAIL PIPE | ||
| 218 | N 000933008147 | SCREW |
| BRACKET TO FRAME | ||
| 221 | N 912004008102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 224 | N 913010008103 | RIVETED NUT |
| BRACKET TO FRAME | ||
| 227 | A 3054920182 | DAMPING PAD |
| TAIL PIPE | ||
| 230 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 230 | N 304017008042 | SCREW |
| DAMPING PAD TO BRACKET | ||
| 233 | N 000933008161 | SCREW |
| DAMPING PAD TO EXHAUST PIPE | ||
| 236 | N 000125008418 | WASHER |
| DAMPING PAD TO BRACKET | ||
| 236 | N 000125008418 | WASHER |
| DAMPING PAD TO EXHAUST PIPE | ||
| 239 | N 000934008010 | NUT |
| DAMPING PAD TO BRACKET | ||
| 239 | N 000934008010 | NUT |
| DAMPING PAD TO EXHAUST PIPE | ||
