Transporto priemonė: BU 5-25; VIN numerio dalis: 698300

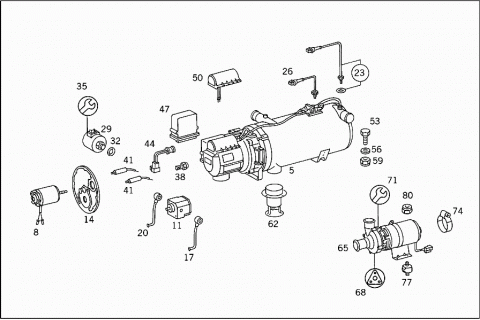

Grupė: 83 HEATING AND VENTILATION - 330 AUXILIARY WARM WATER HEATER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0008307361 | HEATER UNIT |
| BEHIND FRONT AXLE,LEFT | ||
| 008 | A 0028206042 | ELECTRIC MOTOR |
| 011 | A 0008356664 | PUMP |
| FUEL-OIL PUMP | ||
| 014 | A 0008350311 | PLATE |
| 017 | A 0008320915 | PIPE LINE |
| FEED | ||
| 020 | A 0008321015 | PIPE LINE |
| RETURN | ||
| 023 | A 0008211664 | FUSE |
| (TEMPERATURE FUSE ELEMENT) 138 DEGS. | ||
| 026 | A 0038207010 | SWITCH |
| (THERMOSTAT) | ||
| 029 | A 0008207310 | SWITCH |
| 032 | A 0008353198 | SEAL |
| 035 | A 0005860783 | REPAIR KIT |
| 038 | A 0008301054 | NOZZLE |
| 041 | A 0008351155 | IGNITION ELECTRODE |
| 044 | A 0048200510 | FLAME CONTROLLER |
| 047 | A 0008352836 | CONTROL UNIT |
| 050 | A 0008211263 | PULSE SENDER UNIT |
| 053 | N 000933008153 | SCREW |
| 056 | N 000125008418 | WASHER |
| 059 | N 913004008004 | NUT |
| 062 | A 0008304215 | PIPE LINE |
| EXHAUST | ||
| 065 | A 0008357364 | PUMP |
| Repalced by: A 0018352764 | ||
| 065 | A 0018352764 | PUMP |
| Repalced by: A 0018354564 | ||
| 065 | A 0018354564 | PUMP |
| 068 | A 0008300098 | SEAL |
| Repalced by: A 0018351764 | ||
| 068 | A 0018351764 | PUMP |
| 071 | A 0008357464 | PUMP |
| Repalced by: A 0018351664 | ||
| 071 | A 0018351664 | PUMP |
| REPAIR KIT | ||
| 074 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 074 | N 000000000675 | CLAMP |
| 80-100 MM | ||
| 077 | A 0019876340 | RUBBER BUFFER |
| 080 | N 913004008004 | NUT |

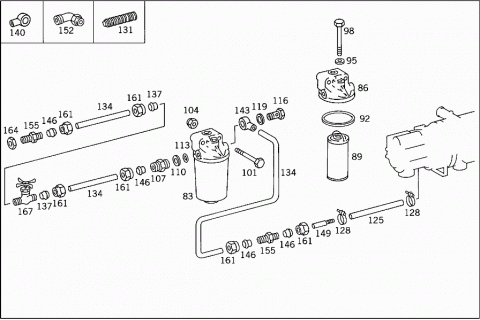

| 083 | A 0000926801 | FILTER |
| 086 | A 0000920508 | FILTER HEAD |
| 089 | A 3524700092 | FILTER ELEMENT |
| 092 | A 0004773580 | SEAL RING |
| 095 | N 007603008109 | SEAL RING |
| 098 | N 000931008326 | SCREW |
| 101 | N 000931010258 | SCREW |
| 104 | N 913004010008 | NUT |
| 107 | A 0019973072 | FITTING |
| 110 | A 0004290627 | THRUST RING |
| 113 | A 0079974245 | SEAL RING |
| 116 | N 915036010100 | HOLLOW SCREW |
| 119 | N 007603014405 | SEAL RING |
| C 14X18 | ||
| 119 | N 007603014106 | SEAL RING |
| C 14X20 | ||
| 125 | N 073379006203 | HOSE |
| FUEL | ||
| 128 | N 916002010100 | CLAMP |
| 131 | A 0005461630 | INSULATING HOSE |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FUEL-OIL PIPES | ||
| 134 | A 0004291201 | LINE |
| 8X1 MM | ||
| 137 | N 915003006208 | SEAL CONE |
| B6S | ||
| 137 | N 915003006200 | SEAL CONE |
| B6 | ||
| 140 | N 915052006021 | BANJO UNION |
| 6/14 | ||
| 143 | A 3059900088 | BANJO UNION |
| 146 | N 003861008005 | GLAND |
| S8 | ||
| 149 | N 915058006000 | FITTING |
| 6/8 | ||
| 152 | N 003952008100 | FITTING |
| Repalced by: A 0019902171 | ||
| 152 | A 0019902171 | ELBOW FITTING |
| L8 | ||
| 155 | A 6989973772 | FITTING |
| 155 | N 003910008000 | BULKHEAD FITTING |
| 161 | N 915017008100 | UNION NUT |
| AL8 | ||
| 161 | N 915017008200 | UNION NUT |
| BL8 | ||
| 164 | N 080705014002 | NUT |
| M14X1,5 | ||
| 167 | N 900121006000 | VALVE |

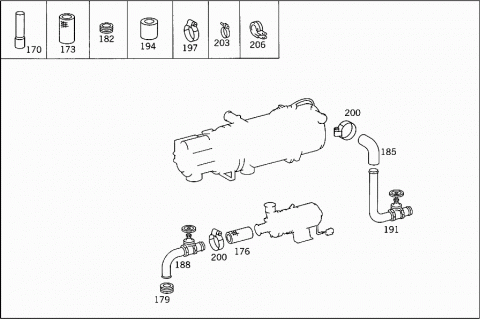

| 170 | A 1238323594 | HOSE |
| 18-22 MM | ||
| 173 | N 900271015037 | HOSE |
| 15X24X1000 MM | ||
| 173 | N 900271018038 | HOSE |
| 18X27X1000 MM | ||
| 173 | N 900271022023 | HOSE |
| 22X31X1000 MM | ||
| 173 | N 900271028026 | HOSE |
| 28X37X1000 MM | ||
| 176 | N 900271038015 | HOSE |
| 38X50X1000 MM | ||
| 179 | A 6989970081 | GROMMET |
| PASSAGE OF HEATING PIPE OF WEBASTO HEATER ACCOMMODATION BOX | ||
| 182 | A 0009972981 | GROMMET |
| 18,5-26 MM | ||
| 182 | A 0009973481 | GROMMET |
| 22-30 MM | ||
| 185 | A 3078321523 | MOLDED HOSE |
| BEHIND WEBASTO HEATER | ||
| 188 | A 6988300084 | VALVE |
| FEED,BETWEEN ENGINE AND RECIRCULATING PUMP | ||
| 191 | A 6988300284 | VALVE |
| BEHIND WEBASTO HEATER | ||
| 194 | A 3965010382 | HOSE |
| 197 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 197 | N 000000000667 | CLAMP |
| 20-32 MM | ||
| 197 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 197 | N 000000000668 | CLAMP |
| 25-40 MM | ||
| 197 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 197 | N 000000000670 | CLAMP |
| 32-50 MM | ||
| 200 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 200 | N 000000000671 | CLAMP |
| 40-60 MM | ||
| 203 | N 916002010100 | CLAMP |
| 10/9 | ||
| 206 | N 916016015200 | CLAMP |
| 15/20 | ||
| 206 | N 916016018202 | CLAMP |
| 18/20 | ||
| 206 | N 916016022202 | CLAMP |
| 22/20 | ||
| 206 | N 916016028200 | CLAMP |
| 28/20 | ||
| 206 | N 916016038205 | CLAMP |
| 38/20 | ||
