Transporto priemonė: CBC - FAHRGESTELL 2-ACHSER; VIN numerio dalis: 634220

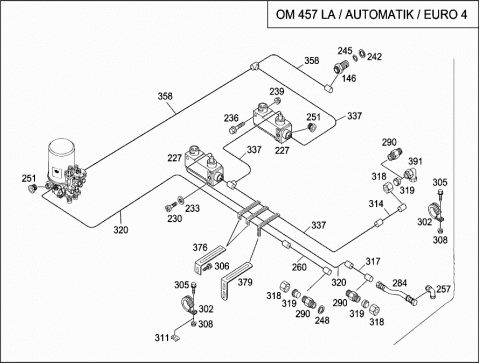

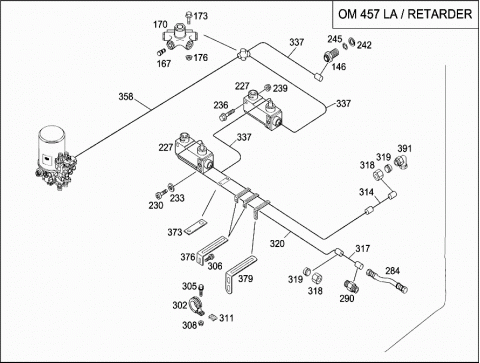

Grupė: 43 EXHAUST BRAKE - 060 ENGINE SHUT-OFF AND EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 146 | A 0119970072 | FITTING |
| M22X1,5 | ||
| 146 | A 0019973171 | FITTING |
| M22X1,5 | ||
| 167 | A 0009977935 | INTERLOCK CONNECTOR |
| 170 | A 0009902372 | DISTRIBUTOR |
| 173 | N 910105006009 | HEXAGON HEAD BOLT |
| M6X45MM | ||
| 176 | N 913023006001 | NUT |
| M6 | ||
| 227 | A 0009820217 | SOLENOID VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| 230 | A 0039908812 | SCREW |
| (3/2-WAY SOLENOID VALVE) | ||
| M6X12 TX30 | ||
| 233 | N 007603006106 | SEALING RING |
| (3/2-WAY SOLENOID VALVE) | ||
| 6X10 CU | ||
| 236 | N 910105008049 | HEXAGON HEAD BOLT |
| (3/2-WAY SOLENOID VALVE) | ||
| M8X100 | ||
| Repalced by: N 910143008012 | ||
| 236 | N 910143008012 | HEXALOBULAR BOLT |
| (3/2-WAY SOLENOID VALVE) | ||
| M8X100 | ||
| 239 | N 913023008002 | NUT |
| (3/2-WAY SOLENOID VALVE) | ||
| M8 | ||
| 242 | A 0009940203 | THRUST RING |
| (3/2-WAY SOLENOID VALVE) | ||
| 242 | A 0004290927 | THRUST RING |
| 22X16.1X2.6 | ||
| 245 | A 0009870446 | O-RING |
| (3/2-WAY SOLENOID VALVE) | ||
| 20.3X2.4 | ||
| 248 | N 007603012111 | SEALING RING |
| 12X15.5 CU | ||
| 251 | A 0009974934 | UNION SCREW |
| M10X1 | ||
| 251 | A 0009974734 | UNION SCREW |
| M16X1.5 | ||
| 257 | N 000000006197 | FITTING |
| L6 | ||
| 260 | A 6344205428 | LINE |
| 6X0.6 ST | ||
| 284 | A 0029976952 | HOSE |
| 290 | A 0009971070 | REDUCTION FITTING |
| 290 | N 000000006198 | FITTING |
| L8 | ||
| 290 | A 0019972872 | FITTING |
| L8 | ||
| 302 | N 000000003085 | CLAMP |
| RSGU 6/15 | ||
| Repalced by: N 000000007509 | ||
| 302 | N 000000007509 | CLAMP |
| RSGU 6/15 | ||
| 302 | N 000000000324 | CLAMP |
| RSGU 18/15 | ||
| 302 | A 0029953101 | CLAMP |
| RSGU S 18/15 | ||
| 302 | A 0019952842 | MOUNTING CLAMP |
| RSGU S 18/15 | ||
| 302 | N 000000007510 | CLAMP |
| RSGU 8/15 | ||
| 302 | N 000000000325 | CLAMP |
| RSGU 20/15 | ||
| Repalced by: A 0019951342 | ||
| 302 | A 0019951342 | MOUNTING CLAMP |
| RSGU 20/15 | ||
| 302 | A 0019950642 | MOUNTING CLAMP |
| RSGU 15/15 | ||
| 305 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 305 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 306 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 306 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| Repalced by: N 910143008000 | ||
| 306 | N 910143008000 | HEXALOBULAR BOLT |
| M8X16 | ||
| 306 | N 000000000276 | SCREW |
| M8X20 | ||
| 308 | N 913023005002 | NUT |
| M5 | ||
| 308 | N 913023006001 | NUT |
| M6 | ||
| 311 | A 0049941245 | NUT |
| 311 | A 0029942145 | NUT |
| 311 | A 0049941645 | SPRING NUT |
| 314 | A 6344206830 | LINE |
| 317 | A 6344205628 | LINE |
| 318 | N 915017006100 | NUT |
| AL6 | ||
| 318 | A 0019906554 | NUT |
| 319 | A 0019908867 | CUTTING RING |
| 319 | A 0019907467 | GLAND |
| BS6 | ||

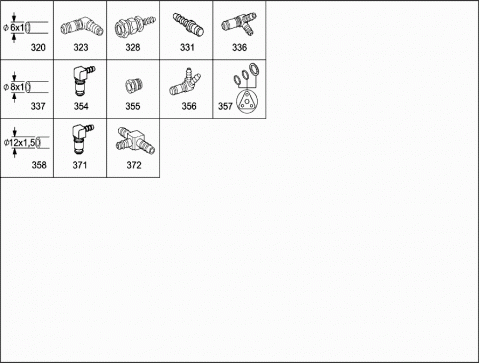

| 320 | A 0009872627 | PLASTIC PIPE |
| 6X1 | ||
| 323 | A 0049971089 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 328 | N 915059006002 | FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 331 | N 915059004001 | FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 336 | A 0029908871 | ELBOW FITTING |
| 337 | A 0009872727 | PLASTIC PIPE |
| 8X1 | ||
| 354 | A 0019907971 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| Repalced by: A 0049905371 | ||
| 354 | A 0049905371 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 354 | A 0039902971 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| Repalced by: A 0049905171 | ||
| 354 | A 0049905171 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 355 | A 0009970834 | UNION SCREW |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/ M16X1.5 | ||
| Repalced by: A 0009973734 | ||
| 355 | A 0009973734 | UNION SCREW |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/ M16X1.5 | ||
| 356 | A 0039978889 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/ 8X1 | ||
| 357 | A 0149973645 | REPAIR KIT O-RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO A 000 997 49 34 | ||
| 357 | A 0149973545 | REPAIR KIT O-RING |
| NG8 | ||
| 357 | A 0229978145 | RS O-RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO A 000 997 81 34 | ||
| 358 | A 0009872827 | PLASTIC PIPE |
| 12X1,5 | ||
| 371 | A 0029905871 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| Repalced by: A 0019908171 | ||
| 371 | A 0019908171 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 372 | A 0039904170 | T-FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 6X6X9 | ||
| 373 | A 6294311640 | BRACKET |
| 376 | A 6344281040 | BRACKET |
| 379 | A 6294340240 | BRACKET |
| 379 | A 6344327240 | BRACKET |
| 391 | A 0019902171 | ELBOW FITTING |
