Transporto priemonė: CBC - FAHRGESTELL 2-ACHSER; VIN numerio dalis: 634220

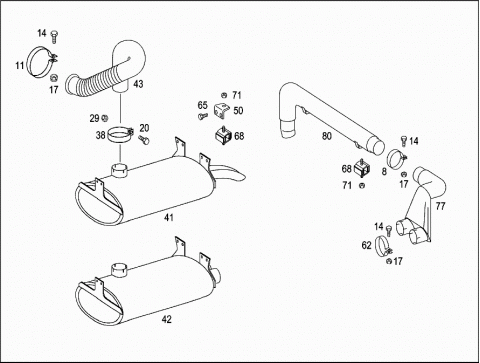

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 6294920040 | CLAMP |
| D=120 | ||
| 011 | A 9429970290 | CLAMP |
| 014 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 014 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40MM | ||
| 017 | N 913023010002 | NUT |
| M10 | ||
| 017 | N 913023008003 | NUT |
| M8 | ||
| 020 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| 020 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| Repalced by: N 910105010007 | ||
| 020 | N 910105010007 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| 029 | N 913023012002 | NUT |
| M12X1,5 | ||
| Repalced by: N 000000003276 | ||
| 029 | N 000000003276 | NUT |
| M12X1,5 | ||
| 038 | A 6294910040 | CLAMP |
| Repalced by: A 0004921240 | ||
| 038 | A 0004921240 | CLAMP |
| D=124,5 | ||
| 038 | A 6294910040 | CLAMP |
| Repalced by: A 0004921240 | ||
| 038 | A 0004921240 | CLAMP |
| Repalced by: A 6554920140 | ||
| 038 | A 6554920140 | CLAMP |
| 041 | A 6294910700 | MUFFLER |
| 042 | A 6344900301 | EXHAUST MUFFLER |
| 043 | A 6344900510 | EXHAUST PIPE |
| 050 | A 6294910041 | BRACKET |
| 062 | N 071555100501 | CLAMP |
| 100,5 MM | ||
| 065 | N 000000000276 | SCREW |
| M8X20 | ||
| 068 | A 0004910285 | RUBBER MOUNTING |
| 071 | N 910113012002 | HEXAGON NUT |
| M12 | ||
| Repalced by: N 910112010001 | ||
| 071 | N 910112010001 | NUT |
| M10 | ||
| 071 | N 910112010001 | NUT |
| M8 | ||
| 077 | A 6344900327 | END PIECE |
| 080 | A 6344900027 | END PIECE |

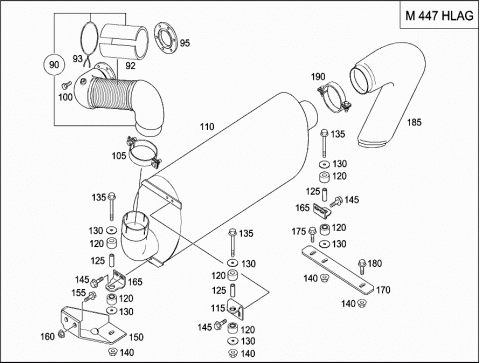

| 090 | A 6344900121 | EXHAUST PIPE |
| 092 | A 6344910083 | INSULATING MAT |
| FOR FLEXIBLE TUBE | ||
| 093 | A 0009881073 | WIRE |
| FASTENING, INSULATING MAT | ||
| 095 | A 6284920180 | FLANGE GASKET |
| 100 | A 0129900601 | SCREW |
| 105 | A 6344900541 | CLAMP |
| 110 | A 6344900114 | CATALYST |
| 115 | A 6294910215 | CONSOLE |
| 120 | A 0004920087 | BUFFER |
| 120 | A 0004920087 | BUFFER |
| 125 | A 0004910053 | SPACER TUBE |
| 130 | A 0069905640 | WASHER |
| 50X11X3MM | ||
| 130 | A 0069905640 | WASHER |
| 50X11X3MM | ||
| 135 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 140 | N 913023010002 | NUT |
| M10 | ||
| 145 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20MM | ||
| 150 | A 6344910741 | BRACKET |
| 150 | A 6344910041 | BRACKET |
| 155 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| 160 | N 913023012002 | NUT |
| M12X1,5 | ||
| Repalced by: N 000000003276 | ||
| 160 | N 000000003276 | NUT |
| M12X1,5 | ||
| 165 | A 6294910115 | CONSOLE |
| 165 | A 6294910115 | CONSOLE |
| 170 | A 6344910541 | BRACKET |
| 175 | N 910105010044 | HEXAGON HEAD BOLT |
| M10X90MM | ||
| 180 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 185 | A 6344900221 | EXHAUST PIPE |
| 190 | A 6344900641 | CLAMP |

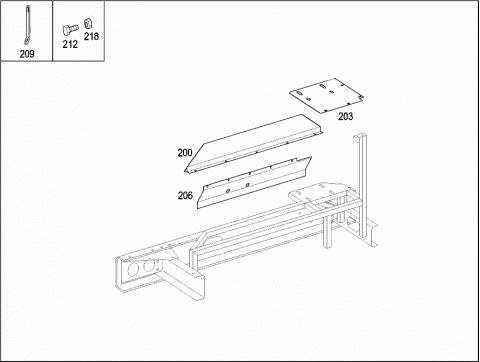

| 200 | A 6344900030 | PROTECTIVE PLATE |
| 203 | A 6344900130 | PROTECTIVE PLATE |
| 206 | A 6344900230 | PROTECTIVE PLATE |
| 209 | A 6344910641 | BRACKET |
| 212 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 212 | N 910143008000 | HEXALOBULAR BOLT |
| M8X16MM | ||
| 218 | N 913023300803 | NUT |
| M8 | ||

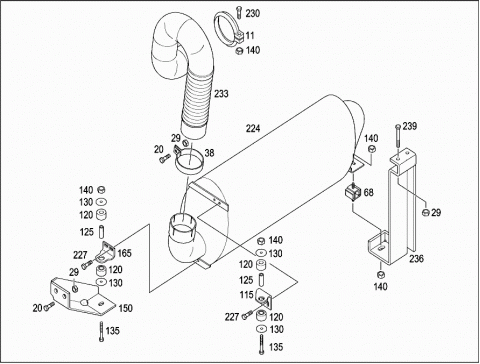

| 224 | A 6294900301 | EXHAUST MUFFLER |
| VST | ||
| 227 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 230 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 233 | A 6344900410 | EXHAUST PIPE |
| 236 | A 6344910441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 239 | N 910105012017 | HEXAGON HEAD BOLT |
| M12X1,5X70MM | ||
