Transporto priemonė: CBC-FAHRGESTELL 2-ACHSER; VIN numerio dalis: 634420

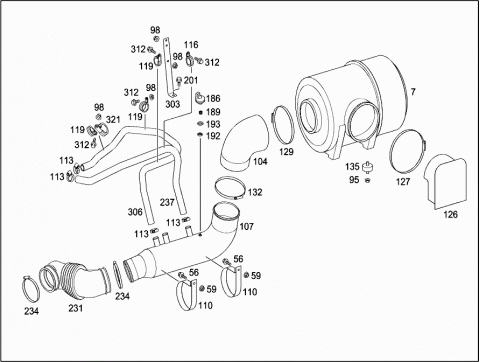

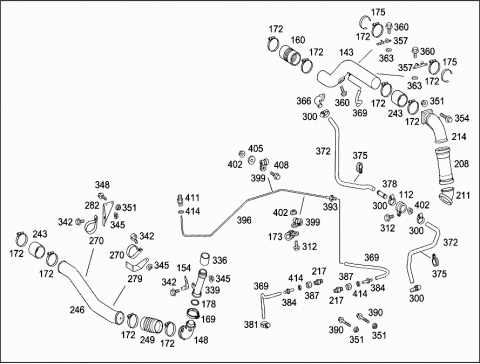

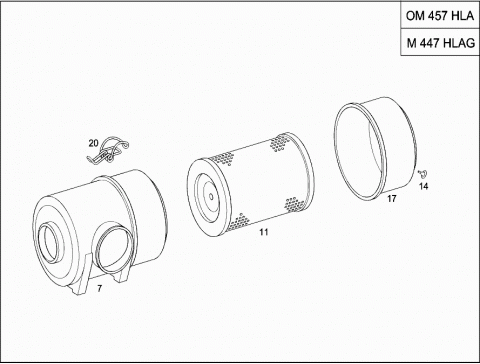

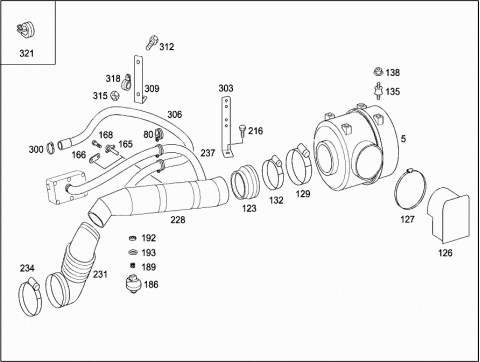

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0180944302 | AIR CLEANER |
| 007 | A 0180946202 | AIR CLEANER |
| MANN | ||
| 011 | A 0040941704 | FILTER CARTRIDGE |
| 011 | A 0040941704 | FILTER CARTRIDGE |
| 014 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 014 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 017 | A 0010943603 | FILTER BOWL |
| 017 | A 0010943603 | FILTER BOWL |
| 020 | A 0000941255 | FASTENER |
| 020 | A 0000941255 | FASTENER |
| 056 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 056 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 056 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 059 | N 913023008003 | NUT |
| M8 | ||
| 059 | N 913023008003 | NUT |
| M8 | ||
| 059 | N 913023008003 | NUT |
| M8 | ||
| 062 | A 6279850549 | "Z" SECTION |
| 555MM | ||
| 062 | A 6279850549 | "Z" SECTION |
| 555MM | ||
| 062 | A 6299850549 | "Z" SECTION |
| 720X71,5X1,5MM | ||
| 068 | A 4071540165 | COVER |
| 068 | A 4071540165 | COVER |
| 068 | A 4071540165 | COVER |
| 068 | A 4071540165 | COVER |
| 071 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| 071 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| 072 | A 0069976752 | SUCTION HOSE |
| SHORT VERSION | ||
| 1200MM | ||
| 072 | A 0029973752 | HOSE |
| SHORT VERSION | ||
| 1200MM | ||
| 072 | A 0029973752 | HOSE |
| SHORT VERSION | ||
| 1200MM | ||
| 072 | A 0029973752 | HOSE |
| SHORT VERSION | ||
| 1200MM | ||
| 072 | A 0069976752 | SUCTION HOSE |
| SHORT VERSION | ||
| 1200MM | ||
| 073 | A 0069976652 | SUCTION HOSE |
| SHORT VERSION | ||
| 1420MM | ||
| 073 | A 0029973852 | HOSE |
| SHORT VERSION | ||
| 1420MM | ||
| 073 | A 0029973852 | HOSE |
| SHORT VERSION | ||
| 1420MM | ||
| 073 | A 0029973852 | HOSE |
| SHORT VERSION | ||
| 1420MM | ||
| 074 | A 0029974052 | HOSE |
| LONG VERSION | ||
| 2500MM | ||
| 074 | A 0029974052 | HOSE |
| LONG VERSION | ||
| 2500MM | ||
| 077 | A 6345045040 | BRACKET |
| 077 | A 6345045040 | BRACKET |
| 077 | A 6345045040 | BRACKET |
| 080 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 080 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 080 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 080 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 080 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 080 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 080 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 083 | A 6345280540 | BRACKET |
| 083 | A 6345280540 | BRACKET |
| 083 | A 6345280540 | BRACKET |
| 086 | A 0005280001 | PROTECTIVE GRILLE |
| AIR INTAKE TO ALTERNATOR | ||
| 086 | A 0005280001 | PROTECTIVE GRILLE |
| AIR INTAKE TO ALTERNATOR | ||
| 086 | A 0005280001 | PROTECTIVE GRILLE |
| AIR INTAKE TO ALTERNATOR | ||
| 086 | A 0005280001 | PROTECTIVE GRILLE |
| AIR INTAKE TO ALTERNATOR | ||
| 089 | N 000000003186 | CLAMP |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| 089 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 089 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 092 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 092 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 092 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 092 | N 000000005515 | HEXAGON HEAD BOLT |
| M14X1.5X25 | ||
| 093 | N 000000003398 | WASHER |
| 095 | N 913023010002 | NUT |
| M10 | ||
| 095 | N 913023010002 | NUT |
| M10 | ||
| 095 | N 913023010002 | NUT |
| M10 | ||
| 095 | N 913023010002 | NUT |
| M10 | ||
| 098 | N 913023006002 | NUT |
| M6 | ||
| 098 | N 913023006002 | NUT |
| M6 | ||
| 098 | N 913023006002 | NUT |
| M6 | ||
| 101 | A 0029972490 | CABLE TIE |
| 104 | A 6285281082 | HOSE |
| 107 | A 6345202101 | AIR INTAKE PIPE |
| 110 | A 0005280043 | CLAMP |
| 112 | N 000000000329 | CLAMP |
| 28/15MM | ||
| 113 | N 000000000667 | CLAMP |
| 20-32X12MM | ||
| 116 | N 000000004043 | CLAMP |
| 32/15MM | ||
| 119 | N 000000000329 | CLAMP |
| 28/15MM | ||
| 123 | A 0029970452 | HOSE |
| 126 | A 6345280404 | SCOOP |
| 126 | A 6345280404 | SCOOP |
| 127 | N 000000002136 | CLAMP |
| 180-200X12MM | ||
| 127 | N 000000002136 | CLAMP |
| 180-200X12MM | ||
| 129 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 129 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 132 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| 132 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 132 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 135 | A 0005280185 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| M10X50X20 | ||
| 135 | A 0005280185 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| M10X50X20 | ||
| 138 | N 913023010002 | NUT |
| ATTACHMENT,AIR FILTER | ||
| M10 | ||
| 143 | A 6345201601 | AIR INTAKE PIPE |
| 148 | A 4570986507 | CHARGING AIR LINE |
| 154 | A 6345281040 | BRACKET |
| 160 | A 0249970382 | HOSE |
| 100X190MM | ||
| 162 | N 913023008003 | NUT |
| M8 | ||
| 165 | A 0051536528 | TEMPERATURE SENSOR |
| Repalced by: A 0071530128 | ||
| 165 | A 0071530128 | TEMPERATURE SENSOR |
| Repalced by: A 0071531128 | ||
| 165 | A 0071531128 | TEMPERATURE SENSOR |
| 166 | A 6345240131 | BASE PLATE |
| 168 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| Repalced by: N 910105006007 | ||
| 168 | N 910105006007 | HEXAGON HEAD BOLT |
| M6X10 | ||
| 169 | A 0019955565 | CLAMP |
| 172 | A 3849977390 | CLAMP |
| 69,8-92,1X15,9MM | ||
| 172 | A 0059970690 | CLAMP |
| 95-117X15,8MM | ||
| 172 | A 0019950710 | HOSE CLAMP |
| 108-110X17MM | ||
| 173 | N 000000000320 | CLAMP |
| 10/15MM | ||
| 175 | A 6295040184 | SHIM |
| 178 | A 0269973848 | SEAL RING |
| 186 | A 0135422917 | CONTACT SENSOR |
| 186 | A 0135422917 | CONTACT SENSOR |
| 189 | A 0000940276 | FELT WASHER |
| 189 | A 0000940276 | FELT WASHER |
| 192 | A 0004291127 | THRUST RING |
| 14X10X2.6MM | ||
| 192 | A 0004291127 | THRUST RING |
| 14X10X2.6MM | ||
| 193 | A 0269970248 | O-RING |
| 193 | A 0269970248 | O-RING |
| 201 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 201 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 208 | A 6285200086 | HOSE |
| 211 | A 6345201401 | AIR INTAKE PIPE |
| 214 | A 6345202401 | AIR INTAKE PIPE |
| 216 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 217 | A 0019972572 | FITTING |
| 228 | A 6345202901 | AIR INTAKE PIPE |
| 231 | A 6285280382 | HOSE |
| 231 | A 6285280382 | HOSE |
| 234 | N 000000000645 | CLAMP |
| 90-110X12MM | ||
| 234 | N 000000000645 | CLAMP |
| 90-110X12MM | ||
| 237 | A 0029977052 | HOSE |
| 920MM | ||
| 237 | A 0029977052 | HOSE |
| 920MM | ||
| 240 | A 0059970690 | CLAMP |
| Repalced by: A 0019950710 | ||
| 240 | A 0019950710 | HOSE CLAMP |
| 240 | A 0019950710 | HOSE CLAMP |
| 243 | A 0020946982 | HOSE |
| 243 | A 0020946982 | HOSE |
| 246 | A 6345283708 | AIR INTAKE PIPE |
| 246 | A 6345283708 | AIR INTAKE PIPE |
| 246 | A 6345285708 | CHARGE AIR PIPE |
| 249 | A 0020946382 | CHARGE AIR HOSE |
| 249 | A 0020946382 | CHARGE AIR HOSE |
| 252 | A 4570981307 | CHARGING AIR LINE |
| Repalced by: A 4570986507 | ||
| 252 | A 4570986507 | CHARGING AIR LINE |
| 255 | A 0019955565 | CLAMP |
| 258 | A 0269973848 | SEAL RING |
| 261 | A 6345202801 | AIR INTAKE PIPE |
| 264 | A 6345281240 | BRACKET |
| 264 | A 6345282240 | BRACKET |
| 267 | N 910105010002 | HEXAGON HEAD BOLT |
| M10X50 | ||
| 270 | A 6295040233 | FASTENING CLAMP |
| 100MM | ||
| 270 | A 6295040233 | FASTENING CLAMP |
| 100MM | ||
| 273 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 276 | N 913023010002 | NUT |
| M10 | ||
| 279 | A 6345010470 | BRACKET |
| 279 | A 6345010470 | BRACKET |
| 282 | A 6345040541 | BRACKET |
| 282 | A 6345040541 | BRACKET |
| 283 | A 6345282040 | BRACKET |
| 284 | A 6345282140 | BRACKET |
| 285 | A 6345283608 | AIR INTAKE PIPE |
| 288 | A 0020945482 | CHARGE AIR HOSE |
| 291 | A 6345000288 | LINE |
| 294 | A 4570980080 | GASKET |
| CHARGE AIR LINE TO INTAKE MANIFOLD | ||
| 297 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 300 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 300 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 303 | A 6345280840 | BRACKET |
| 303 | A 6345280840 | BRACKET |
| 306 | A 0029975852 | HOSE |
| 1600MM | ||
| 306 | A 0029975852 | HOSE |
| 1600MM | ||
| 309 | A 6295280240 | BRACKET |
| 312 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 312 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 315 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 318 | N 916016028202 | CLAMP |
| 28/15MM | ||
| Repalced by: N 000000000329 | ||
| 318 | N 000000000329 | CLAMP |
| 28/15MM | ||
| 318 | N 916016028204 | CLAMP |
| 28/15MM | ||
| 321 | N 916016038201 | CLAMP |
| 38/20MM | ||
| Repalced by: N 000000000350 | ||
| 321 | N 000000000350 | CLAMP |
| 38/20MM | ||
| 321 | N 000000000350 | CLAMP |
| 38/20MM | ||
| 324 | A 0079899071 | SEALING CEMENT |
| 225G | ||
| 336 | A 4760947082 | HOSE |
| Repalced by: A 4470940082 | ||
| 336 | A 4470940082 | CHARGE AIR HOSE |
| 339 | A 6345204001 | CHARGE AIR GUIDE |
| 342 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 345 | N 913023010002 | NUT |
| M10 | ||
| 348 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 351 | N 913023008003 | NUT |
| M8 | ||
| 354 | N 910105008038 | HEXAGON HEAD BOLT |
| M8X50 | ||
| 357 | A 6295010070 | BRACKET |
| 360 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 363 | N 000000003250 | WASHER |
| 366 | A 6285200247 | FLANGE |
| 369 | A 0005280282 | HOSE |
| 372 | A 0029977052 | HOSE |
| 28MM | ||
| 375 | N 000000004043 | CLAMP |
| 32/15MM | ||
| 378 | A 6345284309 | PIPE |
| 381 | N 000000000754 | CLAMP |
| 10-16X9MM | ||
| 384 | A 0059902470 | T-FITTING |
| 387 | N 000000006236 | NUT |
| AL8 | ||
| 390 | N 910105008078 | HEXAGON HEAD BOLT |
| M8X90 | ||
| 393 | A 0059904070 | T-FITTING |
| 396 | A 6344200033 | LINE |
| 399 | N 000000003085 | CLAMP |
| 6/15MM | ||
| Repalced by: N 000000007509 | ||
| 399 | N 000000007509 | CLAMP |
| 6/15MM | ||
| 402 | N 913023006002 | NUT |
| M6 | ||
| 405 | N 000000003260 | WASHER |
| 408 | N 910105006005 | HEXAGON HEAD BOLT |
| M6X30 | ||
| 411 | A 0019972872 | FITTING |
| 414 | N 007603012111 | SEALING RING |
| 12X15.5-CU | ||
