Transporto priemonė: CBC-FAHRGESTELL 2-ACHSER; VIN numerio dalis: 634420

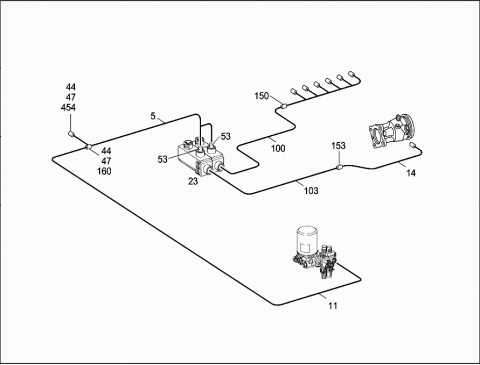

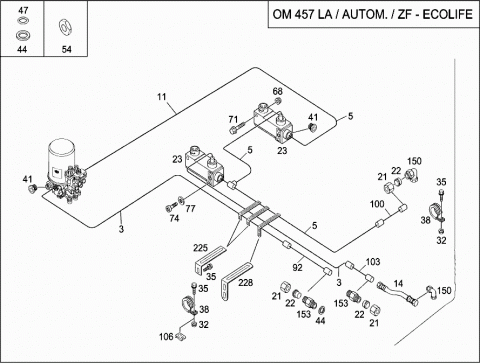

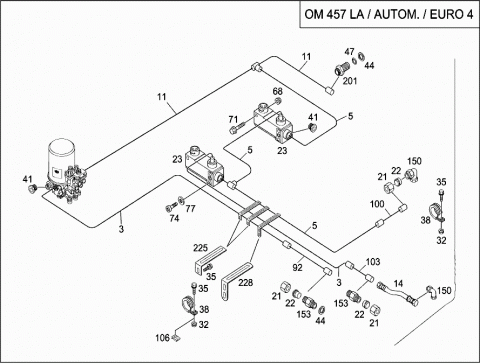

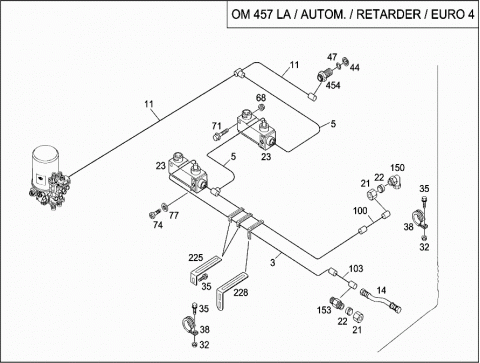

Grupė: 43 EXHAUST BRAKE - 060 ENGINE SHUT-OFF AND EXHAUST BRAKE

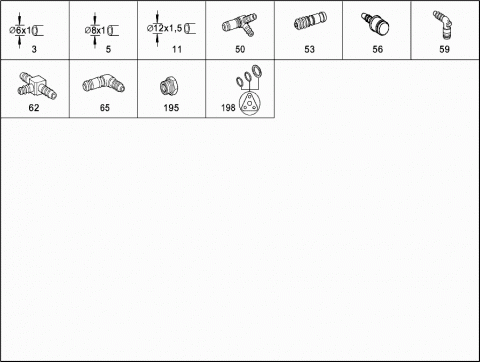

| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0009872627 | PLASTIC PIPE |
| 6X1 | ||
| 005 | A 0009872727 | PLASTIC PIPE |
| 8X1 | ||
| 011 | A 0009872827 | PLASTIC PIPE |
| 12X1,5 | ||
| 014 | A 0029976952 | HOSE |
| DN4 | ||
| 021 | A 0019906554 | NUT |
| M14X1,5/AL8 | ||
| 021 | N 915017006100 | NUT |
| AL6 | ||
| 022 | A 0019908867 | CUTTING RING |
| BS8 | ||
| 022 | A 0019907467 | GLAND |
| BS6 | ||
| 023 | A 0049975536 | SOLENOID VALVE |
| 3/2 | ||
| Repalced by: A 0059971236 | ||
| 023 | A 0059971236 | VALVE |
| 3/2 | ||
| Repalced by: A 0009820217 | ||
| 023 | A 0009820217 | SOLENOID VALVE |
| 3/2 | ||
| Repalced by: A 0009975112 | ||
| 023 | A 0009975112 | 3-2-WAY PNEUMATIC VALVE |
| 3/2 | ||
| 032 | N 913023006001 | NUT |
| M6 | ||
| 032 | N 913023006001 | NUT |
| M6 | ||
| 035 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 035 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| Repalced by: N 000000003765 | ||
| 035 | N 000000003765 | HEXALOBULAR BOLT |
| M6X20 | ||
| 035 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| Repalced by: N 910143008000 | ||
| 035 | N 910143008000 | HEXALOBULAR BOLT |
| M8X16 | ||
| 035 | N 000000000276 | SCREW |
| M8X20 | ||
| 035 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| Repalced by: N 910143008003 | ||
| 035 | N 910143008003 | HEXALOBULAR BOLT |
| M8X30 | ||
| 035 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 038 | N 000000000319 | CLAMP |
| RSGU 8/15 | ||
| Repalced by: N 000000007510 | ||
| 038 | N 000000007510 | CLAMP |
| RSGU 8/15 | ||
| 038 | N 000000003085 | CLAMP |
| RSGU 6/15 | ||
| Repalced by: N 000000007509 | ||
| 038 | N 000000007509 | CLAMP |
| RSGU 6/15 | ||
| 038 | N 916016020201 | CLAMP |
| 20/15 | ||
| Repalced by: N 000000000325 | ||
| 038 | N 000000000325 | CLAMP |
| RSGU 20/15 | ||
| Repalced by: A 0019951342 | ||
| 038 | A 0019951342 | MOUNTING CLAMP |
| RSGU 20/15 | ||
| 038 | N 916016018201 | CLAMP |
| 18/15 | ||
| Repalced by: N 000000000324 | ||
| 038 | N 000000000324 | CLAMP |
| RSGU 18/15 | ||
| Repalced by: A 0019951042 | ||
| 038 | A 0019951042 | MOUNTING CLAMP |
| RSGU 18/15 | ||
| 038 | A 0029953101 | CLAMP |
| RSGU S 18/15 | ||
| 041 | A 0009975034 | UNION SCREW |
| NG6/M10X1 | ||
| 041 | A 0009974734 | SCREW |
| M16X1.5/NG8 | ||
| 044 | A 0004290927 | THRUST RING |
| 22MM | ||
| 044 | A 0009940203 | THRUST RING |
| 29X22.1X2.6 | ||
| 044 | N 007603012111 | SEALING RING |
| 12X15.5-C | ||
| 047 | A 0009870446 | O-RING |
| RETARDER | ||
| 20.3X2.4 | ||
| 047 | A 0009870446 | O-RING |
| RETARDER | ||
| 20.3X2.4 | ||
| 050 | A 0039978889 | CONNECTOR |
| NG8/8X1 | ||
| 053 | A 0039975489 | CONNECTION PIECE |
| NG12/16X2 | ||
| 053 | A 0039975489 | CONNECTION PIECE |
| NG12/16X2 | ||
| 054 | N 080705022001 | NUT |
| M22X1,5-14H | ||
| 056 | N 915059004001 | FITTING |
| 6 | ||
| 056 | N 915059006002 | FITTING |
| 8 | ||
| 056 | A 0019972871 | FITTING |
| NG12/M16X1.5 VOSS | ||
| 059 | A 0049971089 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG6/6X1 | ||
| 059 | A 0039979689 | COUPLER PLUG |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| Repalced by: A 0039976889 | ||
| 059 | A 0039976889 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| 059 | A 0039979689 | COUPLER PLUG |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| Repalced by: A 0039976889 | ||
| 059 | A 0039976889 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| 062 | A 0039904170 | T-FITTING |
| 065 | A 0039976689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| Repalced by: A 0059972689 | ||
| 065 | A 0059972689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| 065 | A 0049971089 | ELBOW FITTING |
| 6X1 | ||
| 065 | A 0049974689 | ELBOW FITTING |
| NG8/12X1.5 | ||
| 065 | A 0039977189 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/16X2 | ||
| 065 | A 0039977189 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/16X2 | ||
| 068 | N 913023008002 | NUT |
| M8 | ||
| 071 | N 910105008049 | HEXAGON HEAD BOLT |
| M8X100 | ||
| Repalced by: N 910143008012 | ||
| 071 | N 910143008012 | HEXALOBULAR BOLT |
| M8X100 | ||
| 074 | A 0039908812 | SCREW |
| M6X12 TX30 | ||
| 077 | N 007603006106 | SEALING RING |
| 6X10 | ||
| 092 | A 6344205428 | LINE |
| D=6 | ||
| 100 | A 6344206830 | LINE |
| 103 | A 6344205628 | LINE |
| 106 | A 0049941645 | SPRING NUT |
| M6 | ||
| 150 | N 000000006198 | FITTING |
| 150 | N 000000006197 | FITTING |
| L 6 | ||
| 153 | A 0029975672 | FITTING |
| M14X1.5/M12X1.5 | ||
| 153 | A 0019972872 | FITTING |
| M12X1.5 | ||
| Repalced by: A 0039979072 | ||
| 153 | A 0039979072 | FITTING |
| M12X1.5 | ||
| 160 | A 0009970467 | T-FITTING |
| M22X1.5/NG12/NG12 | ||
| 195 | A 0009974834 | UNION SCREW |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/M22X1.5 | ||
| Repalced by: A 0009978134 | ||
| 195 | A 0009978134 | RETAINING SCREW |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/M22X1.5 | ||
| 198 | A 0149973445 | REPAIR KIT O-RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO A 000 997 48 34 | ||
| Repalced by: A 0229978145 | ||
| 198 | A 0229978145 | RS O-RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO A 000 997 81 34 | ||
| 198 | A 0149973545 | REPAIR KIT O-RING |
| NG8 | ||
| 198 | A 0149973645 | REPAIR KIT O-RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO A 000 997 49 34 | ||
| 201 | A 0019973171 | FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/M22X1.5 | ||
| 225 | A 6344281040 | BRACKET |
| 228 | A 6344327240 | BRACKET |
| 228 | A 6294340240 | BRACKET |
| 454 | A 0019973171 | FITTING |
| NG12/M22X1.5 | ||
