Transporto priemonė: CBC-FAHRGESTELL 2-ACHSER; VIN numerio dalis: 634420

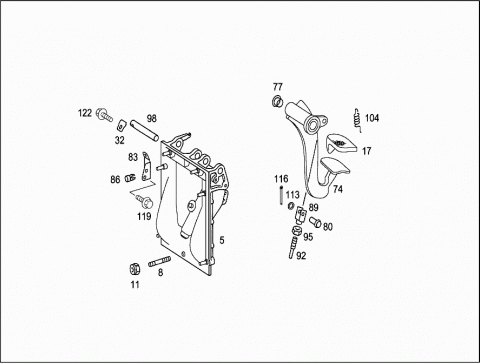

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6342900419 | PEDAL BRACKET |
| 008 | A 6732940270 | STUD |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 011 | N 913023008003 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 017 | A 1102910182 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 032 | A 6732920073 | LOCK |
| 074 | A 6342900118 | PEDAL |
| BRAKE | ||
| 077 | A 1102910550 | BUSHING |
| BRAKE PEDAL TO PIVOT PIN | ||
| 080 | A 3852920174 | PIN |
| BRAKE PEDAL TO ROD | ||
| 083 | A 6732920030 | STOP |
| BRAKE PEDAL | ||
| 086 | A 1232910286 | STOP |
| BRAKE PEDAL | ||
| 089 | N 071752008002 | YOKE |
| BRAKE ACTUATION | ||
| 092 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 095 | N 304032008006 | NUT |
| YOKE TO ROD | ||
| 095 | N 000439008104 | NUT |
| YOKE TO ROD | ||
| M8 | ||
| 098 | A 6732940174 | PIN |
| 104 | A 6739930110 | SPRING |
| BRAKE PEDAL RESET | ||
| 113 | N 000433008403 | WASHER |
| 116 | N 000094002059 | COTTER PIN |
| 2X14MM | ||
| Repalced by: N 000094002060 | ||
| 116 | N 000094002060 | COTTER PIN |
| 2X14MM | ||
| 119 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 122 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 122 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
