Transporto priemonė: CITARO 12M 2-TUERER; VIN numerio dalis: 628031

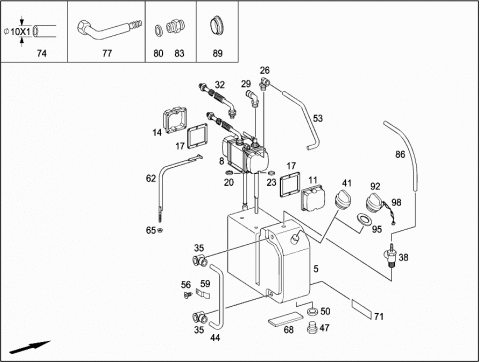

Grupė: 48 OIL TANK
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6284801401 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| GROENEVELD | ||
| 005 | A 6284801401 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| GROENEVELD | ||
| 008 | A 6285400745 | CONTROL UNIT |
| 008 | A 6285400745 | CONTROL UNIT |
| 011 | A 0004810011 | COVER |
| BLACK | ||
| 011 | A 0004810011 | COVER |
| BLACK | ||
| 014 | A 0004810111 | COVER |
| TRANSPARENT | ||
| 014 | A 0004810111 | COVER |
| TRANSPARENT | ||
| 017 | A 0179970145 | FULL FACE GASKET |
| 017 | A 0179970145 | FULL FACE GASKET |
| 020 | A 0179972645 | SEAL RING |
| 22.2X3.5 | ||
| 020 | A 0179972645 | SEAL RING |
| 22.2X3.5 | ||
| 023 | A 0179972545 | SEAL RING |
| 17X3 | ||
| 023 | A 0179972545 | SEAL RING |
| 17X3 | ||
| 026 | A 0279970182 | BANJO UNION |
| 026 | A 0279970182 | BANJO UNION |
| 029 | A 0029976071 | ELBOW FITTING |
| DIA., | ||
| 10MM | ||
| 029 | A 0029976071 | ELBOW FITTING |
| DIA., | ||
| 10MM | ||
| 032 | A 0035401505 | CABLE HARNESS |
| 032 | A 0035401505 | CABLE HARNESS |
| 035 | A 6284800025 | ELBOW FITTING |
| 035 | A 6284800025 | ELBOW FITTING |
| 038 | A 6284800125 | ELBOW FITTING |
| 038 | A 6284800125 | ELBOW FITTING |
| 041 | A 0000180702 | FILLER CAP |
| LESS BREATHING | ||
| 041 | A 0000180702 | FILLER CAP |
| LESS BREATHING | ||
| 044 | A 0109976482 | PLASTIC PIPE |
| 10X1MM | ||
| 044 | A 0109976482 | PLASTIC PIPE |
| 10X1MM | ||
| 047 | N 007604018109 | SCREW PLUG, FILLING |
| AT OIL TANK | ||
| M18X1.5 | ||
| 047 | N 007604018109 | SCREW PLUG, FILLING |
| AT OIL TANK | ||
| M18X1.5 | ||
| 050 | N 007603018104 | SEALING RING |
| AT OIL TANK | ||
| 18X24-CU | ||
| 050 | N 007603018104 | SEALING RING |
| AT OIL TANK | ||
| 18X24-CU | ||
| 053 | A 0109976982 | PLASTIC PIPE |
| 8X1MM | ||
| 053 | A 0109976982 | PLASTIC PIPE |
| 8X1MM | ||
| 056 | N 000912004016 | SCREW |
| M4X8 | ||
| 056 | N 000912004016 | SCREW |
| M4X8 | ||
| 059 | A 6284811740 | BRACKET |
| 059 | A 6284811740 | BRACKET |
| 062 | A 6284800021 | STRAP |
| 062 | A 6284800021 | STRAP |
| 065 | N 913023010002 | NUT |
| M10 | ||
| 065 | N 913023010002 | NUT |
| M10 | ||
| 068 | A 6284811082 | ELASTOMER BEARING |
| SELF-ADHESIVE ON ONE SIDE | ||
| 071 | A 6124750318 | ELASTIC BAND |
| 071 | A 6124750318 | ELASTIC BAND |
| 074 | A 0019970652 | PLASTIC PIPE |
| 10X1MM | ||
| 074 | A 0019970652 | PLASTIC PIPE |
| 10X1MM | ||
| 077 | A 0004760524 | ELBOW FITTING |
| 10X1MM | ||
| 077 | A 0004760524 | ELBOW FITTING |
| 10X1MM | ||
| 080 | N 007603018101 | SEALING RING |
| 18X22 -CU | ||
| 080 | N 007603018101 | SEALING RING |
| 18X22 -CU | ||
| 083 | N 000000006152 | FITTING |
| A10-M18X1.5 | ||
| 083 | N 000000006152 | FITTING |
| A10-M18X1.5 | ||
| 086 | A 0009872627 | PLASTIC PIPE |
| 086 | A 0009872627 | PLASTIC PIPE |
| 089 | A 0009973735 | PLUG |
| 092 | A 0000181102 | CAP |
| 095 | A 0000180180 | GASKET |
| 098 | A 6285050009 | BEAD CHAIN |
