Transporto priemonė: CITARO 12M 2-TUERER; VIN numerio dalis: 628037
Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6285202602 | AIR INTAKE BOX |
| 006 | A 6286820209 | INSULATION |
| BARIUM SULFATE MAT | ||
| 1000X1000X3,5MM | ||
| 007 | A 6286820009 | INSULATION |
| POLYETHER FOAM, SELF-ADHESIVE ON ONE SIDE | ||
| 1700X1100X10MM | ||
| 008 | A 6286820804 | INSULATION |
| BARIUM SULFATE MAT | ||
| 1000X1000X13MM | ||
| 009 | A 6285289141 | BRACKET |
| 010 | A 6285200802 | AIR INTAKE CASE |
| 011 | A 6285280606 | AIR CLEANER |
| 012 | A 6285280071 | PIN |
| 013 | A 6285280210 | COVER |
| 015 | A 6285280132 | BREATHER PIPE |
| 020 | A 6285280908 | AIR INTAKE PIPE |
| 024 | A 6285287308 | AIR INTAKE PIPE |
| 025 | A 6285287208 | AIR INTAKE PIPE |
| 026 | A 6285280610 | COVER |
| 027 | A 0169979548 | SEAL RING |
| 030 | A 6285285908 | AIR INTAKE PIPE |
| 035 | A 6285280224 | CLEAN AIR LINE |
| 040 | A 6285282382 | HOSE |
| 045 | A 6285282482 | HOSE |
| 050 | A 6285283382 | HOSE |
| 055 | A 6285280482 | HOSE |
| 059 | A 6285280382 | HOSE |
| 060 | A 0005010382 | HOSE |
| 065 | A 6289970582 | HOSE |
| 069 | A 6665280182 | HOSE |
| 28X340MM | ||
| 070 | A 6285284782 | INTAKE HOSE |
| 074 | A 6285281782 | HOSE |
| 075 | A 6665280082 | HOSE |
| 080 | A 9061340382 | HOSE |
| 084 | A 6289970352 | HOSE |
| 085 | A 6289970252 | HOSE |
| 090 | A 6285283641 | BRACKET |
| 095 | A 6285200941 | BRACKET |
| 097 | A 6286950066 | CLAMPING PIECE |
| 099 | A 6285281441 | BRACKET |
| 100 | A 6285280941 | BRACKET |
| 105 | A 6285200641 | BRACKET |
| 110 | A 6285281041 | BRACKET |
| 115 | A 6285282241 | BRACKET |
| 120 | A 6285283441 | BRACKET |
| 124 | A 6285203902 | RESONATOR |
| 125 | A 6285203802 | RESONATOR |
| 130 | A 6285280514 | RESONATOR |
| 135 | A 0029872840 | RUBBER BUFFER |
| M10 | ||
| 140 | A 3225040212 | RUBBER MOUNTING |
| M8 | ||
| 140 | A 3225040212 | RUBBER MOUNTING |
| M8 | ||
| 140 | A 3225040212 | RUBBER MOUNTING |
| M8 | ||
| 150 | A 0005280485 | RUBBER MOUNTING |
| M8 | ||
| 155 | A 0000945368 | MAINTENANCE INDICATOR |
| 165 | N 915036006101 | BANJO BOLT |
| A6 | ||
| 166 | N 915052004003 | BANJO UNION |
| 4/10MM | ||
| 167 | N 007603010110 | SEALING RING |
| A10X13.5-CU | ||
| 170 | A 6285280080 | GASKET |
| 171 | A 0071531128 | TEMPERATURE SENSOR |
| 172 | A 1029970045 | SEAL RING |
| 175 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 177 | A 0059970690 | CLAMP |
| 95-117MM | ||
| 177 | A 0059970690 | CLAMP |
| 95-117MM | ||
| 177 | A 0059970690 | CLAMP |
| 95-117MM | ||
| 179 | A 0059970690 | CLAMP |
| 95-117MM | ||
| 180 | N 000000000677 | CLAMP |
| 120-140X12MM | ||
| 182 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 184 | N 000000000681 | CLAMP |
| 160-180X12MM | ||
| 186 | N 000000001992 | CLAMP |
| 200-220X12MM | ||
| 189 | N 000000005972 | CLAMP |
| 15/15MM | ||
| Repalced by: A 0019950642 | ||
| 189 | A 0019950642 | MOUNTING CLAMP |
| 15/15MM | ||
| 190 | N 000000005974 | CLAMP |
| 25/20MM | ||
| Repalced by: N 000000007536 | ||
| 190 | N 000000007536 | CLAMP |
| 25/20MM | ||
| 191 | N 000000006228 | CLAMP |
| 28/20MM | ||
| Repalced by: N 000000007537 | ||
| 191 | N 000000007537 | CLAMP |
| 28/20MM | ||
| 192 | N 000000004043 | CLAMP |
| 32/15MM | ||
| Repalced by: A 0019952042 | ||
| 192 | A 0019952042 | MOUNTING CLAMP |
| 32/15MM | ||
| 193 | N 000000000348 | CLAMP |
| 32/20MM | ||
| Repalced by: N 000000007538 | ||
| 193 | N 000000007538 | CLAMP |
| 32/20MM | ||
| 193 | N 000000000326 | CLAMP |
| 22/15MM | ||
| Repalced by: A 0019951442 | ||
| 193 | A 0019951442 | MOUNTING CLAMP |
| 22/15MM | ||
| 194 | N 000000000350 | CLAMP |
| 38/20MM | ||
| Repalced by: N 000000007515 | ||
| 194 | N 000000007515 | CLAMP |
| 38/20MM | ||
| 195 | N 000000004045 | CLAMP |
| 50/20MM | ||
| Repalced by: N 000000007519 | ||
| 195 | N 000000007519 | CLAMP |
| 50/20MM | ||
| 200 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 202 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 205 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| 210 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 210 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 215 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 215 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 215 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 218 | N 910105008043 | HEXAGON HEAD BOLT |
| M8X80 | ||
| 219 | N 913023006002 | NUT |
| M6 | ||
| 220 | N 910112008000 | NUT |
| M8 | ||
| 220 | N 910112008000 | NUT |
| M8 | ||
| 220 | N 910112008000 | NUT |
| M8 | ||
| 225 | N 913023008003 | NUT |
| M8 | ||
| 225 | N 913023008003 | NUT |
| M8 | ||
| 225 | N 913023008003 | NUT |
| M8 | ||
| 228 | N 910112010001 | NUT |
| M10 | ||
| 228 | N 910112010001 | NUT |
| M10 | ||
| 228 | N 910112010001 | NUT |
| M10 | ||
| 230 | N 001481003001 | ROLL PIN |
| 3X14MM | ||
| 251 | A 6285280204 | COLD-AIR SCOOP |
| 257 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 260 | N 913024006100 | RIVET NUT |
| M6X14,5MM | ||
| 263 | A 0029873852 | RUBBER SEAL |
| 266 | A 0069898085 | SEALING TAPE |
| 269 | A 6285200486 | HOSE ASSEMBLY |
| 272 | A 6285200586 | HOSE ASSEMBLY |
| 275 | N 000000000673 | CLAMP |
| 60-80X12MM | ||
| 278 | A 6289950042 | MOUNTING CLAMP |
| 65/20MM | ||
| Repalced by: A 0019952742 | ||
| 278 | A 0019952742 | MOUNTING CLAMP |
| 65/20MM | ||
| 281 | N 913023006002 | NUT |
| M6 | ||
| 284 | A 6285287341 | BRACKET |
| 287 | A 6285287441 | BRACKET |
| 290 | A 6285285341 | BRACKET |
| 293 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 296 | N 913023008003 | NUT |
| M8 | ||
| 299 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||

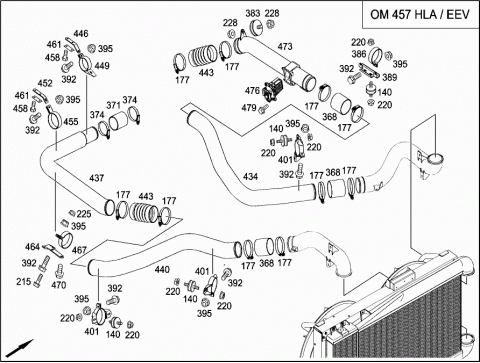

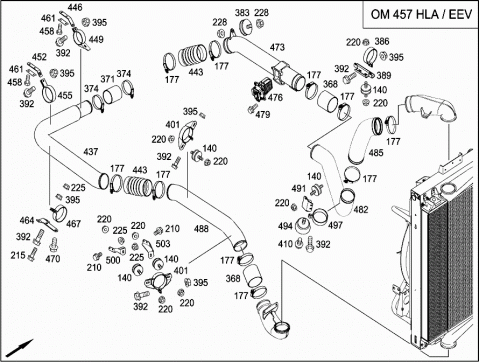

| 350 | A 6285283208 | CHARGING AIR PIPE |
| 350 | A 6285283208 | CHARGING AIR PIPE |
| 350 | A 6285288008 | CHARGE AIR PIPE |
| 350 | A 6285288008 | CHARGE AIR PIPE |
| 353 | A 6285283108 | AIR INTAKE PIPE |
| 356 | A 6285282608 | AIR INTAKE PIPE |
| 356 | A 6285282608 | AIR INTAKE PIPE |
| 359 | A 6285202501 | AIR INTAKE PIPE |
| 362 | A 6285283308 | AIR INTAKE PIPE |
| 365 | A 0015017982 | HOSE |
| 365 | A 0015017982 | HOSE |
| 368 | A 0020946982 | HOSE |
| 368 | A 0020946982 | HOSE |
| 371 | A 6285012182 | CHARGE AIR HOSE |
| DIA., | ||
| 85MM | ||
| 371 | A 6285012182 | CHARGE AIR HOSE |
| DIA., | ||
| 85MM | ||
| 374 | A 0059972990 | CLAMP |
| 374 | A 0059972990 | CLAMP |
| 380 | A 6285288740 | BRACKET |
| 380 | A 6285288740 | BRACKET |
| 380 | A 6285284741 | BRACKET |
| 380 | A 6285284741 | BRACKET |
| 383 | A 6285040212 | RUBBER MOUNTING |
| 383 | A 6285040212 | RUBBER MOUNTING |
| 386 | A 6289950001 | CLAMP |
| DIA., | ||
| 100MM | ||
| 386 | A 6289950001 | CLAMP |
| DIA., | ||
| 100MM | ||
| 389 | A 6285284640 | BRACKET |
| 389 | A 6285284640 | BRACKET |
| 392 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 392 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 395 | N 913023010002 | NUT |
| M10 | ||
| 395 | N 913023010002 | NUT |
| M10 | ||
| 398 | A 6285280241 | BRACKET |
| 401 | A 6285200541 | BRACKET |
| 401 | A 6285200541 | BRACKET |
| 404 | A 6285203567 | CLAMP |
| 404 | A 6285203567 | CLAMP |
| 407 | A 6285201341 | BRACKET |
| 407 | A 6285201341 | BRACKET |
| 410 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 410 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 413 | A 6289950401 | CLAMP |
| 413 | A 6289950401 | CLAMP |
| 416 | A 6284920641 | BRACKET |
| 416 | A 6284920641 | BRACKET |
| 419 | A 6285285640 | BRACKET |
| 419 | A 6285285640 | BRACKET |
| 422 | A 6285200047 | FLANGE |
| 422 | A 6285200047 | FLANGE |
| 425 | A 4570980080 | GASKET |
| 425 | A 4570980080 | GASKET |
| 428 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 428 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 431 | A 6285281808 | AIR INTAKE PIPE |
| 431 | A 6285281808 | AIR INTAKE PIPE |
| 434 | A 6285282108 | AIR INTAKE PIPE |
| 437 | A 6285205401 | AIR INTAKE PIPE |
| 437 | A 6285205401 | AIR INTAKE PIPE |
| 440 | A 6285282308 | AIR INTAKE PIPE |
| 443 | A 0020946382 | CHARGE AIR HOSE |
| 443 | A 0020946382 | CHARGE AIR HOSE |
| 446 | A 6285282741 | BRACKET |
| 446 | A 6285282741 | BRACKET |
| 449 | A 6289950102 | CLAMP |
| 449 | A 6289950102 | CLAMP |
| 452 | A 6285282841 | BRACKET |
| 452 | A 6285282841 | BRACKET |
| 455 | A 6289950201 | CLAMP |
| 455 | A 6289950201 | CLAMP |
| 458 | N 304017008021 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 458 | N 304017008021 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 461 | A 6285280073 | LOCK |
| 461 | A 6285280073 | LOCK |
| 464 | A 6285284841 | BRACKET |
| 464 | A 6285284841 | BRACKET |
| 467 | A 6289951001 | CLAMP |
| 467 | A 6289951001 | CLAMP |
| 470 | N 000000005518 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| 470 | N 910105014012 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| 470 | N 910105014012 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| Repalced by: N 000000005518 | ||
| 470 | N 000000005518 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| 473 | A 6285288808 | AIR INTAKE PIPE |
| 473 | A 6285288808 | AIR INTAKE PIPE |
| 476 | A 0001595504 | HEATING ELEMENT |
| 476 | A 0001595504 | HEATING ELEMENT |
| 479 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 479 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 482 | A 6285288608 | AIR INTAKE PIPE |
| 485 | A 6285284882 | HOSE |
| 488 | A 6285281708 | AIR INTAKE PIPE |
| 491 | A 6285201641 | BRACKET |
| 494 | A 0002372012 | RUBBER BUSHING |
| 497 | N 071555100501 | CLAMP |
| 500 | A 6285288840 | BRACKET |
| 503 | A 6285288940 | BRACKET |
| 509 | A 6285288708 | CHARGE AIR PIPE |
| 512 | A 6285202301 | AIR INTAKE PIPE |
| 518 | A 6285200767 | CLAMP |
| DIA., | ||
| 100MM | ||
| 521 | A 6285280440 | BRACKET |

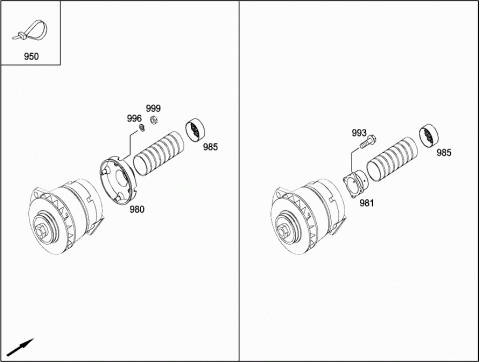

| 950 | A 0019978490 | CABLE TIE |
| 980 | A 4071540165 | COVER |
| ALTERNATOR AIR INTAKE | ||
| 140A | ||
| 981 | A 0001540265 | PIPE SOCKET |
| ALTERNATOR AIR INTAKE | ||
| 180A | ||
| 985 | A 6285280301 | PROTECTIVE GRILLE |
| ALTERNATOR AIR INTAKE | ||
| 993 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 996 | N 000137006102 | SPRING WASHER |
| 999 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 999 | N 000934006000 | NUT |
| M6 | ||
