Transporto priemonė: CITARO 18M 4-TUERER; VIN numerio dalis: 628252

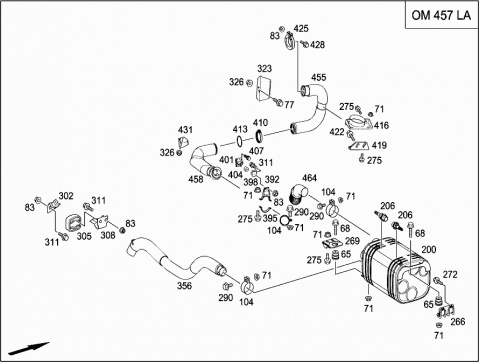

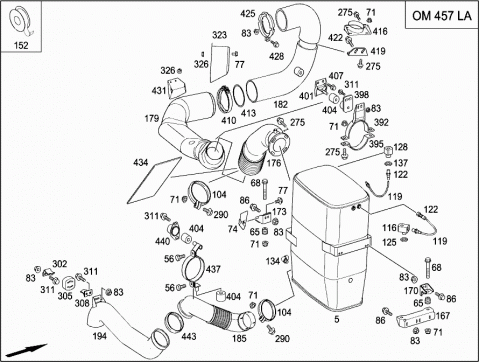

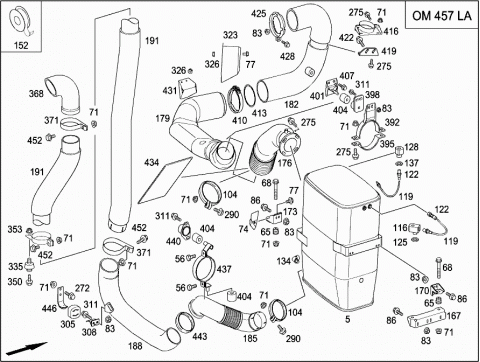

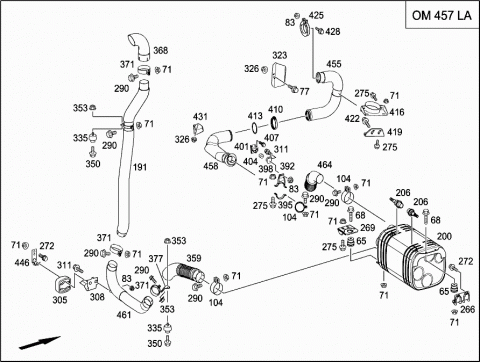

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0014907914 | CATALYTIC CONVERTER |
| 008 | A 0004900513 | INJECTION NOZZLE ADDITIVE |
| 011 | A 0004921080 | SINGLE LAYER METAL SEAL |
| 014 | A 0019904000 | SCREW |
| 017 | A 0004900180 | GASKET |
| 020 | A 0004902792 | PARTICULATE FILTER |
| 023 | A 0004900380 | GASKET |
| 026 | A 0004910303 | FLOOR |
| 029 | A 0169902301 | SCREW |
| M8X14,5MM | ||
| 056 | N 304017010040 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 065 | A 0009980846 | DASHPOT |
| 068 | N 910105010003 | HEXAGON HEAD BOLT |
| M10X60 | ||
| 071 | N 913023010002 | NUT |
| M10 | ||
| 074 | A 6284900230 | HEAT SHIELD |
| 077 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 083 | N 913023008003 | NUT |
| M8 | ||
| 086 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 104 | A 6554920140 | CLAMP |
| 116 | A 6284922218 | BASE PLATE |
| 119 | A 0049975052 | HOSE |
| HIGH PRESSURE | ||
| 122 | A 0009976570 | CONNECTION FITTING |
| 125 | N 000000006644 | NUT |
| M22X1.5 | ||
| 128 | A 6284922118 | BASE PLATE |
| 134 | A 0009975870 | CONNECTION FITTING |
| 137 | N 000000005915 | NUT |
| M24X1.5 | ||
| 152 | A 0029891998 | SEALING STRIP |
| 167 | A 6284906240 | BRACKET |
| 170 | A 6284905040 | BRACKET |
| 173 | A 6284906540 | BRACKET |
| 176 | A 6284900716 | FRONT MUFFLER |
| 179 | A 6284905021 | EXHAUST LINE |
| 182 | A 6284904519 | FLAME TUBE |
| 185 | A 6284901410 | EXHAUST PIPE |
| 188 | A 6284901310 | EXHAUST PIPE |
| 191 | A 6284901210 | EXHAUST PIPE |
| 194 | A 6284902827 | TAILPIPE |
| 200 | A 0014906514 | CATALYTIC CONVERTER |
| 200 | A 0004904414 | CATALYST |
| 206 | A 0061530328 | SENDER UNIT |
| 206 | A 0061530528 | SENDER UNIT |
| 266 | A 6284905540 | BRACKET |
| 269 | A 6284905440 | BRACKET |
| 272 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 275 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 290 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 302 | A 3014910215 | CONSOLE |
| 305 | A 3004920082 | DAMPING PAD |
| 308 | A 6284910415 | CONSOLE |
| 311 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 323 | A 6284920030 | PROTECTIVE PLATE |
| 326 | N 913023006002 | NUT |
| M6 | ||
| 335 | A 0032371012 | BUFFER |
| 60MM | ||
| 350 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16 | ||
| 353 | N 910112010001 | NUT |
| M10 | ||
| 356 | A 6284902127 | TAILPIPE |
| 356 | A 6284903927 | TAILPIPE |
| 359 | A 6284904621 | EXHAUST PIPE |
| 368 | A 6284920414 | TAILPIPE |
| 371 | A 6289950802 | CLAMP |
| 377 | A 6284920442 | BRACKET |
| 392 | A 6284902840 | BRACKET |
| 395 | A 6289950901 | CLAMP |
| 398 | A 6284904140 | BRACKET |
| 401 | A 6284904040 | BRACKET |
| 404 | A 0009872143 | RUBBER BUSHING |
| 50X45MM | ||
| 407 | N 910105012013 | HEXAGON HEAD BOLT |
| M12X1.5X25 | ||
| 410 | A 0004921440 | CLAMP |
| 413 | A 6284920480 | FLANGE GASKET |
| 416 | A 6284902340 | BRACKET |
| 419 | A 6284926142 | BRACKET |
| 422 | N 000000005543 | HEXAGON HEAD BOLT |
| M16X1.5X30 | ||
| 425 | A 9429970290 | CLAMP |
| 428 | N 910105008017 | HEXAGON HEAD BOLT |
| M8X45 | ||
| 431 | A 6284920330 | PROTECTIVE PLATE |
| 434 | A 6284900530 | HEAT SHIELD |
| 437 | A 6284904940 | BRACKET |
| 440 | A 6284904840 | BRACKET |
| 443 | A 0019954302 | PIPE CLAMP |
| 446 | A 6204926241 | BRACKET |
| 452 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1.5X35 | ||
| 455 | A 6284904319 | FLAME TUBE |
| 458 | A 6284904221 | EXHAUST PIPE |
| 461 | A 6284901110 | EXHAUST PIPE |
| 464 | A 6284900116 | FRONT MUFFLER |

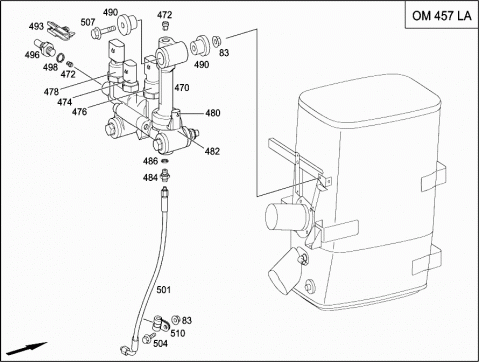

| 470 | A 0001404139 | METERING EQUIPMENT |
| 472 | A 0001400594 | FILTER |
| 474 | A 0061534528 | TEMPERATURE SENSOR |
| 476 | A 0061537428 | PRESSURE SENSOR |
| COMPRESSED AIR | ||
| 478 | A 0061537528 | PRESSURE SENSOR |
| ADBLUE | ||
| 480 | A 0001400030 | NOZZLE |
| DIFFUSER | ||
| 482 | A 0189979245 | SEAL RING |
| 484 | A 0029977871 | SCREW-IN FITTING |
| 486 | A 0199975545 | SEAL RING |
| 486 | A 0199975545 | SEAL RING |
| 490 | A 0001420050 | BUSHING |
| 493 | A 0009950083 | BRACKET |
| 496 | A 0039971771 | SCREW-IN FITTING |
| 498 | A 0199975545 | SEAL RING |
| 501 | A 6281400255 | DELIVERY LINE |
| 504 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 507 | N 910105008064 | HEXAGON HEAD BOLT |
| M8X65 | ||
| 510 | N 000000006221 | CLAMP |
| 10/20 | ||
| Repalced by: N 000000007529 | ||
| 510 | N 000000007529 | CLAMP |
| 10/20 | ||
