Transporto priemonė: CITARO 18M 4-TUERER; VIN numerio dalis: 628252

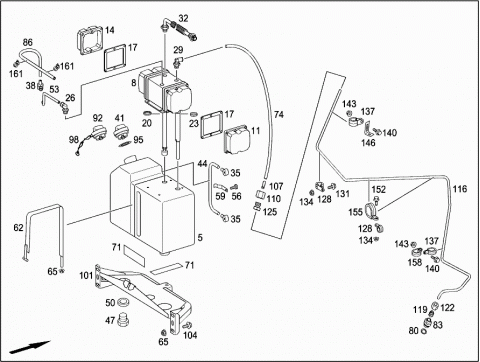

Grupė: 48 OIL TANK
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6284801401 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| GROENEVELD | ||
| 008 | A 6285400745 | CONTROL UNIT |
| 011 | A 0004810011 | COVER |
| BLACK | ||
| 014 | A 0004810111 | COVER |
| TRANSPARENT | ||
| 017 | A 0179970145 | FULL FACE GASKET |
| 020 | A 0179972645 | SEAL RING |
| 22.2X3.5 | ||
| 023 | A 0179972545 | SEAL RING |
| 17X3 | ||
| 026 | A 0279970182 | BANJO UNION |
| 029 | A 0029976071 | ELBOW FITTING |
| DIA., | ||
| 10MM | ||
| 032 | A 0035401505 | CABLE HARNESS |
| 035 | A 6284800025 | ELBOW FITTING |
| 038 | A 6284800125 | ELBOW FITTING |
| 041 | A 0000180702 | FILLER CAP |
| LESS BREATHING | ||
| 044 | A 0109976482 | PLASTIC PIPE |
| 10X1MM | ||
| 047 | N 007604018109 | SCREW PLUG, FILLING |
| AT OIL TANK | ||
| M18X1.5 | ||
| 050 | N 007603018104 | SEALING RING |
| AT OIL TANK | ||
| 18X24 -CU | ||
| 053 | A 0109976982 | PLASTIC PIPE |
| 8X1MM | ||
| 056 | N 000912004016 | SCREW |
| M4X8 | ||
| 059 | A 6284811740 | BRACKET |
| 062 | A 6284800221 | STRAP |
| 065 | N 913023010002 | NUT |
| M10 | ||
| 071 | A 6124750318 | ELASTIC BAND |
| 074 | A 0019970652 | PLASTIC PIPE |
| 10X1MM | ||
| 080 | N 007603018101 | SEALING RING |
| 18X22 -CU | ||
| 083 | N 000000006152 | FITTING |
| A10-M18X1.5 | ||
| 086 | A 0009872627 | PLASTIC PIPE |
| 092 | A 0000181102 | CAP |
| 095 | A 0000180180 | GASKET |
| 098 | A 6285050009 | BEAD CHAIN |
| 101 | A 6284800540 | BRACKET |
| 104 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 107 | A 0019974972 | FITTING |
| 110 | N 915017010200 | NUT |
| BL10 | ||
| 116 | A 6284801815 | OIL LINE |
| 119 | N 915003008201 | BALL-TYPE NIPPLE |
| B2-10MM | ||
| 122 | N 915017010200 | NUT |
| BL10 | ||
| 125 | N 915008008402 | FITTING |
| D10 | ||
| 128 | N 000000007529 | CLAMP |
| 10/20MM | ||
| 131 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 134 | N 913023008003 | NUT |
| M8 | ||
| 137 | N 000000007511 | CLAMP |
| 10/15MM | ||
| 140 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 143 | N 913023006002 | NUT |
| M6 | ||
| 146 | A 3058211714 | BRACKET |
| Repalced by: A 6344280240 | ||
| 146 | A 6344280240 | BRACKET |
| Repalced by: A 6284812240 | ||
| 146 | A 6284812240 | BRACKET |
| 152 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 155 | N 000000007519 | CLAMP |
| 50/20MM | ||
| 158 | A 0019952842 | MOUNTING CLAMP |
| 18/15MM | ||
| 161 | A 0029975890 | CABLE TIE |
