Transporto priemonė: CITARO G BLUETEC-HYBRID; VIN numerio dalis: 628293

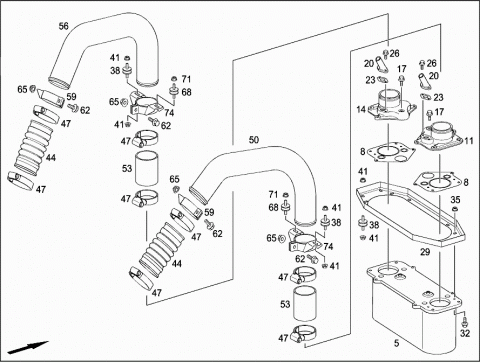

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6285010401 | CHARGE AIR COOLER, FLUID |
| LIQUID-COOLED | ||
| 008 | A 6285010280 | GASKET |
| 011 | A 6285010019 | CONNECTING FLANGE |
| 014 | A 6285010119 | CONNECTING FLANGE |
| 017 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 020 | A 6285010807 | PIPE SOCKET |
| 023 | N 917003022003 | SEAL |
| 22X44X1MM | ||
| 026 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 029 | A 6285286841 | BRACKET |
| 032 | N 910105008060 | HEXAGON HEAD BOLT |
| M8X35 | ||
| 035 | N 913023008003 | NUT |
| M8 | ||
| 038 | A 3225040212 | RUBBER MOUNTING |
| M8 | ||
| 041 | N 910112008000 | NUT |
| M8 | ||
| 044 | A 0015017982 | HOSE |
| CHARGING AIR | ||
| 047 | A 0059972990 | CLAMP |
| 82-105MM | ||
| 050 | A 6285288208 | CHARGE AIR PIPE |
| 053 | A 6285012182 | CHARGE AIR HOSE |
| DIA., | ||
| 85MM | ||
| 056 | A 6285288308 | CHARGE AIR PIPE |
| 059 | A 6285007031 | BRACKET |
| 062 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 065 | N 913023010002 | NUT |
| M10 | ||
| 068 | A 6285040212 | RUBBER MOUNTING |
| 071 | N 910112010001 | NUT |
| M10 | ||
| 074 | A 6285006931 | BRACKET |
| CHARGING AIR | ||
| 101 | A 6285200553 | AIR FILTER |
| COMPLETE | ||
| 102 | A 0040946304 | AIR FILTER INSERT |
| 103 | A 0005840713 | INFORMATION LABEL |
| 104 | A 0019916371 | MOUNTING CLIP |
| 105 | A 0000945555 | SNAP LOCK |
| 107 | A 4375280010 | COVER |
| 109 | A 0010940106 | COVER |
| 125 | A 6285285541 | BRACKET |
| 128 | A 6285207201 | AIR DUCT |
| 131 | A 0005282182 | INTAKE HOSE |
| 134 | N 000000000677 | CLAMP |
| 120-140X12MM | ||
| 137 | A 3975287282 | HOSE |
| 140 | A 6285280324 | CLEAN AIR LINE |
| 143 | A 6285285441 | BRACKET |
| 146 | A 6285202402 | RESONATOR |
| 149 | A 0009950233 | CLAMP |
| 152 | A 0139972245 | SEAL RING |
| 155 | N 001481003001 | ROLL PIN |
| 3X14MM | ||
| 158 | A 6285280424 | CLEAN AIR LINE |
| 161 | A 6285285641 | BRACKET |
| 164 | A 3114902540 | BRACKET |
| 167 | A 3114902640 | BRACKET |
| 170 | A 0007570174 | RUBBER SEAL |
| 173 | N 910105008011 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 176 | A 4055280782 | HOSE |
| 179 | A 0059970690 | CLAMP |
| 182 | A 0059972890 | CLAMP |
| 185 | N 000000000667 | CLAMP |
| 20-32X12MM | ||
| 188 | A 0071531128 | TEMPERATURE SENSOR |
| 191 | A 1029970045 | SEAL RING |
| 194 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 197 | A 0000945368 | MAINTENANCE INDICATOR |
| Repalced by: A 0005280209 | ||
| 197 | A 0005280209 | PIPE |
| 200 | A 6289970582 | HOSE |
| 203 | N 000000006696 | BANJO UNION |
| 4/10MM | ||
| 206 | N 000000004896 | BANJO BOLT |
| A6 | ||
| 209 | N 007603010110 | SEALING RING |
| A10X13.5-CU | ||
