Transporto priemonė: CITARO BRENNSTOFFZELLEN-HYBRID; VIN numerio dalis: 628073

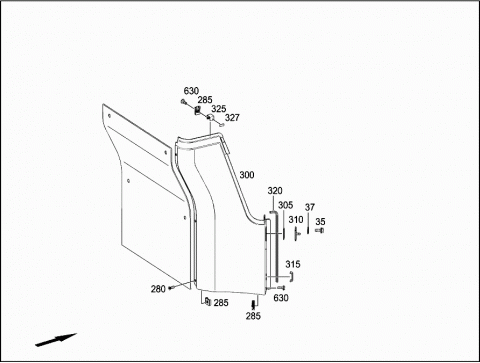

Grupė: 71 PARTITION PANELS - 120 DRIVER'S PARTITION PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3117112610 | GLASS PANE |
| PARTITION PANEL,REAR LATERAL | ||
| 010 | A 3117113510 | GLASS PANE |
| PARTITION PANEL,REAR LATERAL | ||
| 015 | A 6288104850 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 020 | A 6288104950 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 025 | A 6287110356 | FRAME |
| 030 | A 6287111012 | ANGLE |
| 035 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 035 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 037 | N 000000003260 | WASHER |
| 040 | A 0009905831 | SCREW |
| 045 | A 3577110043 | MOUNTING |
| 050 | A 6289920001 | BUSHING |
| 055 | A 6669900040 | WASHER |
| 060 | A 3577110013 | WASHER |
| 065 | A 3579970016 | THREADED CHUCK |
| 070 | N 000000003098 | SCREW |
| M6X10 | ||
| Repalced by: A 0019903202 | ||
| 070 | A 0019903202 | HEXAL. SOCKET CSK. BOLT |
| M6X10 | ||
| 075 | A 6287110728 | COVERING |
| 080 | N 910105008010 | HEXAGON HEAD BOLT |
| 085 | A 0049941645 | SPRING NUT |
| 090 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 090 | N 910105008026 | SCREW |
| M8X20 | ||
| 095 | A 6289910040 | SPACER TUBE |
| 100 | A 6287140714 | BRACKET |
| 105 | A 0009872023 | TOTAL FOAMED MATERIAL USE |
| 110 | A 0019909291 | SOCKET NUT |
| M5 | ||
| 115 | N 000000001526 | HEXALOBULAR BOLT |
| M5X12 | ||
| 120 | A 6289901282 | THREADED UNION |
| 125 | N 000000001150 | HEXALOBULAR BOLT |
| M6X60 | ||
| 135 | A 6287112214 | BRACKET |
| TO GLASS PANE,BOTTOM | ||
| 140 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 150 | A 6287110124 | COVER PLATE |
| SINGLE GLAZING | ||
| 150 | A 6287110224 | COVER PLATE |
| DOUBLE GLAZING | ||
| 200 | A 6287100424 | COVERING |
| 205 | N 000000001181 | HEXALOBULAR BOLT |
| M5X16 | ||
| 210 | A 6287110217 | BUSHING |
| 215 | A 6287150008 | COVERING |
| 220 | A 6287100436 | BRACKET |
| 225 | A 6287140051 | HINGE |
| 230 | A 6286025414 | BRACKET |
| 235 | A 0019878440 | RUBBER BUFFER |
| 240 | N 000000006148 | NUT |
| M4 | ||
| 245 | A 6287150208 | COVERING |
| 250 | A 6288311112 | ANGLE |
| 255 | A 0009871962 | RUBBER SECTION |
| 260 | A 6386950214 | BRACKET |
| 265 | A 6287103118 | PANELLING |
| 270 | A 6287120124 | COVERING |
| 275 | A 6287140612 | ANGLE |
| 280 | A 0029901120 | SCREW |
| 285 | A 0019909291 | SOCKET NUT |
| 290 | A 6287141312 | ANGLE |
| 300 | A 6287120525 | PANELLING |
| 305 | A 6287160211 | PLATE |
| 310 | A 6287100000 | DOOR FITTING ASSEMBLY |
| 315 | A 6287160311 | PLATE |
| 320 | A 0029870333 | RUBBER SECTION |
| 325 | A 6287140814 | BRACKET |
| 327 | A 0009872023 | TOTAL FOAMED MATERIAL USE |
| 630 | N 000000001935 | HEXALOBULAR BOLT |
| M5X16 | ||
