Transporto priemonė: CONECTO 12 M; VIN numerio dalis: 628310

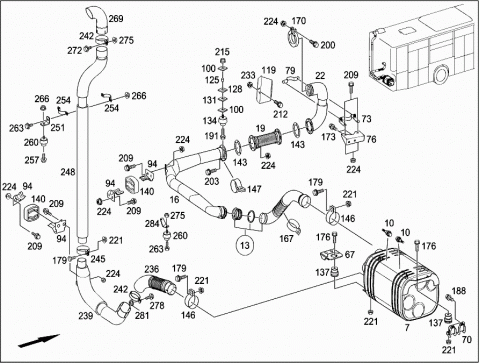

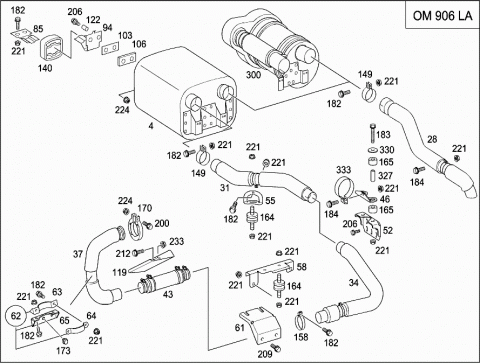

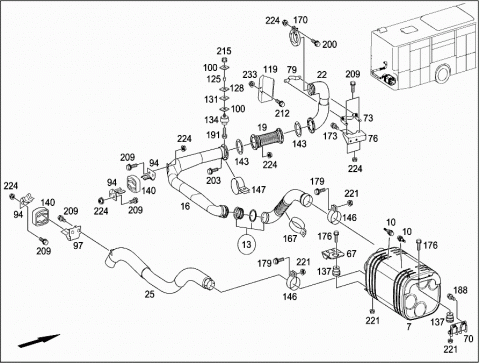

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6284900601 | EXHAUST MUFFLER |
| 004 | A 6284901214 | CATALYST |
| 007 | A 0014904514 | CATALYST |
| 007 | A 0004904414 | CATALYST |
| 010 | A 0061530328 | SENDER UNIT |
| 013 | A 6284903921 | EXHAUST PIPE |
| 016 | A 6284903721 | EXHAUST PIPE |
| 019 | A 6284903821 | EXHAUST PIPE |
| Repalced by: A 6284904721 | ||
| 019 | A 6284904721 | EXHAUST PIPE |
| 022 | A 6284903119 | EXHAUST PIPE |
| 025 | A 6284902127 | TAILPIPE |
| 028 | A 6284900221 | EXHAUST PIPE |
| 031 | A 6284901019 | EXHAUST PIPE |
| EXHAUST PIPE TO MUFFLER | ||
| 034 | A 6284900919 | EXHAUST PIPE |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 037 | A 6284900325 | CONNECTOR |
| 037 | A 6284901619 | EXHAUST PIPE |
| 043 | A 9734900165 | FLEXIBLE METAL TUBE |
| CONNECTION OF EXHAUST PIPES WITH EACH OTHER | ||
| Repalced by: A 9704900665 | ||
| 043 | A 9704900665 | WRAPPED TUBING |
| CONNECTION OF EXHAUST PIPES WITH EACH OTHER | ||
| 046 | A 6284923141 | BRACKET |
| 046 | A 6284923141 | BRACKET |
| EXHAUST SYSTEM | ||
| Repalced by: A 6284924242 | ||
| 046 | A 6284924242 | BRACKET |
| EXHAUST SYSTEM | ||
| 052 | A 6284900440 | BRACKET |
| EXHAUST PIPE TO REAR CROSS MEMBER | ||
| 052 | A 6284900440 | BRACKET |
| EXHAUST SYSTEM | ||
| Repalced by: A 6284924342 | ||
| 052 | A 6284924342 | BRACKET |
| EXHAUST SYSTEM | ||
| 055 | A 6284922941 | BRACKET |
| EXHAUST PIPE | ||
| 058 | A 6284923441 | BRACKET |
| 061 | A 6284900640 | BRACKET |
| EXHAUST PIPE AT FRAMEWORK,LEFT | ||
| 062 | A 6284901240 | BRACKET |
| AT TIMING CASE | ||
| 063 | A 6284901340 | BRACKET |
| 064 | A 6284920740 | CLAMP |
| 065 | A 6284924141 | BRACKET |
| 067 | A 6284903740 | BRACKET |
| 070 | A 6284903840 | BRACKET |
| 073 | A 6284901640 | BRACKET |
| 076 | A 6284924341 | BRACKET |
| 079 | A 6284924441 | BRACKET |
| 085 | A 3014910015 | CONSOLE |
| EXHAUST MUFFLER SUSPENSION | ||
| 085 | A 3014910015 | CONSOLE |
| EXHAUST MUFFLER SUSPENSION | ||
| 094 | A 3014910215 | CONSOLE |
| EXHAUST MUFFLER SUSPENSION | ||
| 094 | A 3014910215 | CONSOLE |
| EXHAUST MUFFLER SUSPENSION | ||
| 097 | A 6284910415 | CONSOLE |
| EXHAUST MUFFLER SUSPENSION | ||
| 100 | A 6284910018 | PLATE |
| 103 | A 3014910118 | PLATE |
| EXHAUST MUFFLER SUSPENSION | ||
| 106 | A 3004910183 | INSULATION |
| EXHAUST MUFFLER SUSPENSION | ||
| 106 | A 3004910283 | INSULATION |
| EXHAUST MUFFLER SUSPENSION | ||
| 119 | A 6284920030 | PROTECTIVE PLATE |
| OIL FILLER PIPE | ||
| 122 | A 3014910053 | SPACER TUBE |
| EXHAUST MUFFLER SUSPENSION | ||
| 125 | A 6284920153 | SPACER TUBE |
| 128 | A 6284920683 | INSULATION |
| THICKNESS, | ||
| 2 MM | ||
| 131 | A 6284920783 | INSULATION |
| THICKNESS, | ||
| 4 MM | ||
| 134 | A 0032371012 | BUFFER |
| 137 | A 0009980246 | INSULATION |
| 140 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER SUSPENSION | ||
| 143 | A 6284920380 | FLANGE GASKET |
| 146 | A 6554920140 | CLAMP |
| D=124,5MM | ||
| 147 | A 9404920240 | CLAMP |
| 149 | N 071555094502 | CLAMP |
| 94,5MM | ||
| 149 | N 071555104501 | CLAMP |
| 104,5MM | ||
| 158 | N 071555090502 | CLAMP |
| 90,5MM | ||
| 164 | A 6284920087 | RUBBER MOUNTING |
| M8 | ||
| 165 | A 6284920087 | RUBBER MOUNTING |
| Repalced by: A 0004920087 | ||
| 165 | A 0004920087 | BUFFER |
| 167 | A 0004921340 | CLAMP |
| 170 | A 6209970590 | CLAMP |
| CONNECTOR | ||
| 173 | N 910105016013 | HEXAGON HEAD BOLT |
| Repalced by: N 910105016029 | ||
| 173 | N 910105016029 | HEXAGON HEAD BOLT |
| Repalced by: N 000000005555 | ||
| 173 | N 000000005555 | HEXAGON HEAD BOLT |
| 173 | N 910105016013 | HEXAGON HEAD BOLT |
| M16X30MM | ||
| Repalced by: N 910105016029 | ||
| 173 | N 910105016029 | HEXAGON HEAD BOLT |
| M16X30MM | ||
| 173 | N 000000005555 | HEXAGON HEAD BOLT |
| BRACKET TO TIMING CASE | ||
| M16X25MM | ||
| 176 | N 910105010003 | HEXAGON HEAD BOLT |
| M10X60MM | ||
| 179 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 179 | N 000000000428 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 182 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 182 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 183 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| Repalced by: N 910105010016 | ||
| 183 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 183 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| Repalced by: N 910105010016 | ||
| 183 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 184 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| Repalced by: N 910105010011 | ||
| 184 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 184 | N 910112010001 | NUT |
| M10 | ||
| Repalced by: N 910105010011 | ||
| 184 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 188 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20MM | ||
| 191 | N 000000000300 | HEXALOBULAR BOLT |
| M10X16 | ||
| 200 | N 910143008018 | HEXALOBULAR BOLT |
| M8X40MM | ||
| 200 | A 0019904204 | SCREW |
| FROM CONNECTOR TO PIPE ELBOW | ||
| M8X35MM | ||
| 203 | N 910105008060 | HEXAGON HEAD BOLT |
| M8X35MM | ||
| 206 | N 910143008003 | HEXALOBULAR BOLT |
| M8X30MM | ||
| 206 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30MM | ||
| 209 | N 000000000276 | SCREW |
| M8X20 | ||
| 209 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 212 | N 910143006000 | HEXALOBULAR BOLT |
| M6X12MM | ||
| 212 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 215 | N 910112010001 | NUT |
| M10 | ||
| 221 | N 910112010001 | NUT |
| M10 | ||
| 221 | N 913023010002 | NUT |
| M10 | ||
| 224 | N 913023008003 | NUT |
| M8 | ||
| 224 | N 913023008003 | NUT |
| FROM CONNECTOR TO PIPE ELBOW | ||
| M8 | ||
| Repalced by: N 913023008002 | ||
| 224 | N 913023008002 | NUT |
| FROM CONNECTOR TO PIPE ELBOW | ||
| M8 | ||
| 224 | A 0009906350 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| M8 | ||
| 224 | N 913023008002 | NUT |
| M8 | ||
| 233 | N 913023006001 | NUT |
| M6 | ||
| 233 | N 913023006002 | NUT |
| M6 | ||
| 236 | A 6284904621 | EXHAUST PIPE |
| 239 | A 6284904121 | EXHAUST PIPE |
| 242 | A 6289950802 | CLAMP |
| 245 | A 9404920240 | CLAMP |
| 248 | A 6284902821 | EXHAUST PIPE |
| 251 | A 6284923741 | BRACKET |
| 254 | A 6289950601 | CLAMP |
| 257 | N 910143010012 | HEXALOBULAR BOLT |
| M10X30MM | ||
| 260 | A 0032371012 | BUFFER |
| 263 | N 000000000300 | HEXALOBULAR BOLT |
| M10X16 | ||
| 266 | N 913023010002 | NUT |
| M10 | ||
| 269 | A 6284920414 | TAILPIPE |
| 272 | N 000000000428 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 275 | N 910112010001 | NUT |
| M10 | ||
| 278 | N 910105012047 | HEXAGON HEAD BOLT |
| M12X1,5X40MM | ||
| 281 | N 913023012002 | NUT |
| M12X1,5 | ||
| 284 | A 6284920442 | BRACKET |

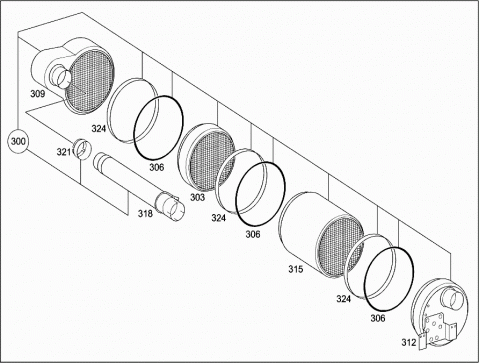

| 300 | A 6284903314 | CATALYST |
| HJS-CRT 60SMF OM 906 LA | ||
| 303 | A 0004906714 | CATALYST |
| 306 | A 0004910880 | GASKET |
| 309 | A 0004901009 | INPUT MODULE |
| 312 | A 0004900909 | OUTPUT MODULE |
| 315 | A 0004902392 | PARTICLE FILTER |
| 318 | A 0004925601 | EXHAUST PIPE |
| 321 | N 071555104501 | CLAMP |
| 104,5MM | ||
| 324 | A 0009952602 | CLAMP |
| 327 | A 0004910053 | SPACER TUBE |
| 330 | A 0069905640 | WASHER |
| 50X11X3MM | ||
| 333 | N 071555094502 | CLAMP |
| 94,5MM | ||
