Transporto priemonė: CONECTO 12 M; VIN numerio dalis: 628310

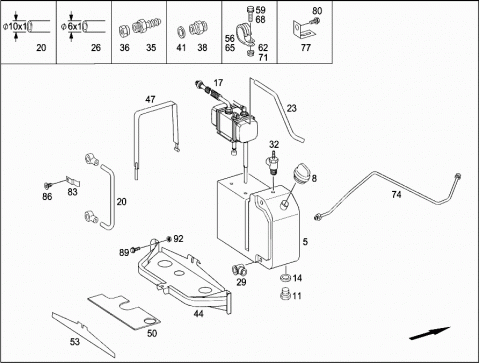

Grupė: 48 OIL TANK
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6284801401 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| GROENEVELD | ||
| 008 | A 0000180702 | FILLER CAP |
| LESS VENT | ||
| 011 | N 000000005441 | SCREW PLUG, FILLING |
| AT OIL TANK | ||
| M18X1.5 | ||
| 014 | N 007603018104 | SEALING RING |
| AT OIL TANK | ||
| 18X24-CU | ||
| 017 | A 6285400745 | CONTROL UNIT |
| AT OIL TANK | ||
| 020 | A 0109976482 | PLASTIC PIPE |
| AT OIL TANK | ||
| 10X1MM | ||
| 020 | A 0019970652 | PLASTIC PIPE |
| FROM FEED LINE TO ENGINE | ||
| 10X1MM | ||
| 023 | A 0109976982 | PLASTIC PIPE |
| PIPE LINE TO CONTROL UNIT | ||
| 8X1MM | ||
| 026 | A 0009872627 | PLASTIC PIPE |
| BREATHER LINE | ||
| 6X1MM | ||
| 029 | A 6284800025 | ELBOW FITTING |
| 032 | A 6284800125 | ELBOW FITTING |
| 035 | A 0019974972 | FITTING |
| 036 | N 915017010200 | NUT |
| BL10 | ||
| 038 | N 915027000000 | FITTING |
| CONNECTION TO ENGINE | ||
| M18X1.5 | ||
| 041 | N 007603018101 | SEALING RING |
| CONNECTION TO ENGINE | ||
| 18X22-CU | ||
| 044 | A 6284800540 | BRACKET |
| OIL TANK | ||
| 047 | A 6284800221 | STRAP |
| OIL TANK | ||
| 050 | A 6284810882 | RUBBER MOUNTING |
| ON BRACKET | ||
| 053 | A 6284810982 | RUBBER MOUNTING |
| ON BRACKET | ||
| 056 | N 916016010203 | CLAMP |
| TO ENGINE | ||
| 10/20MM | ||
| Repalced by: N 000000006221 | ||
| 056 | N 000000006221 | CLAMP |
| TO ENGINE | ||
| 10/20MM | ||
| Repalced by: N 000000007529 | ||
| 056 | N 000000007529 | CLAMP |
| TO ENGINE | ||
| 10/20MM | ||
| 059 | N 910105008026 | HEXAGON HEAD BOLT |
| TO ENGINE | ||
| M8X20 | ||
| 062 | N 913023008003 | NUT |
| TO ENGINE | ||
| M8 | ||
| Repalced by: N 913023008002 | ||
| 062 | N 913023008002 | NUT |
| TO ENGINE | ||
| M8 | ||
| 065 | N 916016010201 | CLAMP |
| TO ENGINE | ||
| 10/15MM | ||
| Repalced by: N 000000000320 | ||
| 065 | N 000000000320 | CLAMP |
| TO ENGINE | ||
| 10/15MM | ||
| Repalced by: N 000000007511 | ||
| 065 | N 000000007511 | CLAMP |
| TO ENGINE | ||
| 10/15MM | ||
| 068 | N 910105006006 | HEXAGON HEAD BOLT |
| TO ENGINE | ||
| M6X20 | ||
| 071 | N 913023006002 | NUT |
| TO ENGINE | ||
| M6 | ||
| 074 | A 6284801215 | OIL LINE |
| AUTOMATIC OIL REPLENISHMENT | ||
| 077 | A 3058211714 | BRACKET |
| BRACKET TO ENGINE | ||
| Repalced by: A 6344280240 | ||
| 077 | A 6344280240 | BRACKET |
| BRACKET TO ENGINE | ||
| 080 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| Repalced by: N 910143008000 | ||
| 080 | N 910143008000 | HEXALOBULAR BOLT |
| M8X16 | ||
| 083 | A 6284811740 | BRACKET |
| AT OIL TANK | ||
| 086 | N 000912004016 | SCREW |
| AT OIL TANK | ||
| M4X8 | ||
| 089 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 092 | N 913023010002 | NUT |
| M10 | ||
