Transporto priemonė: CONECTO 12 M; VIN numerio dalis: 628310

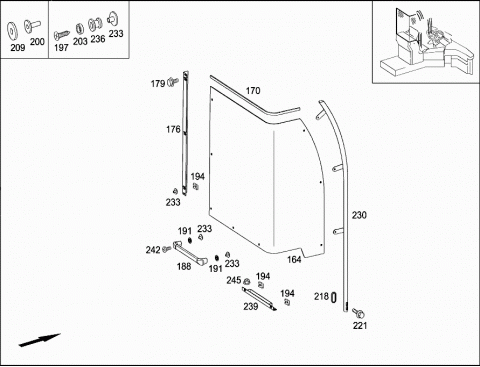

Grupė: 71 PARTITION PANELS - 120 DRIVER'S PARTITION PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6287141310 | PANELLING |
| ELECTRICAL COMPARTMENT, BEHIND DRIVER'S PLACE | ||
| 2550 MM | ||
| 008 | A 6287141210 | PANELLING |
| ELECTRICAL COMPARTMENT, BEHIND DRIVER'S PLACE | ||
| 008 | A 6287120525 | PANELLING |
| ELECTRICAL COMPARTMENT, BEHIND DRIVER'S PLACE | ||
| 011 | A 6287100424 | COVERING |
| 011 | A 6287100124 | COVERING |
| TO COVERING | ||
| 014 | A 0008311860 | NOZZLE |
| DRIVER VENTILATION FROM REAR | ||
| 017 | A 6287140065 | STOP LEDGE |
| TO COVERING | ||
| 020 | A 6287100000 | DOOR FITTING ASSEMBLY |
| AT COVERING | ||
| 023 | A 6287160211 | PLATE |
| 026 | A 6287160311 | PLATE |
| 029 | A 6287110217 | BUSHING |
| 032 | A 6287150008 | COVERING |
| BEHIND DRIVER'S SEAT | ||
| 035 | A 6287140051 | HINGE |
| COVERING TO COVERING | ||
| 038 | A 6287100436 | BRACKET |
| HINGE | ||
| 041 | A 0019878440 | RUBBER BUFFER |
| ELECTRICAL COMPARTMENT FLAP | ||
| 044 | A 6286025414 | BRACKET |
| 047 | A 6287160125 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 050 | A 6287100318 | PANELLING |
| LOCKABLE PIGEONHOLE | ||
| 056 | A 6287100218 | PANELLING |
| INTERIOR DOOR INSIDE | ||
| 059 | A 0019878040 | RUBBER BUFFER |
| INTERIOR DOOR INSIDE | ||
| 062 | A 6287180064 | HANDLE |
| INTERIOR DOOR INSIDE | ||
| 065 | A 3567500850 | LOCK |
| 068 | A 6287103918 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 068 | A 6287102818 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 071 | A 6288161303 | MONEY CHANGER |
| 074 | A 6287163714 | BRACKET |
| 077 | A 6287110030 | WINDOW REGULATOR RAIL |
| 080 | A 6287161412 | ANGLE |
| 083 | A 6287161512 | ANGLE |
| 086 | A 0009882563 | SNAP LOCK |
| LOWER PART | ||
| 089 | A 0009912915 | BALL PIVOT |
| 092 | A 0019911722 | BALL SOCKET |
| 095 | A 6287150370 | GRIP RAIL |
| M4X30 | ||
| 098 | A 6288170016 | BADGE |
| INTERIOR DOOR OUTSIDE | ||
| 101 | A 6287180051 | HINGE |
| TOP | ||
| 104 | A 6287180151 | HINGE |
| BOTTOM | ||
| 105 | A 6287100118 | PANELLING |
| INTERIOR DOOR OUTSIDE | ||
| 107 | N 910143008001 | SCREW |
| HINGE TO BODY | ||
| M8X20 | ||
| 107 | N 000000000276 | SCREW |
| HINGE TO BODY | ||
| M8X20 | ||
| 107 | N 910105006004 | HEXAGON HEAD BOLT |
| HINGE TO BODY | ||
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 107 | N 910143006001 | HEXALOBULAR BOLT |
| HINGE TO BODY | ||
| M6X16 | ||
| 110 | N 000000003260 | WASHER |
| 113 | N 910143008000 | SCREW |
| HINGE TO BODY | ||
| M8X16 | ||
| 113 | N 000000003853 | SCREW |
| HINGE TO BODY | ||
| M8X16 | ||
| 113 | N 910105008026 | SCREW |
| HINGE TO BODY | ||
| M 8X20 | ||
| 113 | N 910105008041 | SCREW |
| HINGE TO BODY | ||
| M 8X16 | ||
| 116 | A 6289910040 | SPACER TUBE |
| 119 | A 0009880020 | VIBRATION ABSORBER |
| 122 | N 000000000575 | SCREW |
| 125 | N 912010008001 | LOCK PLATE |
| 128 | A 6286024814 | BRACKET |
| MUFFLER | ||
| 131 | N 910105008041 | SCREW |
| 134 | A 0007430139 | GUIDE |
| BOTTOM | ||
| 137 | A 0007430039 | GUIDE |
| BOTTOM | ||
| 140 | A 6287160264 | |
| INTERIOR DOOR INSIDE | ||
| 143 | A 6287160414 | BRACKET |
| DOOR POCKET | ||
| 146 | A 6287110076 | LEVER |
| 149 | A 2029940045 | LOCK |
| BRACKET MOUNTING | ||
| 152 | A 6287110276 | LEVER |
| 155 | A 6287164814 | BRACKET |
| 158 | A 6287110007 | SHELL |
| 161 | A 6287100057 | COVER |
| 164 | A 3117112610 | GLASS PANE |
| PARTITION PANEL,REAR LATERAL | ||
| 167 | N 910105008004 | SCREW |
| M 8X20 | ||
| 170 | A 6287110356 | FRAME |
| 173 | A 6288311112 | ANGLE |
| 176 | A 6287111012 | ANGLE |
| 179 | N 910105006002 | HEXAGON HEAD BOLT |
| M 6X12 | ||
| 179 | N 000000003098 | SCREW |
| M 6X10 | ||
| Repalced by: A 0019903202 | ||
| 179 | A 0019903202 | HEXAL. SOCKET CSK. BOLT |
| M 6X10 | ||
| 182 | A 6287150208 | COVERING |
| AIR INTAKE DRIVER'S WORKING PLACE | ||
| 188 | A 6328100354 | HANDLE |
| TO GLASS PANE,BOTTOM | ||
| MODULAR 330LG | ||
| 191 | A 6289901282 | THREADED UNION |
| 194 | A 0049941645 | SPRING NUT |
| M 6 | ||
| 197 | A 0009905831 | SCREW |
| 200 | A 3579970016 | THREADED CHUCK |
| 203 | A 6669900040 | WASHER |
| 206 | A 0009871962 | RUBBER SECTION |
| TO GLAS PANE,LATERAL | ||
| 209 | A 3577110013 | WASHER |
| 212 | A 6386950214 | BRACKET |
| 215 | A 6287140814 | BRACKET |
| 218 | A 0007110028 | COVERING |
| Repalced by: A 6287110728 | ||
| 218 | A 6287110728 | COVERING |
| 221 | N 910105008010 | SCREW |
| M 8X40 | ||
| 224 | A 6288100013 | BRACKET |
| 80MM | ||
| 227 | A 0029976486 | PLUG |
| 230 | A 6288104850 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 233 | A 6289920001 | BUSHING |
| Repalced by: A 6289920005 | ||
| 233 | A 6289920005 | BUSHING |
| 236 | A 3577110043 | MOUNTING |
| GLASS PANE | ||
| 239 | A 6287112214 | BRACKET |
| TO GLASS PANE,BOTTOM | ||
| 242 | N 000000001150 | HEXALOBULAR BOLT |
| M6X60 | ||
| 245 | N 910112006001 | NUT |
| M 6 | ||
| 248 | A 0009943648 | LOCK |
| 251 | A 1009940160 | LOCK |
| 254 | A 0019909920 | SCREW |
| M6X12 | ||
| 254 | A 0019909620 | SCREW |
| M5X12 | ||
| 254 | A 0009905331 | SCREW |
| M 5X20 | ||
| 254 | N 000965005013 | SCREW |
| M5X16 | ||
| 254 | A 0029901120 | SCREW |
| M 5X16 | ||
| 257 | A 0019909291 | NUT RETAINER |
| 257 | A 0009906291 | NUT RETAINER |
| 260 | A 6287180025 | GUIDE |
| 263 | A 0009872023 | PLASTIC SECTION |
| 266 | A 6287101513 | FRAME |
| FRONT DOOR | ||
| 266 | A 6287102713 | FRAME |
| 269 | A 0006950942 | MOUNTING STRIP |
| 272 | N 000000000994 | ROLL PIN |
| 4X32 | ||
| 275 | N 000000000527 | TAPPING SCREW |
| 4.8X13 | ||
| 275 | N 000000000478 | TAPPING SCREW |
| 3.5X19 | ||
| 278 | N 913023005002 | NUT |
| M 5 | ||
| 281 | N 000000002209 | HEXALOBULAR BOLT |
| M5X20 | ||
| 281 | N 000000001935 | SCREW |
| M 5X16 | ||
| 281 | N 000000001181 | SCREW |
| M 5X16 | ||
| 281 | A 0019909920 | SCREW |
| M 6X16 | ||
