Transporto priemonė: CONECTO 12 M; VIN numerio dalis: 628310

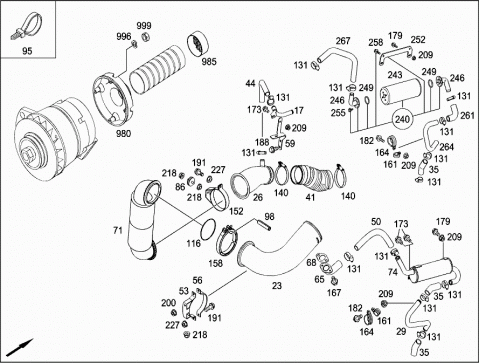

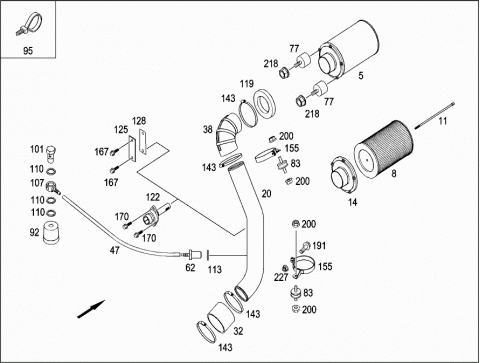

Grupė: 52 SHEET METAL / AIR INTAKE - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6285200802 | AIR INTAKE CASE |
| 008 | A 6285280606 | AIR CLEANER |
| 011 | A 6285280071 | PIN |
| 014 | A 6285280210 | COVER |
| 017 | A 6285200050 | AIR INTAKE PIPE |
| 020 | A 6285205901 | AIR INTAKE PIPE |
| Repalced by: A 6285200650 | ||
| 020 | A 6285200650 | AIR SUCTION PIPE |
| 023 | A 6285286708 | AIR INTAKE PIPE |
| 026 | A 6285286608 | AIR INTAKE PIPE |
| 029 | A 6285286308 | AIR INTAKE PIPE |
| 032 | A 6285280082 | HOSE |
| 035 | A 9061340382 | HOSE |
| 038 | A 0020944982 | HOSE |
| 041 | A 0005010382 | HOSE |
| 044 | A 6289970552 | HOSE |
| 047 | A 6289970682 | HOSE |
| 050 | A 6665280082 | HOSE |
| 053 | A 6289950502 | CLAMP |
| 056 | A 6289950402 | CLAMP |
| 059 | A 6285047741 | BRACKET |
| 062 | A 0019973472 | FITTING |
| 065 | A 6285202502 | INTAKE PIPE SOCKET |
| 068 | N 917003026003 | SEAL |
| 26X48X1MM | ||
| 071 | A 6285202402 | RESONATOR |
| 074 | A 6285203202 | RESONATOR |
| 077 | A 0029872840 | RUBBER BUFFER |
| M 10 | ||
| 083 | A 3225040212 | RUBBER MOUNTING |
| M 8 | ||
| 086 | A 6285040212 | RUBBER MOUNTING |
| M 10 | ||
| 092 | A 0000945368 | MAINTENANCE INDICATOR |
| 095 | A 0019978390 | CABLE TIE |
| 098 | N 001481003001 | ROLL PIN |
| 3X14MM | ||
| 101 | N 915036006101 | BANJO BOLT |
| 101 | N 000000004896 | BANJO BOLT |
| A6 | ||
| 107 | N 915052004003 | BANJO UNION |
| 107 | N 000000006696 | BANJO UNION |
| 110 | N 007603010110 | SEALING RING |
| 10X13.5-CU | ||
| 113 | N 007603012102 | SEALING RING |
| 12X16-CU | ||
| 116 | A 0139972245 | SEAL RING |
| 119 | A 6285280080 | GASKET |
| 122 | A 0071530128 | TEMPERATURE SENSOR |
| Repalced by: A 0071531128 | ||
| 122 | A 0071531128 | TEMPERATURE SENSOR |
| 125 | A 6285281010 | COVER |
| 62X22X3 | ||
| 128 | A 6285280880 | GASKET |
| 62X22X1 | ||
| 131 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 140 | A 0059970690 | CLAMP |
| 95 - 117 MM | ||
| 143 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 152 | A 6285201267 | CLAMP |
| DIA., | ||
| 132 MM | ||
| 155 | A 6285202767 | CLAMP |
| DIA., | ||
| 150 MM | ||
| 158 | A 0009950233 | CLAMP |
| 161 | N 916016028200 | CLAMP |
| DIA., | ||
| 28/20MM | ||
| Repalced by: N 000000006228 | ||
| 161 | N 000000006228 | CLAMP |
| DIA., | ||
| 28/20MM | ||
| 161 | N 000000000329 | CLAMP |
| DIA., | ||
| 28/15MM | ||
| 164 | N 916016050201 | CLAMP |
| DIA., | ||
| 50/20MM | ||
| Repalced by: N 000000004045 | ||
| 164 | N 000000004045 | CLAMP |
| DIA., | ||
| 50/20MM | ||
| 167 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 170 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 173 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 179 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 182 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 188 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 191 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 200 | N 910112008000 | NUT |
| M8 | ||
| 209 | N 913023008003 | NUT |
| M8 | ||
| 218 | N 910112010001 | NUT |
| M10 | ||
| 227 | N 913023010002 | NUT |
| M10 | ||
| 240 | A 6285204702 | RESONATOR |
| 243 | A 6325200502 | RESONATOR |
| 246 | A 6325281509 | CONNECTION FITTING |
| 249 | A 0199974948 | O-RING |
| 252 | A 6285287741 | BRACKET |
| 255 | N 910105005010 | HEXAGON HEAD BOLT |
| M5X10 | ||
| Repalced by: N 910105005002 | ||
| 255 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 258 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| 261 | A 6285014082 | MOLDED HOSE |
| 90-DEGREE ARC | ||
| D28MM | ||
| 264 | A 3115280808 | INTAKE MANIFOLD |
| 267 | A 6285284782 | INTAKE HOSE |
| 980 | A 4071540165 | COVER |
| ALTERNATOR AIR INTAKE | ||
| 140A | ||
| 985 | A 6285280301 | PROTECTIVE GRILLE |
| ALTERNATOR AIR INTAKE | ||
| 996 | N 000137006102 | SPRING WASHER |
| 999 | N 000934006000 | NUT |
| M6 | ||
