Transporto priemonė: FAHRGESTELL - MULTEGO 2-ACHSER; VIN numerio dalis: 634663

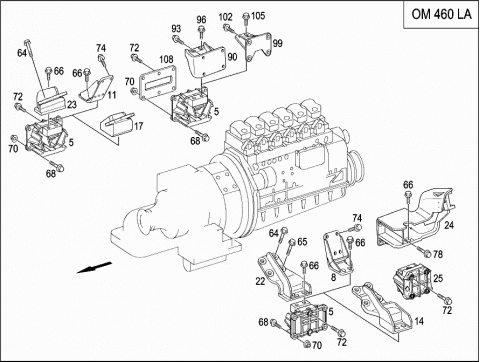

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6282402117 | RUBBER MOUNTING |
| LEFT AND RIGHT,FRONT AND REAR | ||
| 005 | A 6282402117 | RUBBER MOUNTING |
| LEFT AND RIGHT,FRONT AND REAR | ||
| 008 | A 6342401001 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 008 | A 6342401001 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 011 | A 6342401101 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 011 | A 6342401101 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 014 | A 6342411201 | ENGINE SUPPORT |
| LEFT | ||
| 017 | A 6342411301 | ENGINE SUPPORT |
| RIGHT | ||
| 022 | A 6342400001 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 022 | A 6342400401 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 022 | A 6342400401 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 023 | A 6342401801 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 023 | A 6342402101 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 023 | A 6342402101 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 024 | A 6342400102 | ENGINE SUPPORT |
| REAR LEFT | ||
| 025 | A 6292400218 | RUBBER MOUNTING |
| REAR LEFT | ||
| 064 | N 000000005563 | SCREW |
| M 18X1.5X50 10.9 | ||
| 065 | N 000000005564 | SCREW |
| M 18X1.5X60 10.9 | ||
| 066 | N 000000005561 | HEXAGON HEAD BOLT |
| M 18X1.5X35 10.9 | ||
| 066 | N 000000005561 | HEXAGON HEAD BOLT |
| M 18X1.5X35 10.9 | ||
| 066 | N 000000005559 | HEXAGON HEAD BOLT |
| M 18X1.5X45 10.9 | ||
| 066 | N 000000005559 | HEXAGON HEAD BOLT |
| M 18X1.5X45 10.9 | ||
| Repalced by: A 0179901201 | ||
| 066 | A 0179901201 | BOLT AND WASHER ASSY. |
| M 18X1.5X45 10.9 | ||
| 066 | N 000000005559 | HEXAGON HEAD BOLT |
| M 18X1.5X45 10.9 | ||
| Repalced by: A 0179901201 | ||
| 066 | A 0179901201 | BOLT AND WASHER ASSY. |
| M 18X1.5X45 10.9 | ||
| 068 | N 000000005291 | HEXAGON HEAD BOLT |
| M14X1.5X80 | ||
| 068 | N 000000005291 | HEXAGON HEAD BOLT |
| M14X1.5X80 | ||
| 068 | N 000000005717 | HEXAGON HEAD BOLT |
| M14X1.5X70-10.9 | ||
| 068 | N 000000005717 | HEXAGON HEAD BOLT |
| M14X1.5X70-10.9 | ||
| Repalced by: N 910105014009 | ||
| 068 | N 910105014009 | HEXAGON HEAD BOLT |
| M 14X1.5X70 10.9 | ||
| 070 | N 000000005662 | NUT |
| M 14X1.5 | ||
| 070 | N 000000005662 | NUT |
| M 14X1.5 | ||
| Repalced by: N 913023014003 | ||
| 070 | N 913023014003 | NUT |
| M 14X1.5 | ||
| 070 | N 913023014003 | NUT |
| M 14X1.5 | ||
| 072 | N 000000005515 | SCREW |
| M 14X1.5X25 10.9 | ||
| 072 | N 000000005518 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| 072 | N 000000005518 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| 072 | N 000000005519 | HEXAGON HEAD BOLT |
| M 14X1.5X35 10.9 | ||
| 072 | N 000000005519 | HEXAGON HEAD BOLT |
| M 14X1.5X35 10.9 | ||
| Repalced by: N 910105014013 | ||
| 072 | N 910105014013 | HEXAGON HEAD BOLT |
| M 14X1.5X35 10.9 | ||
| 072 | N 910105014013 | HEXAGON HEAD BOLT |
| M 14X1.5X35 10.9 | ||
| 072 | N 000000005718 | HEXAGON HEAD BOLT |
| M 14X1.5X45 10.9 | ||
| 072 | N 000000005718 | HEXAGON HEAD BOLT |
| M 14X1.5X45 10.9 | ||
| 072 | N 000000005517 | SCREW |
| M 14X1.5X50 10.9 | ||
| 072 | N 000000005716 | HEXAGON HEAD BOLT |
| M14X1.5X65 | ||
| 074 | N 000000005534 | HEXAGON HEAD BOLT |
| M 16X1.5X35 10.9 | ||
| 074 | N 000000005534 | HEXAGON HEAD BOLT |
| M 16X1.5X35 10.9 | ||
| 078 | N 000000005516 | HEXAGON HEAD BOLT |
| M 14X1.5X55 10.9 | ||
| 078 | N 000000005516 | HEXAGON HEAD BOLT |
| M 14X1.5X55 10.9 | ||
| 090 | A 6342401901 | ENGINE SUPPORT |
| STEEL | ||
| 093 | N 000000005519 | SCREW |
| M 14X1.5X35 10.9 | ||
| Repalced by: N 910105014013 | ||
| 093 | N 910105014013 | SCREW |
| M 14X1.5X35 10.9 | ||
| 096 | N 000000005561 | HEXAGON HEAD BOLT |
| M 18X1.5X35 10.9 | ||
| 096 | N 000000005561 | HEXAGON HEAD BOLT |
| M 18X1.5X35 10.9 | ||
| 099 | A 6342410003 | ENGINE SUPPORT |
| CASTING | ||
| 102 | N 000000005718 | HEXAGON HEAD BOLT |
| M 14X1.5X45 10.9 | ||
| 102 | N 000000005718 | HEXAGON HEAD BOLT |
| M 14X1.5X45 10.9 | ||
| 105 | N 000000005563 | HEXAGON HEAD BOLT |
| M 18X1.5X50 10.9 | ||
| 105 | N 000000005563 | HEXAGON HEAD BOLT |
| M 18X1.5X50 10.9 | ||
| 108 | A 6345020129 | SUPPORTING PLATE |
| 4 MM | ||
| 108 | A 6345020129 | SUPPORTING PLATE |
| 4 MM | ||
