Transporto priemonė: FAHRGESTELL - MULTEGO 2-ACHSER; VIN numerio dalis: 634663

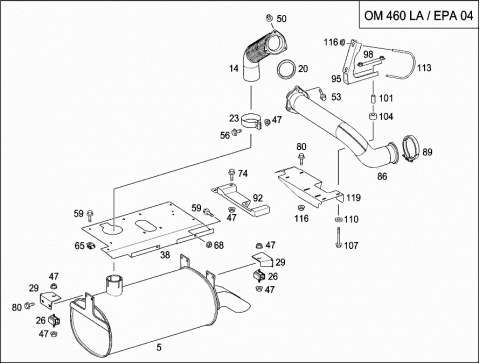

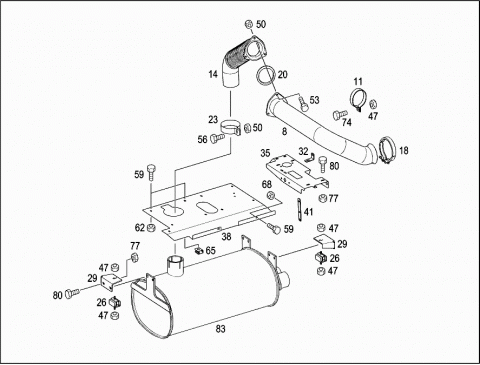

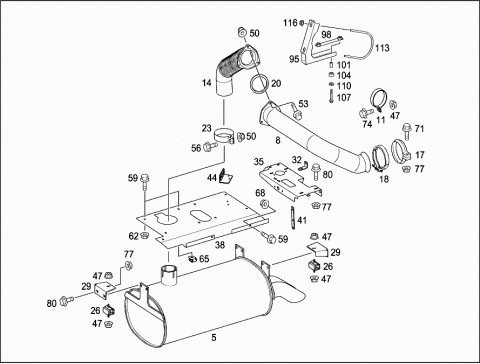

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6294910700 | MUFFLER |
| 005 | A 6294910700 | MUFFLER |
| 005 | A 6294910700 | MUFFLER |
| 008 | A 6344900610 | EXHAUST PIPE |
| LEFT | ||
| 011 | A 6294920040 | CLAMP |
| 014 | A 6344900310 | EXHAUST PIPE |
| RIGHT | ||
| 014 | A 6344900310 | EXHAUST PIPE |
| RIGHT | ||
| 014 | A 6344900310 | EXHAUST PIPE |
| RIGHT | ||
| 017 | A 9429970290 | CLAMP |
| 018 | A 0009958602 | CLAMP |
| 148MM | ||
| 020 | A 6294920080 | FLANGE GASKET |
| 140/116X18MM | ||
| 020 | A 6294920080 | FLANGE GASKET |
| 140/116X18MM | ||
| 020 | A 6294920080 | FLANGE GASKET |
| 140/116X18MM | ||
| 023 | A 0004921240 | CLAMP |
| 124,5MM | ||
| 023 | A 0004921240 | CLAMP |
| 124,5MM | ||
| Repalced by: A 6554920140 | ||
| 023 | A 6554920140 | CLAMP |
| 124,5MM | ||
| 023 | A 0004921240 | CLAMP |
| 124,5MM | ||
| Repalced by: A 6554920140 | ||
| 023 | A 6554920140 | CLAMP |
| 124,5MM | ||
| 023 | A 6554920140 | CLAMP |
| 124,5MM | ||
| 026 | A 0004910285 | RUBBER MOUNTING |
| 026 | A 0004910285 | RUBBER MOUNTING |
| 026 | A 0004910285 | RUBBER MOUNTING |
| 029 | A 6294910041 | BRACKET |
| 029 | A 6294910041 | BRACKET |
| 029 | A 6294910041 | BRACKET |
| 032 | A 6344920541 | BRACKET |
| 032 | A 6344920541 | BRACKET |
| 035 | A 6294910015 | CONSOLE |
| 038 | A 6348350281 | INSULATION |
| 038 | A 6348350281 | INSULATION |
| 038 | A 6348350281 | INSULATION |
| 038 | A 6348350281 | INSULATION |
| 038 | A 6348350981 | INSULATION |
| 038 | A 6348350981 | INSULATION |
| 038 | A 6348350981 | INSULATION |
| 041 | A 6294920141 | BRACKET |
| 044 | A 6285461843 | BRACKET |
| 047 | N 910112010001 | NUT |
| M10 | ||
| 047 | N 910112010001 | NUT |
| M10 | ||
| 047 | N 910112010001 | NUT |
| M10 | ||
| 050 | N 913023012002 | NUT |
| M12X1,5 | ||
| 050 | N 913023012002 | NUT |
| M12X1,5 | ||
| 050 | N 913023012002 | NUT |
| M12X1,5 | ||
| 053 | N 910105012021 | HEXAGON HEAD BOLT |
| M12X1,5X50MM | ||
| 053 | N 910105012021 | HEXAGON HEAD BOLT |
| M12X1,5X50MM | ||
| 053 | N 910105012021 | HEXAGON HEAD BOLT |
| M12X1,5X50MM | ||
| 056 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| 056 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 056 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| 056 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| Repalced by: N 910105010007 | ||
| 056 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 056 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 059 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25MM | ||
| 059 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 059 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 059 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 062 | N 913023008003 | NUT |
| M8 | ||
| 065 | A 0049941745 | SPRING NUT |
| 065 | A 0049941745 | SPRING NUT |
| 065 | A 0049941745 | SPRING NUT |
| 068 | N 910112006003 | HEXAGON NUT |
| M6 | ||
| 068 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 068 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 071 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40MM | ||
| 074 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 074 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 074 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 077 | N 910112008000 | NUT |
| M8 | ||
| 080 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 080 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 080 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 083 | A 6344900301 | EXHAUST MUFFLER |
| 086 | A 6344900910 | EXHAUST PIPE |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| 086 | A 6344900910 | EXHAUST PIPE |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| 089 | A 0009950533 | CLAMP |
| ONE-PART | ||
| 089 | A 0009950533 | CLAMP |
| ONE-PART | ||
| Repalced by: A 0009958602 | ||
| 089 | A 0009958602 | CLAMP |
| ONE-PART | ||
| 092 | A 6344910515 | CONSOLE |
| 095 | A 0004920641 | BRACKET |
| EXHAUST PIPE | ||
| 095 | A 0004920641 | BRACKET |
| EXHAUST PIPE | ||
| 098 | A 6344900044 | FASTENING PLATE |
| 098 | A 6344900044 | FASTENING PLATE |
| 101 | A 0004920050 | PILOT BUSHING |
| 101 | A 0004920050 | PILOT BUSHING |
| 104 | A 0004921082 | VIBRATION DAMPER |
| 104 | A 0004921082 | VIBRATION DAMPER |
| 107 | N 910105008017 | HEXAGON HEAD BOLT |
| M8X45MM | ||
| 107 | N 910105008017 | HEXAGON HEAD BOLT |
| M8X45MM | ||
| 110 | N 000000003250 | WASHER |
| 110 | N 000000003250 | WASHER |
| 113 | A 0004920127 | MOUNTING BRACKET |
| 113 | A 0004920127 | MOUNTING BRACKET |
| 116 | N 913023008003 | NUT |
| M8 | ||
| 116 | N 913023008003 | NUT |
| M8 | ||
| 119 | A 6344911115 | CONSOLE |
