Transporto priemonė: IBC 1842; VIN numerio dalis: 634160

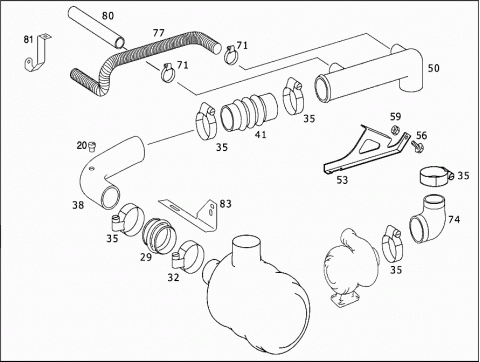

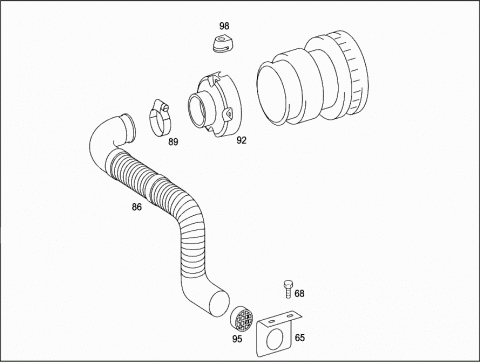

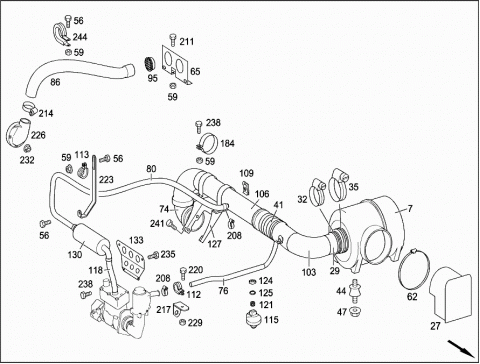

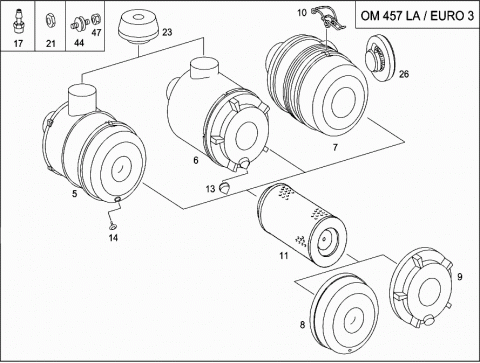

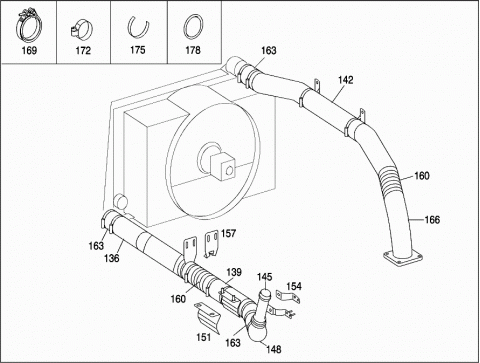

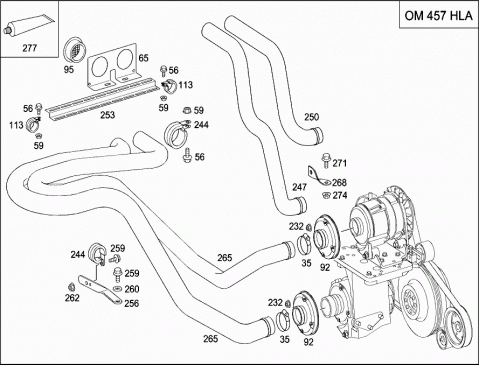

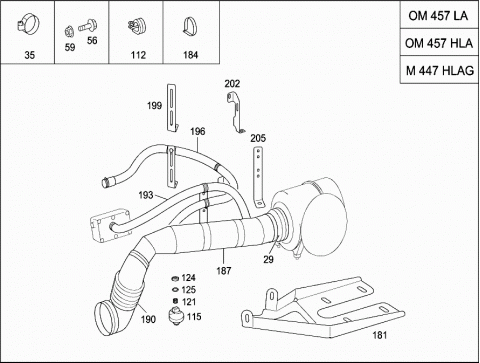

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0180944602 | AIR CLEANER |
| 006 | A 0180944202 | AIR CLEANER |
| 006 | A 0180944202 | AIR CLEANER |
| 007 | A 0180946202 | AIR CLEANER |
| 007 | A 0180946202 | AIR CLEANER |
| 008 | A 0010943603 | FILTER BOWL |
| 008 | A 0010943603 | FILTER BOWL |
| 009 | A 0010949606 | COVER |
| 010 | A 0000941255 | FASTENER |
| 011 | A 0040942204 | FILTER ELEMENT |
| 011 | A 0040941704 | FILTER CARTRIDGE |
| 011 | A 0040941704 | FILTER CARTRIDGE |
| 011 | A 0040941704 | FILTER CARTRIDGE |
| 013 | A 0000943465 | VALVE |
| 014 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 014 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 014 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 017 | A 0000940267 | THREADED NIPPLE |
| 020 | A 0005280209 | PIPE |
| 021 | A 6285280072 | NUT |
| 023 | A 0010941706 | COVER |
| 023 | A 0005280405 | COVER |
| 023 | A 0005280405 | COVER |
| 026 | A 0000900043 | COVER |
| 026 | A 0000900043 | COVER |
| 027 | A 6345280404 | SCOOP |
| 029 | A 0029970452 | HOSE |
| 029 | A 0029970452 | HOSE |
| 029 | A 0029970452 | HOSE |
| 032 | A 0009951236 | CLAMP |
| Repalced by: N 000000000678 | ||
| 032 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 032 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 032 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 032 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 032 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 032 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 032 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 032 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 035 | A 0009951336 | CLAMP |
| Repalced by: N 000000000680 | ||
| 035 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 035 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 035 | N 000000000680 | CLAMP |
| 130-170X12MM | ||
| 035 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 035 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 035 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 035 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| 035 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| 035 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| 035 | N 000000000645 | CLAMP |
| 90-110X12MM | ||
| 038 | A 6345200101 | AIR INTAKE PIPE |
| 041 | A 0249970882 | HOSE |
| 041 | A 0249970882 | HOSE |
| 044 | A 0005280185 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| M10X50X20 | ||
| 044 | A 0005280185 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| M10X50X20 | ||
| 044 | A 0005280185 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| M10X50X20 | ||
| 044 | A 0005280185 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| M10X50X20 | ||
| 044 | A 6285040212 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| 044 | A 6285040212 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| 047 | N 913023010002 | NUT |
| ATTACHMENT,AIR FILTER | ||
| M10 | ||
| 047 | N 913023010002 | NUT |
| ATTACHMENT,AIR FILTER | ||
| M10 | ||
| 050 | A 6345200201 | AIR INTAKE PIPE |
| 053 | A 6295280139 | SUPPORT |
| AIR INTAKE PIPE,REAR | ||
| 053 | A 6295280239 | SUPPORT |
| AIR INTAKE PIPE,FRONT | ||
| 056 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| Repalced by: N 910143008002 | ||
| 056 | N 910143008002 | HEXALOBULAR BOLT |
| M8X25 | ||
| 056 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 056 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 056 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 056 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 056 | N 000000005515 | HEXAGON HEAD BOLT |
| M14X1.5X25 | ||
| 059 | N 913023008003 | NUT |
| M8 | ||
| 059 | N 913023008003 | NUT |
| M8 | ||
| 059 | N 913023008003 | NUT |
| M8 | ||
| 062 | N 000000002136 | CLAMP |
| 180-200X12MM | ||
| 065 | A 6345280140 | BRACKET |
| Repalced by: A 6345280540 | ||
| 065 | A 6345280540 | BRACKET |
| MOUNTING FOR INTAKE PIPE | ||
| 065 | A 6345280540 | BRACKET |
| MOUNTING FOR INTAKE PIPE | ||
| 065 | A 6345280540 | BRACKET |
| MOUNTING FOR INTAKE PIPE | ||
| 065 | A 6345280540 | BRACKET |
| MOUNTING FOR INTAKE PIPE | ||
| 068 | N 910105008026 | HEXAGON HEAD BOLT |
| AT BRACKET | ||
| M8X20 | ||
| Repalced by: N 000000000276 | ||
| 068 | N 000000000276 | SCREW |
| AT BRACKET | ||
| M8X20 | ||
| 071 | N 000000000668 | CLAMP |
| 25-40X12MM | ||
| 074 | A 0029970552 | HOSE |
| Repalced by: A 0029975552 | ||
| 074 | A 0029975552 | HOSE |
| (INTAKE HOSE) | ||
| 074 | A 0029975552 | HOSE |
| (INTAKE HOSE) | ||
| 076 | A 6345280482 | HOSE |
| (INTAKE HOSE) | ||
| 076 | A 6345280482 | HOSE |
| (INTAKE HOSE) | ||
| 077 | A 3909970682 | HOSE |
| A 6345280382 | HOSE | |
| 080 | A 0029975652 | HOSE |
| 080 | A 0029975652 | HOSE |
| 081 | A 6298321213 | BRACKET |
| A 6345280240 | BRACKET | |
| 083 | A 6345280440 | BRACKET |
| A 0029973652 | HOSE | |
| 820MM | ||
| 086 | A 0029974752 | HOSE |
| 1200MM | ||
| 086 | A 0029974752 | HOSE |
| 1200MM | ||
| 086 | A 0029973252 | HOSE |
| 2385MM | ||
| 086 | A 0029973252 | HOSE |
| 2385MM | ||
| 086 | A 0029973252 | HOSE |
| 2385MM | ||
| 086 | A 0029974052 | HOSE |
| 2500MM | ||
| 086 | A 0029973852 | HOSE |
| 1420MM | ||
| 086 | A 0069976652 | SUCTION HOSE |
| 1420MM | ||
| 089 | N 000000000673 | CLAMP |
| 60-80X12MM | ||
| 089 | N 000000000673 | CLAMP |
| 60-80X12MM | ||
| 089 | N 000000000673 | CLAMP |
| 60-80X12MM | ||
| 089 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| 089 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 092 | A 4071540165 | COVER |
| 092 | A 4421540104 | COVER WITH AIR INTAKE |
| AIR INTAKE | ||
| 092 | A 4071540165 | COVER |
| 092 | A 4071540165 | COVER |
| 092 | A 4071540165 | COVER |
| 092 | A 4421540104 | COVER WITH AIR INTAKE |
| AIR INTAKE | ||
| 092 | A 4071540165 | COVER |
| 092 | A 4071540165 | COVER |
| 095 | A 0005280001 | PROTECTIVE GRILLE |
| AIR INTAKE TO ALTERNATOR | ||
| 095 | A 6285280001 | PROTECTIVE GRILLE |
| 095 | A 0005280001 | PROTECTIVE GRILLE |
| 095 | A 0005280001 | PROTECTIVE GRILLE |
| 095 | A 0005280001 | PROTECTIVE GRILLE |
| 098 | A 0001541280 | CABLE GROMMET |
| 098 | A 0001541280 | CABLE GROMMET |
| 098 | A 0001541280 | CABLE GROMMET |
| 098 | A 0001541280 | CABLE GROMMET |
| 098 | A 0001541280 | CABLE GROMMET |
| 103 | A 6345201001 | AIR INTAKE PIPE |
| 106 | A 6345200901 | AIR INTAKE PIPE |
| 109 | A 0039941545 | NUT |
| 109 | A 0029942145 | NUT |
| 112 | N 916016028200 | CLAMP |
| 28/20MM | ||
| Repalced by: N 000000006228 | ||
| 112 | N 000000006228 | CLAMP |
| 28/20MM | ||
| 112 | N 916016050201 | CLAMP |
| 50/20MM | ||
| Repalced by: N 000000004045 | ||
| 112 | N 000000004045 | CLAMP |
| 50/20MM | ||
| 112 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 112 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 112 | N 916016018201 | CLAMP |
| 18/15MM | ||
| Repalced by: N 000000000324 | ||
| 112 | N 000000000324 | CLAMP |
| 18/15MM | ||
| 112 | N 916016028202 | CLAMP |
| 28/15MM | ||
| Repalced by: N 000000000329 | ||
| 112 | N 916016028204 | CLAMP |
| 28/15MM | ||
| 112 | N 916016028202 | CLAMP |
| 28/15MM | ||
| Repalced by: N 000000000329 | ||
| 112 | N 000000000329 | CLAMP |
| 28/15MM | ||
| Repalced by: A 0019951842 | ||
| 112 | A 0019951842 | MOUNTING CLAMP |
| 28/15MM | ||
| 113 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 113 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 113 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 113 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 113 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 113 | N 000000005975 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000007514 | ||
| 113 | N 000000007514 | CLAMP |
| 35/20MM | ||
| 115 | A 0135422917 | SENDER UNIT |
| 115 | A 0135422917 | SENDER UNIT |
| 118 | A 0029971752 | HOSE |
| (INTAKE HOSE) | ||
| 121 | A 0000940276 | FELT WASHER |
| 121 | A 0000940276 | FELT WASHER |
| 124 | A 0004291127 | THRUST RING |
| 14X10X2.6MM | ||
| 124 | A 0004291127 | THRUST RING |
| 14X10X2.6MM | ||
| 125 | A 0269970248 | O-RING |
| 125 | A 0269970248 | O-RING |
| 127 | A 6345280139 | CONSOLE |
| Repalced by: A 6345280839 | ||
| 127 | A 6345280839 | CONSOLE |
| 130 | A 0005200002 | RESONATOR |
| 133 | A 6295500254 | MOUNTING PLATE |
| 136 | A 6345000888 | LINE |
| 136 | A 6345281108 | AIR INTAKE PIPE |
| 139 | A 6345000988 | LINE |
| 139 | A 6345281208 | AIR INTAKE PIPE |
| 142 | A 6345200050 | PROTECTIVE TUBE |
| 142 | A 6345281308 | AIR INTAKE PIPE |
| 145 | A 6345000788 | LINE |
| 148 | A 4570981307 | CHARGING AIR LINE |
| Repalced by: A 4570986507 | ||
| 148 | A 4570986507 | CHARGING AIR LINE |
| 151 | A 6295010570 | BRACKET |
| 154 | A 6345010070 | BRACKET |
| 157 | A 6345010170 | BRACKET |
| 160 | A 0249970382 | HOSE |
| 100 X 190 MM | ||
| 163 | A 0020946982 | HOSE |
| 166 | A 6345281209 | PIPE |
| 169 | A 0019955565 | CLAMP |
| 172 | A 0059970690 | CLAMP |
| 175 | A 6295040184 | SHIM |
| 178 | A 0269973848 | SEAL RING |
| 181 | A 6345280039 | SUPPORT |
| 184 | A 0005280043 | CLAMP |
| 184 | A 0005280043 | CLAMP |
| 187 | A 6345201301 | AIR INTAKE PIPE |
| 190 | A 6285280382 | HOSE |
| 193 | A 0029977052 | HOSE |
| 196 | A 0029975852 | HOSE |
| 199 | A 6345043540 | BRACKET |
| 202 | A 0000942127 | BRACKET |
| 205 | A 6345280840 | BRACKET |
| 208 | N 000000000667 | CLAMP |
| 20-32X12MM | ||
| 211 | N 910105008045 | HEXAGON HEAD BOLT |
| M8X55 | ||
| 214 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 217 | A 0004313740 | BRACKET |
| 220 | N 910105006008 | HEXAGON HEAD BOLT |
| M6X25 | ||
| 220 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 223 | A 6345041940 | BRACKET |
| 226 | A 4571540304 | COVER |
| 229 | N 913023006002 | NUT |
| M6 | ||
| 232 | N 910112006002 | HEXAGON NUT |
| M6 | ||
| 232 | N 913023006002 | NUT |
| M6 | ||
| 235 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 235 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 238 | N 910105008060 | HEXAGON HEAD BOLT |
| M8X35 | ||
| 241 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 244 | N 000000003186 | CLAMP |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| 244 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 244 | N 000000003186 | CLAMP |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| 244 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 244 | N 000000006124 | CLAMP |
| 25/15MM | ||
| Repalced by: A 0019951642 | ||
| 244 | A 0019951642 | MOUNTING CLAMP |
| 25/15MM | ||
| 247 | A 0029973852 | HOSE |
| SHORT VERSION | ||
| 1420MM | ||
| 247 | A 0029973852 | HOSE |
| SHORT VERSION | ||
| 1420MM | ||
| 247 | A 0069976652 | SUCTION HOSE |
| SHORT VERSION | ||
| 1420MM | ||
| 247 | A 0029973852 | HOSE |
| SHORT VERSION | ||
| 1420MM | ||
| 250 | A 0029973752 | HOSE |
| SHORT VERSION | ||
| 1200MM | ||
| 250 | A 0029973752 | HOSE |
| SHORT VERSION | ||
| 1200MM | ||
| 250 | A 0069976752 | SUCTION HOSE |
| SHORT VERSION | ||
| 1200MM | ||
| 250 | A 0029973752 | HOSE |
| SHORT VERSION | ||
| 1200MM | ||
| 250 | A 0069976752 | SUCTION HOSE |
| SHORT VERSION | ||
| 1200MM | ||
| 253 | A 6279850549 | "Z" SECTION |
| 555MM | ||
| 253 | A 6299850549 | "Z" SECTION |
| 720X71,5X1,5MM | ||
| 256 | A 6345045040 | BRACKET |
| 256 | A 6345045040 | BRACKET |
| 259 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 259 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 259 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 259 | N 000000005515 | HEXAGON HEAD BOLT |
| M14X1.5X25 | ||
| 260 | N 000000003398 | WASHER |
| 262 | N 913023010002 | NUT |
| M10 | ||
| 262 | N 913023010002 | NUT |
| M8 | ||
| 265 | A 0029974052 | HOSE |
| LONG VERSION | ||
| 2500MM | ||
| 265 | A 0029974052 | HOSE |
| LONG VERSION | ||
| 2500MM | ||
| 268 | A 6345045140 | BRACKET |
| 271 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 274 | N 913023008003 | NUT |
| M8 | ||
| 277 | A 0079899071 | SEALING CEMENT |
| 225G | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
