Transporto priemonė: IBC-FAHRGESTELL-BUGGY 2-ACHSER NAFTA; VIN numerio dalis: 634300

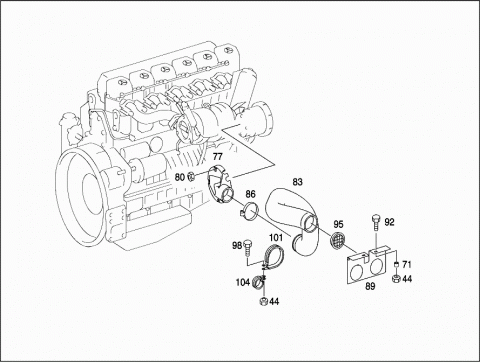

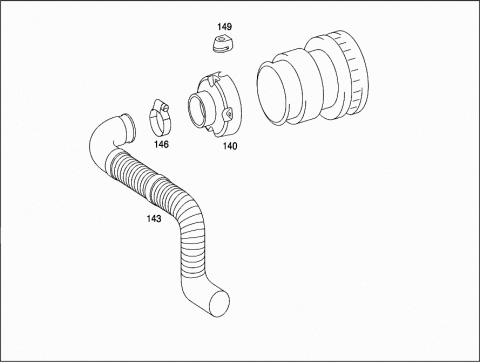

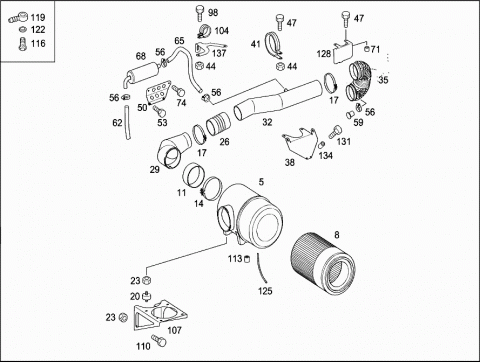

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0180948402 | AIR CLEANER |
| 008 | A 0040943704 | FILTER ELEMENT |
| 008 | A 0040943904 | FILTER ELEMENT |
| 011 | A 0005280682 | HOSE |
| L = 75 MM | ||
| 014 | N 000000002136 | CLAMP |
| 180-200X12MM | ||
| 017 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 017 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 020 | A 0005280185 | RUBBER MOUNTING |
| M10X50X20 | ||
| 023 | N 913023010002 | NUT |
| M10 | ||
| 026 | A 0249970882 | HOSE |
| 175MM | ||
| 029 | A 6345201701 | AIR INTAKE PIPE |
| 032 | A 6345201801 | AIR INTAKE PIPE |
| 035 | A 9405281982 | HOSE |
| 038 | A 6345280239 | SUPPORT |
| 041 | A 0005280043 | CLAMP |
| 044 | N 913023008003 | NUT |
| M8 | ||
| 047 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 050 | A 6295500254 | MOUNTING PLATE |
| 050 | A 6345500054 | MOUNTING PLATE |
| 053 | N 910105008060 | HEXAGON HEAD BOLT |
| M8X35 | ||
| 056 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 059 | A 0009983350 | PLUG |
| 25MM | ||
| 062 | A 0029971752 | HOSE |
| 265MM | ||
| 065 | A 0029977052 | HOSE |
| 920MM | ||
| 068 | A 0005200002 | RESONATOR |
| 071 | A 0009912740 | SPACER BUSH |
| 074 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| Repalced by: N 910143008000 | ||
| 074 | N 910143008000 | HEXALOBULAR BOLT |
| M8X16 | ||
| 077 | A 4571540004 | COVER |
| 077 | A 4571540304 | COVER |
| AIR INTAKE | ||
| 080 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| Repalced by: N 910112006003 | ||
| 080 | N 910112006003 | HEXAGON NUT |
| M6 | ||
| 083 | A 0029974752 | HOSE |
| 1200MM | ||
| Repalced by: A 0029973752 | ||
| 083 | A 0029973752 | HOSE |
| 1200MM | ||
| 083 | A 0069976752 | SUCTION HOSE |
| 1200MM | ||
| 086 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| Repalced by: N 000000003529 | ||
| 086 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 089 | A 6345280540 | BRACKET |
| 092 | N 910105008045 | HEXAGON HEAD BOLT |
| M8X55 | ||
| 095 | A 0005280001 | PROTECTIVE GRILLE |
| 098 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| Repalced by: N 910105008039 | ||
| 098 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 101 | N 000000003186 | CLAMP |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| 101 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 104 | N 000000001485 | CLAMP |
| 34/20MM | ||
| Repalced by: N 916016035201 | ||
| 104 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 104 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 107 | A 6345280339 | SUPPORT |
| 110 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 113 | A 0005280209 | PIPE |
| 116 | N 915036006200 | BANJO BOLT |
| B6 | ||
| Repalced by: N 000000004896 | ||
| 116 | N 000000004896 | BANJO BOLT |
| A6 | ||
| 119 | N 915052006003 | BANJO UNION |
| 6/10MM | ||
| Repalced by: N 000000006697 | ||
| 119 | N 000000006697 | BANJO UNION |
| 6/10MM | ||
| 122 | N 007603010110 | SEALING RING |
| 10X13.5-CU | ||
| 125 | A 0259978382 | HOSE |
| 128 | A 6345280022 | COVERING |
| 131 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40 | ||
| Repalced by: N 910105008017 | ||
| 131 | N 910105008017 | HEXAGON HEAD BOLT |
| M8X45 | ||
| 134 | A 0003270153 | SPACER SLEEVE |
| 28MM | ||
| 137 | A 6345046640 | BRACKET |
| 140 | A 4421540104 | COVER WITH AIR INTAKE |
| AIR INTAKE | ||
| 143 | A 0029973252 | HOSE |
| IDLING ADJUSTMENT | ||
| 2385MM | ||
| 146 | N 000000000673 | CLAMP |
| 60-80X12MM | ||
| 149 | A 0001541280 | CABLE GROMMET |
