Transporto priemonė: IBC-FAHRGESTELL-BUGGY 2-ACHSER NAFTA; VIN numerio dalis: 634300

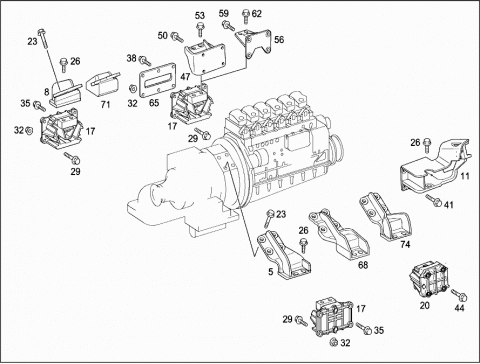

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6342400001 | ENGINE SUPPORT |
| LEFT,STEEL | ||
| 008 | A 6342400101 | ENGINE SUPPORT |
| RIGHT,STEEL | ||
| 008 | A 6342402101 | ENGINE SUPPORT |
| RIGHT,STEEL | ||
| 011 | A 6342400102 | ENGINE SUPPORT |
| LEFT REAR | ||
| 017 | A 6282401417 | RUBBER MOUNTING |
| Repalced by: A 6282402117 | ||
| 017 | A 6282402117 | RUBBER MOUNTING |
| FRONT AND REAR | ||
| 020 | A 6292400218 | RUBBER MOUNTING |
| LEFT REAR | ||
| 023 | N 910105018022 | HEXAGON HEAD BOLT |
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 023 | N 000000005563 | SCREW |
| M18X1,5X50MM | ||
| 023 | N 000000005559 | SCREW |
| CAST VERSION | ||
| M18X1,5X45MM | ||
| Repalced by: A 0179901201 | ||
| 023 | A 0179901201 | BOLT AND WASHER ASSY. |
| CAST VERSION | ||
| M18X1,5X45MM | ||
| 023 | N 000000005564 | SCREW |
| CAST VERSION | ||
| M18X1,5X60MM | ||
| 026 | N 910105018020 | SCREW |
| M18X1,5X35MM | ||
| Repalced by: N 000000005561 | ||
| 026 | N 000000005561 | SCREW |
| M18X1,5X35MM | ||
| 029 | N 910105014006 | SCREW |
| M14X1,5X65MM | ||
| Repalced by: N 000000005716 | ||
| 029 | N 000000005716 | HEXAGON HEAD BOLT |
| M14X1.5X65 | ||
| 029 | N 000000005717 | HEXAGON HEAD BOLT |
| M14X1.5X70-10.9 | ||
| Repalced by: N 910105014009 | ||
| 029 | N 910105014009 | SCREW |
| M14X1,5X70MM | ||
| 029 | N 000000005291 | HEXAGON HEAD BOLT |
| M14X1.5X80 | ||
| 032 | N 913023014003 | NUT |
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 032 | N 000000005662 | NUT |
| M14X1,5 | ||
| Repalced by: N 913023014003 | ||
| 032 | N 913023014003 | NUT |
| M14X1.5 | ||
| 035 | N 910105014013 | SCREW |
| M14X1,5X35MM | ||
| Repalced by: N 000000005519 | ||
| 035 | N 000000005519 | SCREW |
| M14X1,5X35MM | ||
| Repalced by: N 910105014013 | ||
| 035 | N 910105014013 | SCREW |
| M14X1,5X35MM | ||
| 038 | N 910105014007 | SCREW |
| M14X1,5X25MM | ||
| Repalced by: N 000000005515 | ||
| 038 | N 000000005515 | SCREW |
| M14X1,5X25MM | ||
| 041 | N 910105014008 | SCREW |
| M14X1,5X55MM | ||
| Repalced by: N 000000005516 | ||
| 041 | N 000000005516 | SCREW |
| M14X1,5X55MM | ||
| 044 | N 910105014012 | SCREW |
| M14X1,5X30MM | ||
| Repalced by: N 000000005518 | ||
| 044 | N 000000005518 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| 047 | A 6342401501 | ENGINE SUPPORT |
| STEEL | ||
| 050 | N 000000005519 | SCREW |
| M14X1,5X35MM | ||
| Repalced by: N 910105014013 | ||
| 050 | N 910105014013 | SCREW |
| M14X1,5X35MM | ||
| 053 | N 000000005561 | SCREW |
| M18X1,5X35MM | ||
| 056 | A 6342401401 | ENGINE SUPPORT |
| CASTING | ||
| 059 | N 000000005718 | SCREW |
| M14X1,5X45MM | ||
| 059 | N 000000005718 | SCREW |
| M14X1,5X45MM | ||
| 059 | N 000000005517 | SCREW |
| M14X1,5X50MM | ||
| 062 | N 000000005563 | SCREW |
| M18X1,5X50MM | ||
| 065 | A 6345020029 | SUPPORTING PLATE |
| ONLY REQUIRED IF NECESSARY | ||
| 12MM | ||
| 065 | A 6345020029 | SUPPORTING PLATE |
| 12MM | ||
| 065 | A 6342410226 | INTERMEDIATE LAYER |
| 8MM | ||
| 068 | A 6342411201 | ENGINE SUPPORT |
| LEFT, CASTING | ||
| 071 | A 6342411301 | ENGINE SUPPORT |
| RIGHT, CASTING | ||
| 074 | A 6342400401 | ENGINE SUPPORT |
| FRONT LEFT | ||
