Transporto priemonė: IBC-FAHRGESTELL-BUGGY 2-ACHSER NAFTA; VIN numerio dalis: 634300

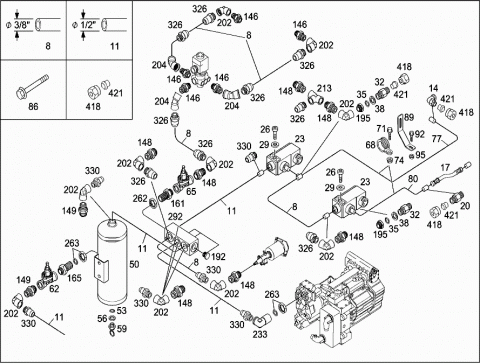

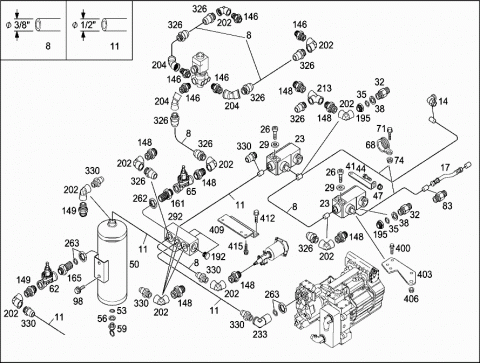

Grupė: 43 EXHAUST BRAKE - 060 ENGINE SHUT-OFF AND EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0009876127 | PLASTIC PIPE |
| 3/8" | ||
| 011 | A 0009876227 | PLASTIC PIPE |
| 1/2" | ||
| 014 | N 000000006198 | FITTING |
| L 8-ST | ||
| 017 | A 0029976952 | HOSE |
| DN4 | ||
| 020 | A 0009971070 | REDUCTION FITTING |
| 023 | A 0049975536 | SOLENOID VALVE |
| SOLENOID VALVE | ||
| Repalced by: A 0059971236 | ||
| 023 | A 0059971236 | VALVE |
| SOLENOID VALVE | ||
| Repalced by: A 0009820217 | ||
| 023 | A 0009820217 | SOLENOID VALVE |
| SOLENOID VALVE | ||
| 3/2-NW4 | ||
| 026 | A 0039908812 | SCREW |
| M6X12 TX30 | ||
| 026 | A 0039908812 | SCREW |
| M6X12 TX30 | ||
| 029 | N 007603006106 | SEALING RING |
| 6X10 CU | ||
| 029 | N 007603006106 | SEALING RING |
| 6X10 CU | ||
| 032 | A 0039908768 | FITTING |
| M12X1.5/M14X1.5 | ||
| 035 | A 0129971345 | SEAL RING |
| 10X2.2 | ||
| Repalced by: A 0019970845 | ||
| 035 | A 0019970845 | SEAL RING |
| 10X2.2 | ||
| 038 | A 0009940103 | THRUST RING |
| 18X12.1X2.6 | ||
| 041 | A 0015463843 | BRACKET |
| 044 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 047 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 050 | A 6294300003 | RESERVOIR |
| 7L | ||
| Repalced by: A 0004300503 | ||
| 050 | A 0004300503 | RESERVOIR |
| 053 | A 0129971445 | SEAL RING |
| 20.3X2.4 | ||
| 056 | A 0009940203 | THRUST RING |
| 29X22.1X2.6 | ||
| 059 | A 0004323007 | VALVE |
| 062 | A 0014296544 | OVERFLOW VALVE |
| 065 | A 0034316706 | PRESSURE LIMITER |
| 2.4BAR | ||
| 068 | N 000000000319 | CLAMP |
| 8/15 | ||
| Repalced by: N 000000007510 | ||
| 068 | N 000000007510 | CLAMP |
| 8/15 | ||
| 068 | N 000000000319 | CLAMP |
| 8/15 | ||
| Repalced by: N 000000007510 | ||
| 068 | N 000000007510 | CLAMP |
| 8/15 | ||
| 071 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 074 | N 913023005002 | NUT |
| M5 | ||
| 077 | A 6344201430 | LINE |
| 1385 LG | ||
| 077 | A 6344203034 | COMPRESSED AIR LINE |
| D=8 | ||
| 080 | A 6344201330 | LINE |
| 1122 LG | ||
| 080 | A 6344202934 | COMPRESSED AIR LINE |
| D=8 | ||
| 083 | A 0029975672 | FITTING |
| 086 | N 910105008075 | HEXAGON HEAD BOLT |
| AM8X100 | ||
| 089 | A 6344324440 | BRACKET |
| 092 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| Repalced by: N 000000000276 | ||
| 092 | N 000000000276 | SCREW |
| M8X20 | ||
| 095 | N 913023008002 | NUT |
| M8 | ||
| 098 | N 910105012013 | HEXAGON HEAD BOLT |
| M12X1.5X25 | ||
| Repalced by: N 910105012003 | ||
| 098 | N 910105012003 | HEXAGON HEAD BOLT |
| M12X1.5X25 | ||
| 146 | A 0079976672 | FITTING |
| P5/M12X1.5 | ||
| 148 | A 0079976872 | FITTING |
| P5/M16X1.5 | ||
| 149 | A 0079976972 | FITTING |
| P5/M22X1.5 | ||
| 161 | A 0079977372 | FITTING |
| M16X1.5/M16X1.5 | ||
| 165 | A 0079977672 | FITTING |
| M22X1.5/M22X1.5/M16X1.5 | ||
| 192 | A 0019974235 | PLUG |
| M16X1.5 | ||
| 195 | A 0009901682 | REDUCER |
| WITH O-RING | ||
| M16X1.5/M12X1.5 | ||
| 202 | A 0039907271 | PIPE BEND |
| P5/M16X1.5/90GRAD | ||
| 204 | A 0039907371 | ELBOW FITTING |
| 45GRAD/P5/M16X1.5 | ||
| 213 | A 0009976974 | T-FITTING |
| P5/M16X1.5 | ||
| 233 | A 0039907771 | ELBOW FITTING |
| M16X1.5/M22X1.5 | ||
| 262 | A 0049905851 | NUT |
| WITH O-RING | ||
| M16X1.5 | ||
| 263 | A 0049905951 | NUT |
| WITH O-RING | ||
| M22X1.5 | ||
| 292 | A 0004200161 | DISTRIBUTOR |
| M16 | ||
| 326 | A 0049903768 | FITTING |
| 3/8" 16X1.5 | ||
| 330 | A 0049904168 | FITTING |
| 1/2" 16X1.5 | ||
| 400 | N 910105012013 | HEXAGON HEAD BOLT |
| M8X20 | ||
| Repalced by: N 910105012003 | ||
| 400 | N 910105012003 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 403 | A 6292680868 | PLATE |
| 406 | N 913023008002 | NUT |
| M8 | ||
| 409 | A 6295010622 | BRACKET |
| 412 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| Repalced by: N 910143008020 | ||
| 412 | N 910143008020 | HEXALOBULAR BOLT |
| M8X12 | ||
| 415 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| Repalced by: N 910143008000 | ||
| 415 | N 910143008000 | HEXALOBULAR BOLT |
| M8X16 | ||
| 418 | A 0019906554 | NUT |
| AL8/M14X1.5 | ||
| 421 | A 0019908867 | CUTTING RING |
| BS8 | ||
