Transporto priemonė: IBC-FAHRGESTELL-BUGGY 2-ACHSER NAFTA; VIN numerio dalis: 634300

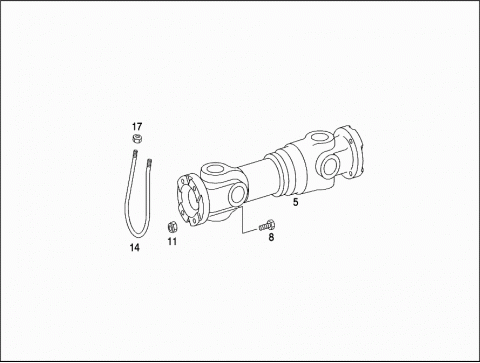

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0004100802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 005 | A 0004102601 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 005 | A 0014104306 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 008 | A 0079901301 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M12X1,25X42MM | ||
| 008 | N 000000005477 | SCREW |
| CONNECTION TO AXLE, NUTS SHAFT-SIDE | ||
| M14X1,5X50MM | ||
| 009 | A 0079901301 | SCREW |
| CONNECTION TO TRANSMISSION, NUTS SHAFT-SIDE | ||
| M12X1,25X42MM | ||
| 011 | N 308673012003 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M12X1,25 | ||
| 011 | N 000000005585 | HEXAGON NUT |
| CONNECTION TO AXLE, NUTS SHAFT-SIDE | ||
| M14X1,5 | ||
| 012 | N 308673012003 | NUT |
| CONNECTION TO TRANSMISSION, NUTS SHAFT-SIDE | ||
| M12X1,25 | ||
| 014 | A 6344110040 | BRACKET |
| PROPELLER SHAFT | ||
| 017 | N 910112010001 | NUT |
| M10 |
