Transporto priemonė: IBC-FAHRGESTELL 2-ACHSER; VIN numerio dalis: 634410

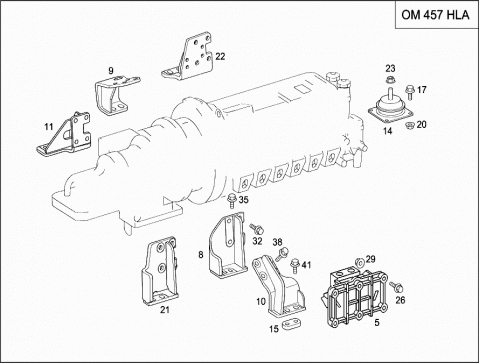

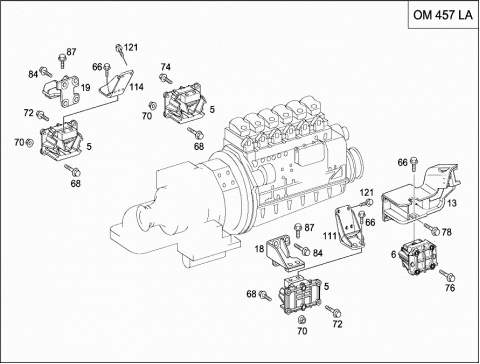

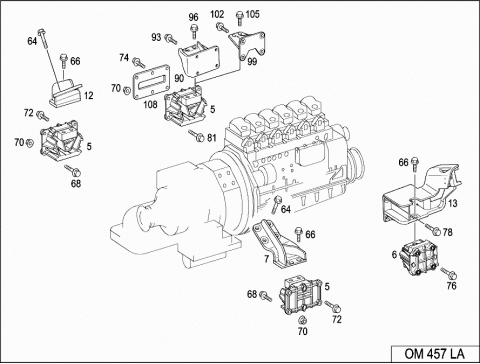

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6282402117 | RUBBER MOUNTING |
| LEFT AND RIGHT | ||
| 005 | A 6282402117 | RUBBER MOUNTING |
| LEFT AND RIGHT | ||
| 005 | A 6282402117 | RUBBER MOUNTING |
| LEFT AND RIGHT | ||
| 006 | A 6292400218 | RUBBER MOUNTING |
| REAR LEFT | ||
| 007 | A 6342400401 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 007 | A 6342400401 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 008 | A 6342400201 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 009 | A 6342400701 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 010 | A 6342400601 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 011 | A 6342400301 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 012 | A 6342400501 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 012 | A 6342402101 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 013 | A 6342400102 | ENGINE SUPPORT |
| REAR LEFT | ||
| 014 | A 6342400117 | RUBBER MOUNTING |
| REAR LEFT AND RIGHT | ||
| 015 | A 6292410510 | SUPPORTING PLATE |
| 017 | N 910105012007 | HEXAGON HEAD BOLT |
| M12X1,5X30MM | ||
| 018 | A 6342400801 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 019 | A 6342400901 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 021 | A 6342402201 | ENGINE MOUNT |
| LEFT FRONT | ||
| 020 | N 913023012002 | NUT |
| M12X1,5 | ||
| 022 | A 6342402301 | ENGINE MOUNT |
| RIGHT FRONT | ||
| 023 | N 913023016001 | NUT |
| M16X1,5 | ||
| Repalced by: N 000000005738 | ||
| 023 | N 000000005738 | NUT |
| M16X1,5 | ||
| 026 | N 910105014007 | SCREW |
| M14X1,5 | ||
| Repalced by: N 000000005515 | ||
| 026 | N 000000005515 | HEXAGON HEAD BOLT |
| M14X1,5 | ||
| 026 | N 910105014012 | SCREW |
| M14X1,5X30MM | ||
| Repalced by: N 000000005518 | ||
| 026 | N 000000005518 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| 026 | N 910105014019 | SCREW |
| M14X1,5X60MM | ||
| Repalced by: N 000000005721 | ||
| 026 | N 000000005721 | HEXAGON HEAD BOLT |
| M14X1.5X60 | ||
| 029 | N 913023014003 | NUT |
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 029 | N 000000005662 | NUT |
| M14X1,5 | ||
| Repalced by: N 913023014003 | ||
| 029 | N 913023014003 | NUT |
| M14X1.5 | ||
| 032 | N 910105016004 | SCREW |
| M16X1,5X40MM | ||
| Repalced by: N 000000005535 | ||
| 032 | N 000000005535 | SCREW |
| M16X1,5X40MM | ||
| 035 | N 910105018020 | SCREW |
| M18X1,5X35MM | ||
| Repalced by: N 000000005561 | ||
| 035 | N 000000005561 | HEXAGON HEAD BOLT |
| M18X1,5X35MM | ||
| 038 | N 910105018018 | SCREW |
| M18X1,5X40MM | ||
| Repalced by: N 000000005559 | ||
| 038 | N 000000005559 | SCREW |
| M18X1,5X40MM | ||
| Repalced by: A 0179901201 | ||
| 038 | A 0179901201 | BOLT AND WASHER ASSY. |
| M18X1,5X40MM | ||
| 041 | N 910105018020 | SCREW |
| M18X1,5X35MM | ||
| Repalced by: N 000000005561 | ||
| 041 | N 000000005561 | SCREW |
| M18X1,5X35MM | ||
| 041 | N 910105018022 | HEXAGON HEAD BOLT |
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 041 | N 000000005563 | SCREW |
| M18X1,5X50MM | ||
| N 000000005534 | HEXAGON HEAD BOLT | |
| M16X1,5X35MM | ||
| 064 | N 910105018018 | SCREW |
| M18X1,5X40MM | ||
| Repalced by: N 000000005559 | ||
| 064 | N 000000005559 | SCREW |
| M18X1,5X40MM | ||
| Repalced by: A 0179901201 | ||
| 064 | A 0179901201 | BOLT AND WASHER ASSY. |
| M18X1,5X40MM | ||
| 066 | N 910105018020 | SCREW |
| M18X1,5X35MM | ||
| Repalced by: N 000000005561 | ||
| 066 | N 000000005561 | SCREW |
| M18X1,5X35MM | ||
| 068 | N 000000005716 | HEXAGON HEAD BOLT |
| M14X1.5X65 | ||
| 068 | N 000000005717 | HEXAGON HEAD BOLT |
| M14X1.5X70-10.9 | ||
| Repalced by: N 910105014009 | ||
| 068 | N 910105014009 | SCREW |
| M14X1,5X70MM | ||
| 068 | N 000000005291 | HEXAGON HEAD BOLT |
| M14X1.5X80 | ||
| 070 | N 913023014003 | NUT |
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 070 | N 000000005662 | NUT |
| M14X1,5 | ||
| Repalced by: N 913023014003 | ||
| 070 | N 913023014003 | NUT |
| M14X1.5 | ||
| 072 | N 910105014013 | SCREW |
| M14X1,5X35MM | ||
| Repalced by: N 000000005519 | ||
| 072 | N 000000005519 | SCREW |
| M14X1,5X35MM | ||
| Repalced by: N 910105014013 | ||
| 072 | N 910105014013 | SCREW |
| M14X1,5X35MM | ||
| 072 | N 000000005718 | SCREW |
| M14X1,5X45MM | ||
| 074 | N 910105014007 | SCREW |
| M14X1,5X25MM | ||
| Repalced by: N 000000005515 | ||
| 074 | N 000000005515 | SCREW |
| M14X1,5X25MM | ||
| 076 | N 910105014012 | SCREW |
| M14X1,5X30MM | ||
| Repalced by: N 000000005518 | ||
| 076 | N 000000005518 | HEXAGON HEAD BOLT |
| M14X1.5X30 | ||
| 078 | N 910105014008 | SCREW |
| M14X1,5X55MM | ||
| Repalced by: N 000000005516 | ||
| 078 | N 000000005516 | SCREW |
| M14X1,5X55MM | ||
| 081 | N 910105014011 | SCREW |
| M14X1,5X50MM | ||
| Repalced by: N 000000005517 | ||
| 081 | N 000000005517 | SCREW |
| M14X1,5X50MM | ||
| 084 | N 910105016004 | SCREW |
| M16X1,5X40MM | ||
| Repalced by: N 000000005535 | ||
| 084 | N 000000005535 | SCREW |
| M16X1,5X40MM | ||
| Repalced by: N 000000005543 | ||
| 084 | N 000000005543 | HEXAGON HEAD BOLT |
| M16X1,5X40MM | ||
| 087 | N 910105018022 | HEXAGON HEAD BOLT |
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 087 | N 000000005563 | SCREW |
| M18X1,5X50MM | ||
| 090 | A 6342401501 | ENGINE SUPPORT |
| STEEL | ||
| 093 | N 910105014013 | SCREW |
| M14X1,5X35MM | ||
| 096 | N 910105018020 | SCREW |
| M18X1,5X35MM | ||
| Repalced by: N 000000005561 | ||
| 096 | N 000000005561 | SCREW |
| M18X1,5X35MM | ||
| 099 | A 6342401401 | ENGINE SUPPORT |
| CASTING | ||
| 102 | N 910105014010 | SCREW |
| M14X1,5X45MM | ||
| Repalced by: N 000000005718 | ||
| 102 | N 000000005718 | SCREW |
| M14X1,5X45MM | ||
| 105 | N 910105018022 | HEXAGON HEAD BOLT |
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 105 | N 000000005563 | SCREW |
| M18X1,5X50MM | ||
| 108 | A 6345020029 | SUPPORTING PLATE |
| 12MM | ||
| 108 | A 6342410226 | INTERMEDIATE LAYER |
| 8MM | ||
| 111 | A 6342401001 | ENGINE SUPPORT |
| 114 | A 6342401101 | ENGINE SUPPORT |
| 121 | N 000000005534 | SCREW |
