Transporto priemonė: IBC-FAHRGESTELL 2-ACHSER; VIN numerio dalis: 634410

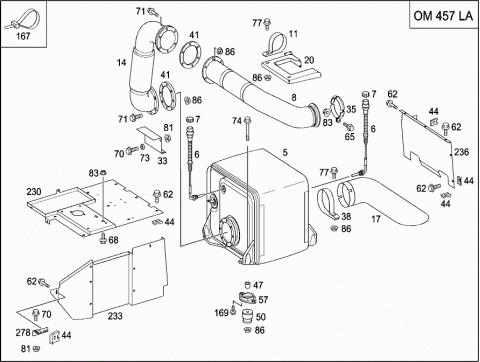

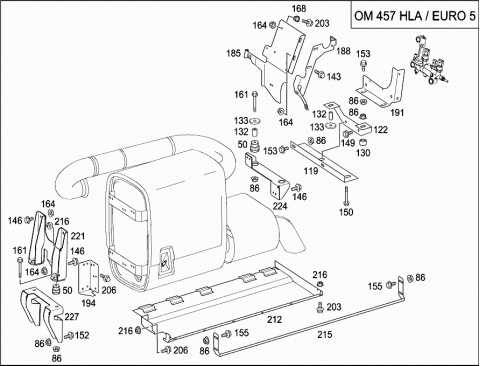

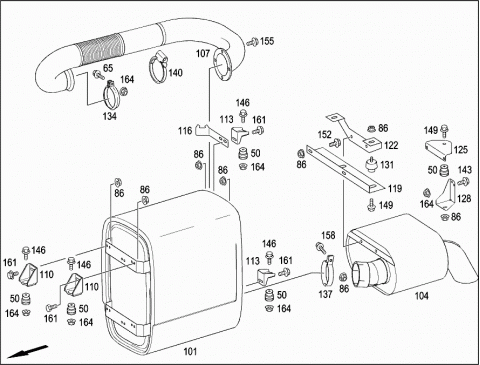

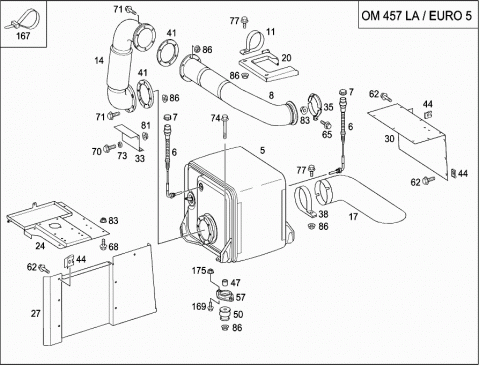

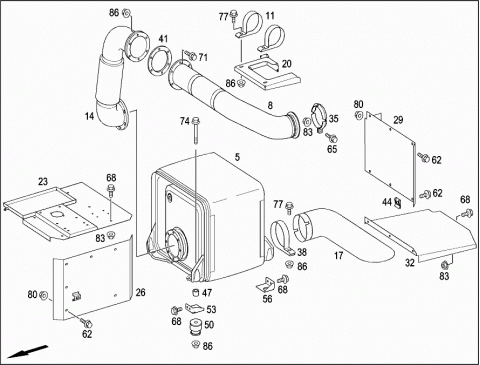

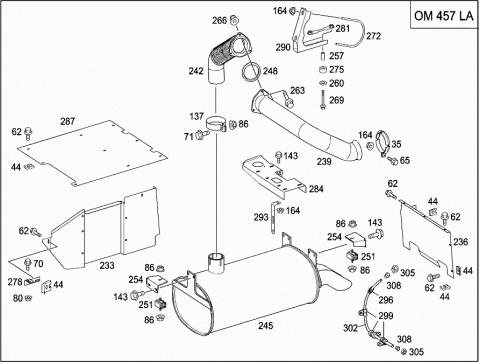

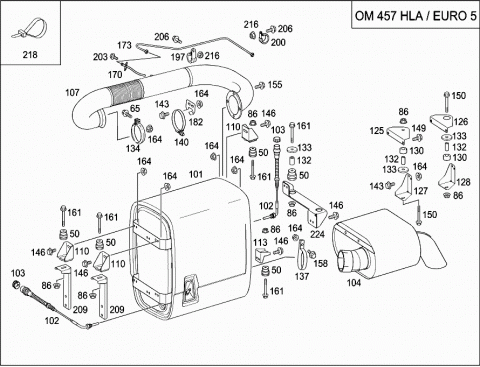

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0014902914 | CATALYST |
| 005 | A 0024902314 | CATALYST |
| NOX SENSOR | ||
| 006 | A 0061530428 | TEMPERATURE SENSOR |
| TEMPERATURE SENSOR,EXHAUST | ||
| 007 | A 0005460522 | CLAMPING RING |
| 008 | A 6324900410 | EXHAUST PIPE |
| 008 | A 6344901010 | EXHAUST PIPE |
| 011 | A 0009954302 | CLAMP |
| D=129MM | ||
| 014 | A 6324920004 | REAR EXHAUST PIPE |
| Repalced by: A 6324900810 | ||
| 014 | A 6324900810 | EXHAUST PIPE |
| 017 | A 6324900210 | EXHAUST PIPE |
| TAIL PIPE | ||
| 017 | A 6324900310 | EXHAUST PIPE |
| TAIL PIPE | ||
| 020 | A 6344910215 | CONSOLE |
| 023 | A 6348300066 | AIR BAFFLE |
| 024 | A 6344900430 | PROTECTIVE PLATE |
| HEATING | ||
| 026 | A 6348300166 | AIR BAFFLE |
| 027 | A 6344920030 | PROTECTIVE PLATE |
| ON ENGINE END | ||
| 029 | A 6348350581 | INSULATION |
| 030 | A 6344920130 | PROTECTIVE PLATE |
| REAR | ||
| 032 | A 6348350681 | INSULATION |
| 033 | A 6294910030 | PROTECTIVE PLATE |
| FOR NOX SENSOR | ||
| 035 | A 9429970290 | CLAMP |
| 038 | A 6344920740 | CLAMP |
| EXHAUST SYSTEM | ||
| D=143,5 | ||
| 041 | A 0004920780 | FLANGE GASKET |
| D=129 | ||
| 044 | A 0029942145 | NUT |
| M6 | ||
| 044 | A 0049941645 | SPRING NUT |
| M6 | ||
| 047 | A 0005040153 | SPACER SLEEVE |
| 050 | A 0009980246 | INSULATION |
| Repalced by: A 0009980846 | ||
| 050 | A 0009980846 | DASHPOT |
| 050 | A 0009980246 | INSULATION |
| 050 | A 0009980846 | DASHPOT |
| 053 | A 6344900740 | BRACKET |
| LEFT | ||
| 056 | A 6344900840 | BRACKET |
| RIGHT | ||
| 057 | A 6344901440 | BRACKET |
| 062 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 065 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40 | ||
| 065 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40 | ||
| 068 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 070 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 071 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 071 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| Repalced by: A 0189901101 | ||
| 071 | A 0189901101 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 073 | A 6299910040 | SPACER SLEEVE |
| 074 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80 | ||
| 077 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40 | ||
| 080 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 081 | N 913023006002 | NUT |
| M6 | ||
| 083 | N 910112008000 | NUT |
| M8 | ||
| 086 | N 913023010002 | NUT |
| M10 | ||
| 086 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 086 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
| 086 | N 913023010002 | NUT |
| M10 | ||
| 101 | A 0004907714 | CATALYST |
| 101 | A 0014904814 | CATALYST |
| NOX SENSOR | ||
| 102 | A 0061530328 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 103 | A 0005460522 | CLAMPING RING |
| 104 | A 6344900801 | EXHAUST MUFFLER |
| 107 | A 6344900810 | EXHAUST PIPE |
| 107 | A 6344901210 | EXHAUST PIPE |
| 108 | A 6344920404 | REAR EXHAUST PIPE |
| 110 | A 6344900440 | BRACKET |
| 110 | A 6344900440 | BRACKET |
| 113 | A 6344900540 | BRACKET |
| 116 | A 6344921741 | BRACKET |
| 119 | A 6344922041 | BRACKET |
| 120 | A 6344921841 | BRACKET |
| 120 | A 6344921841 | BRACKET |
| Repalced by: A 6344923241 | ||
| 120 | A 6344923241 | BRACKET |
| 122 | A 6344921541 | BRACKET |
| 122 | A 6344921541 | BRACKET |
| 122 | A 6344922741 | BRACKET |
| 122 | A 6344922741 | BRACKET |
| 125 | A 6344921641 | BRACKET |
| 125 | A 6344921641 | BRACKET |
| 126 | A 6344923141 | BRACKET |
| 126 | A 6344923141 | BRACKET |
| 127 | A 6344921941 | BRACKET |
| 128 | A 6344922841 | BRACKET |
| 128 | A 6344921941 | BRACKET |
| 128 | A 6344922841 | BRACKET |
| 130 | A 0004920087 | BUFFER |
| 131 | A 0032371012 | BUFFER |
| 132 | A 0004910053 | SPACER TUBE |
| 133 | A 0069905640 | WASHER |
| 50X11X3MM | ||
| 134 | A 6219970090 | CLAMP |
| 137 | A 6554920140 | CLAMP |
| 137 | A 6554920140 | CLAMP |
| 138 | A 6294920040 | CLAMP |
| D=120/445MM | ||
| 138 | A 6554920040 | CLAMP |
| 140 | A 0059970690 | CLAMP |
| 143 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 143 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 146 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 147 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40 | ||
| 149 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16 | ||
| 150 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80 | ||
| 152 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 153 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 155 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 158 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 161 | N 910105010012 | HEXAGON HEAD BOLT |
| M10X65 | ||
| 164 | N 913023008003 | NUT |
| M8 | ||
| 164 | N 913023008003 | NUT |
| M8 | ||
| 167 | A 0019979590 | LOOM TIE |
| 168 | A 0001420050 | BUSHING |
| 169 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 169 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 170 | A 0001400368 | WATER NOZZLE |
| REDUCING AGENT | ||
| 173 | A 6344900039 | PRESSURE LINE |
| 175 | N 910112006001 | HEXAGON NUT |
| M6X16 | ||
| 182 | A 6344911441 | BRACKET |
| 185 | A 6344911130 | PROTECTIVE PLATE |
| 188 | A 6344922641 | BRACKET |
| 188 | A 6344923641 | BRACKET |
| 188 | A 6344922641 | BRACKET |
| 191 | A 6344911541 | BRACKET |
| 194 | A 6344911230 | PROTECTIVE PLATE |
| FOR NOX SENSOR | ||
| 197 | N 916016006201 | CLAMP |
| 6/15 | ||
| Repalced by: N 000000003085 | ||
| 197 | N 000000003085 | CLAMP |
| 6/15 | ||
| Repalced by: N 000000007509 | ||
| 197 | N 000000007509 | CLAMP |
| 6/15 | ||
| 200 | N 916016012200 | CLAMP |
| 12/15 | ||
| Repalced by: N 000000000321 | ||
| 200 | N 000000000321 | CLAMP |
| 12/15 | ||
| Repalced by: N 000000007512 | ||
| 200 | N 000000007512 | CLAMP |
| 12/15 | ||
| 203 | N 910105008006 | HEXAGON HEAD BOLT |
| M8X60 | ||
| 203 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 206 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 206 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 209 | A 6343107458 | CONSOLE |
| 212 | A 6344900530 | PROTECTIVE PLATE |
| 215 | A 6343102419 | SIDE MEMBER |
| 216 | N 913023006002 | NUT |
| M6 | ||
| 218 | A 0029976890 | CABLE TIE |
| 221 | A 6344901240 | BRACKET |
| 224 | A 6344901340 | BRACKET |
| 227 | A 6344901034 | SUPPORT |
| 230 | A 6344900630 | HEAT SHIELD |
| 233 | A 6344920630 | HEAT SHIELD |
| 236 | A 6344920730 | HEAT SHIELD |
| 239 | A 6344900210 | EXHAUST PIPE |
| 242 | A 6344900310 | EXHAUST PIPE |
| 245 | A 6294910700 | MUFFLER |
| 248 | A 6294920080 | FLANGE GASKET |
| 140/116X18 | ||
| 251 | A 0004910285 | RUBBER MOUNTING |
| 254 | A 6294910041 | BRACKET |
| 257 | A 0004920050 | PILOT BUSHING |
| 260 | N 000000003250 | WASHER |
| 263 | N 910105012021 | HEXAGON HEAD BOLT |
| M12X1.5X50 | ||
| 266 | N 913023012002 | NUT |
| M12X1.5 | ||
| 269 | N 910105008017 | HEXAGON HEAD BOLT |
| M8X45 | ||
| 272 | A 0004920127 | MOUNTING BRACKET |
| 275 | A 0004921082 | VIBRATION DAMPER |
| 278 | A 6296871312 | ATTACHMENT ANGLE BRACKET |
| Repalced by: A 6344630040 | ||
| 278 | A 6344630040 | BRACKET |
| 281 | A 6344900144 | FASTENING PLATE |
| 284 | A 6344911015 | CONSOLE |
| 287 | A 6344920830 | HEAT SHIELD |
| 290 | A 6344923841 | BRACKET |
| 293 | A 6292510040 | BRACKET |
| 296 | N 000000006182 | FITTING |
| L6 | ||
| 299 | N 000000007509 | CLAMP |
| 6/15 | ||
| 302 | A 6344208231 | COMPRESSED AIR LINE |
| 330MM | ||
| 305 | N 915017006100 | NUT |
| AL6 | ||
| 308 | A 0019907467 | GLAND |
| BS6 | ||
