Transporto priemonė: IBC-FAHRGESTELL 2-ACHSER; VIN numerio dalis: 634410

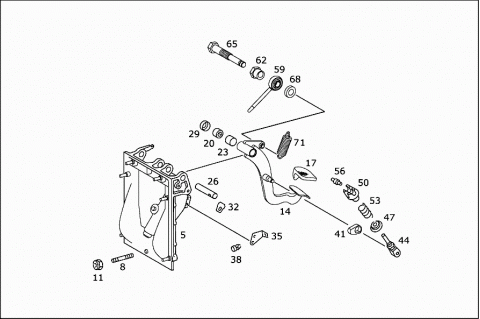

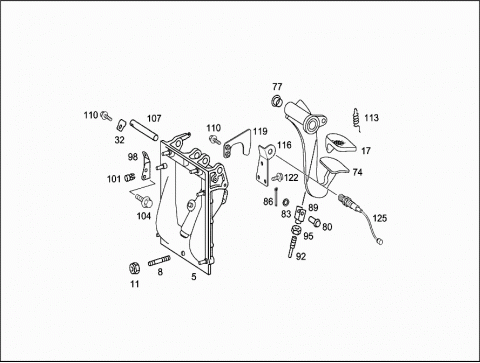

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6342900419 | PEDAL BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 008 | A 6732940270 | STUD |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 011 | N 913023008003 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| M8 | ||
| 014 | A 6342900116 | PEDAL |
| CLUTCH | ||
| 017 | A 1102910182 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 020 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 020 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 020 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 023 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 026 | A 6732940074 | PIN |
| CLUTCH PEDAL | ||
| 029 | A 6732910076 | WASHER |
| CLUTCH PEDAL | ||
| 032 | A 6732920073 | LOCK |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 035 | A 6932917030 | STOP |
| CLUTCH PEDAL | ||
| 038 | A 6882917386 | STOP |
| CLUTCH PEDAL | ||
| 041 | A 6732910186 | STOP |
| CLUTCH PEDAL | ||
| 044 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 047 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 050 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 053 | A 3829937001 | SPRING |
| CLUTCH PEDAL | ||
| 056 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 059 | A 6932917733 | ROD |
| CLUTCH PEDAL | ||
| NAKATA | ||
| 059 | A 6932910233 | ROD |
| CLUTCH PEDAL | ||
| TERMICOM | ||
| 062 | A 6932957050 | BUSHING |
| CLUTCH PEDAL | ||
| 065 | A 6342910074 | PIN |
| PUSH ROD | ||
| 068 | A 6939917035 | SPACER RING |
| PUSH ROD | ||
| 071 | A 3829937110 | SPRING |
| CLUTCH PEDAL RESET | ||
| Repalced by: A 3829930110 | ||
| 071 | A 3829930110 | SPRING |
| CLUTCH PEDAL RESET | ||
| 074 | A 6342900118 | PEDAL |
| BRAKE ACTUATION | ||
| 077 | A 1102910550 | BUSHING |
| BRAKE PEDAL TO PIVOT PIN | ||
| 080 | A 3852920174 | PIN |
| BRAKE PEDAL TO ROD | ||
| 083 | N 000433008403 | WASHER |
| 086 | N 000094002059 | COTTER PIN |
| 2X14M | ||
| Repalced by: N 000094002060 | ||
| 086 | N 000094002060 | COTTER PIN |
| 2X14M | ||
| 089 | N 071752008002 | YOKE |
| BRAKE ACTUATION | ||
| 092 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 095 | N 000439008104 | NUT |
| YOKE TO ROD | ||
| M8 | ||
| 098 | A 6732920030 | STOP |
| BRAKE PEDAL | ||
| 101 | A 1232910286 | STOP |
| BRAKE PEDAL | ||
| 104 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 107 | A 6732940174 | PIN |
| BRAKE PEDAL | ||
| 110 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 110 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 113 | A 6739930110 | SPRING |
| BRAKE PEDAL RESET | ||
| 116 | A 6342910440 | BRACKET |
| 119 | A 6343200027 | LEVER |
| 122 | N 910105008041 | SCREW |
| M8X16MM | ||
| 125 | A 0025403045 | SWITCH |
| APPROXIMATION SWITCH | ||
