Transporto priemonė: IBC-FAHRGESTELL 3-ACHSER; VIN numerio dalis: 634401

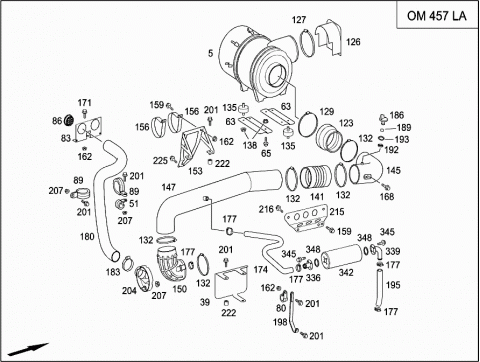

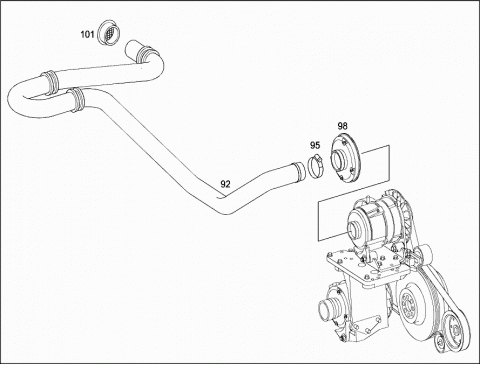

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0180946202 | AIR CLEANER |
| 005 | A 6345200353 | AIR CLEANER |
| 005 | A 0005200653 | AIR FILTER |
| 008 | A 0010943603 | FILTER BOWL |
| 008 | A 0020940506 | FILTER COVER |
| 010 | A 0000941255 | FASTENER |
| 011 | A 4760940004 | FILTER ELEMENT |
| 011 | A 0040941704 | FILTER CARTRIDGE |
| 011 | A 0040946304 | AIR FILTER INSERT |
| 012 | A 4760940104 | FILTER ELEMENT |
| 013 | A 0000942965 | VALVE |
| (DUST DISCHARGE VALVE) | ||
| 014 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 019 | A 6345840801 | MODEL PLATE |
| AIR CLEANER | ||
| 021 | A 6345200402 | AIR GUIDE |
| 024 | A 9585280182 | HOSE |
| 027 | A 6345280724 | RAW AIR LINE |
| 030 | A 0005281582 | HOSE |
| 033 | A 6345204301 | AIR DUCT |
| 036 | A 6325280282 | HOSE |
| 039 | A 6345280022 | COVERING |
| 042 | A 0009912740 | SPACER BUSH |
| 045 | A 6345281739 | CONSOLE |
| 048 | A 6345281639 | CONSOLE |
| 051 | N 000000006124 | CLAMP |
| 25/15MM | ||
| Repalced by: A 0019951642 | ||
| 051 | A 0019951642 | MOUNTING CLAMP |
| 25/15MM | ||
| 051 | N 916016025201 | CLAMP |
| 25/15MM | ||
| Repalced by: N 000000006124 | ||
| 051 | N 000000006124 | CLAMP |
| 25/15MM | ||
| Repalced by: A 0019951642 | ||
| 051 | A 0019951642 | MOUNTING CLAMP |
| 25/15MM | ||
| 051 | A 0019951642 | MOUNTING CLAMP |
| 25/15MM | ||
| 054 | N 910105005000 | HEXAGON HEAD BOLT |
| M5X12 | ||
| 056 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| 063 | A 6345280344 | FASTENING PLATE |
| 065 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 080 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 080 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 080 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 080 | N 000000007514 | CLAMP |
| 35/20MM | ||
| 081 | A 0019951842 | MOUNTING CLAMP |
| 28/15MM | ||
| 083 | A 6345280540 | BRACKET |
| 086 | A 0005280001 | PROTECTIVE GRILLE |
| 089 | N 000000003186 | CLAMP |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| 089 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 089 | N 000000003186 | CLAMP |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| 089 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 089 | N 000000006128 | CLAMP |
| 76/25MM | ||
| 089 | N 000000007524 | CLAMP |
| 76/25MM | ||
| 089 | N 000000006124 | CLAMP |
| 25/15MM | ||
| Repalced by: A 0019951642 | ||
| 089 | A 0019951642 | MOUNTING CLAMP |
| 25/15MM | ||
| 092 | A 0029974052 | HOSE |
| LONG VERSION | ||
| 2500MM | ||
| 095 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 098 | A 4071540165 | COVER |
| 101 | A 0005280001 | PROTECTIVE GRILLE |
| AIR INTAKE TO ALTERNATOR | ||
| 123 | A 0029970452 | HOSE |
| 126 | A 6345280404 | SCOOP |
| 127 | N 000000002136 | CLAMP |
| 180-200X12MM | ||
| 129 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 132 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| 132 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 132 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 135 | A 0005280185 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| M10X50X20 | ||
| 138 | N 913023010002 | NUT |
| ATTACHMENT,AIR FILTER | ||
| M10 | ||
| 141 | A 0249970882 | HOSE |
| 144 | A 6345202301 | AIR INTAKE PIPE |
| 145 | A 6345204401 | AIR DUCT |
| 146 | A 6345205401 | AIR INTAKE PIPE |
| 147 | A 6345203101 | AIR INTAKE PIPE |
| 148 | A 6345200901 | AIR INTAKE PIPE |
| 150 | A 6325280282 | HOSE |
| 151 | A 0029975552 | HOSE |
| 153 | A 6345281339 | SUPPORT |
| 154 | A 6345280839 | CONSOLE |
| 156 | A 0005280043 | CLAMP |
| 156 | A 0029953701 | CLAMP |
| 150/25 | ||
| Repalced by: A 0009957542 | ||
| 156 | A 0009957542 | CLAMP |
| 150/25 | ||
| Repalced by: A 0019952242 | ||
| 156 | A 0019952242 | MOUNTING CLAMP |
| 150/25 | ||
| 159 | N 910105008060 | HEXAGON HEAD BOLT |
| M8X35 | ||
| 162 | N 913023010002 | NUT |
| M10 | ||
| 162 | N 913023008003 | NUT |
| M8 | ||
| 163 | A 0029942145 | NUT |
| 165 | A 0051536528 | TEMPERATURE SENSOR |
| Repalced by: A 0071530128 | ||
| 165 | A 0071530128 | TEMPERATURE SENSOR |
| Repalced by: A 0071531128 | ||
| 165 | A 0071531128 | TEMPERATURE SENSOR |
| 168 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| Repalced by: N 910105006007 | ||
| 168 | N 910105006007 | HEXAGON HEAD BOLT |
| M6X10 | ||
| 168 | N 910105006007 | HEXAGON HEAD BOLT |
| M6X10 | ||
| 171 | N 910105008045 | HEXAGON HEAD BOLT |
| M8X55 | ||
| 174 | A 0029975652 | HOSE |
| 1090MM | ||
| 177 | N 000000000667 | CLAMP |
| 20-32X12MM | ||
| 180 | A 0029973852 | HOSE |
| 1420MM | ||
| 180 | A 0029973852 | HOSE |
| 1420MM | ||
| 180 | A 0069976652 | SUCTION HOSE |
| 1420MM | ||
| 183 | N 000000003529 | CLAMP |
| 50-75X13MM | ||
| 186 | A 0135422917 | CONTACT SENSOR |
| 189 | A 0000940276 | FELT WASHER |
| 192 | A 0004291127 | THRUST RING |
| 193 | A 0269970248 | O-RING |
| 195 | A 0029971752 | HOSE |
| (INTAKE HOSE) | ||
| 265MM | ||
| 196 | A 6345280482 | HOSE |
| 198 | A 6345041940 | BRACKET |
| 201 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 201 | N 910105006008 | HEXAGON HEAD BOLT |
| M6X25 | ||
| 204 | A 4571540304 | COVER |
| ALTERNATOR AIR INTAKE | ||
| 206 | N 913023006002 | NUT |
| M6 | ||
| 207 | N 910112006002 | HEXAGON NUT |
| M6 | ||
| 208 | A 0005200002 | RESONATOR |
| 208 | A 0005200002 | RESONATOR |
| 209 | A 6325200502 | RESONATOR |
| 210 | A 6325281409 | CONNECTION FITTING |
| STRAIGHT | ||
| 211 | A 6325281509 | CONNECTION FITTING |
| 90 DEGREES POSITION | ||
| 212 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 213 | A 0199974948 | O-RING |
| 215 | A 6295500254 | MOUNTING PLATE |
| 216 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 219 | A 6345280022 | COVERING |
| SCREENING PLATE | ||
| 222 | A 0009912740 | SPACER BUSH |
| 225 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 240 | A 0019950710 | HOSE CLAMP |
| ACCORDION TUBE TO CHARGE AIR ELBOW | ||
| 249 | A 0020946382 | CHARGE AIR HOSE |
| 100X200MM | ||
| 270 | A 6295040233 | FASTENING CLAMP |
| CHARGE AIR HOSE ATTACHMENT | ||
| 100MM | ||
| 273 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 288 | A 0020945482 | CHARGE AIR HOSE |
| 297 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 327 | A 0009979349 | GASKET |
| 0,92M | ||
| 327 | A 0009979349 | GASKET |
| 1,53M | ||
| 330 | A 0049941245 | NUT |
| M5 | ||
| 333 | A 6345280101 | AIR INLET GRILL |
| 336 | A 6325281409 | CONNECTION FITTING |
| STRAIGHT | ||
| 339 | A 6325281509 | CONNECTION FITTING |
| 90 DEGREES POSITION | ||
| 342 | A 6325200502 | RESONATOR |
| 345 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 348 | A 0199974948 | O-RING |
| 351 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 354 | A 6345000688 | LINE |
| CHARGE AIR PIPE | ||
| 357 | A 6345284508 | CHARGE AIR PIPE |
| 360 | A 6345200032 | TUBE STRUT |
| 363 | A 0019951910 | CLAMP |
| CHARGE AIR HOSE ATTACHMENT | ||
| 366 | N 910105010021 | HEXAGON HEAD BOLT |
| M10X55 | ||
| 369 | A 6345281640 | BRACKET |
| 372 | A 6349920001 | BUSH WITHOUT CHAMFER |
| 375 | A 0005280230 | MOUNTING BRACKET |
| 378 | A 0009970653 | HOSE |
| CHARGE AIR HOSE | ||
| 381 | A 6295040150 | BUSHING |
| 384 | A 6295001431 | BRACKET |
| CHARGE AIR HOSE ATTACHMENT | ||
| 387 | N 910105008064 | HEXAGON HEAD BOLT |
| M8X65 | ||
| 390 | N 910105008017 | HEXAGON HEAD BOLT |
| M8X45 | ||
| 393 | A 0030940982 | ACCORDION HOSE |
| 396 | A 6343176141 | BRACKET |
