Transporto priemonė: IBC-FAHRGESTELL 3-ACHSER; VIN numerio dalis: 634401

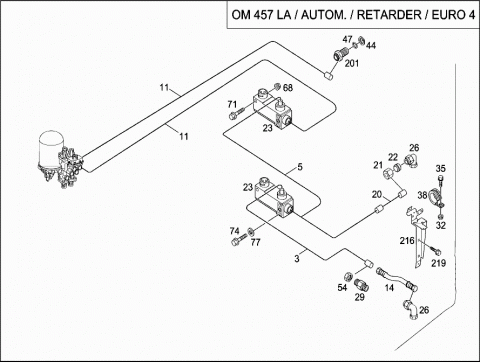

Grupė: 43 EXHAUST BRAKE - 060 ENGINE SHUT-OFF AND EXHAUST BRAKE

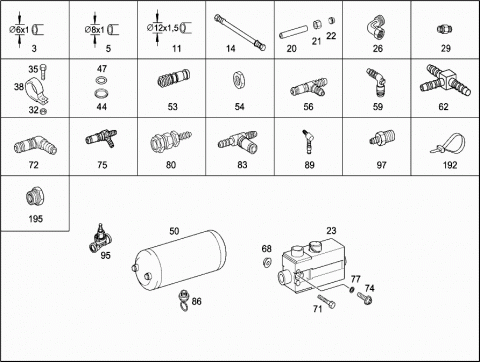

| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0009872627 | PLASTIC PIPE |
| 6X1MM | ||
| 005 | A 0009872727 | PLASTIC PIPE |
| 8X1MM | ||
| 011 | A 0009872827 | PLASTIC PIPE |
| 12X1,5MM | ||
| 014 | A 0029976952 | HOSE |
| DN4 | ||
| 020 | A 6344201932 | LINE |
| 1030MM | ||
| 021 | A 0019906554 | NUT |
| M14X1,5 / AL8 | ||
| 022 | A 0019908867 | CUTTING RING |
| BS8 | ||
| 023 | A 0049975536 | SOLENOID VALVE |
| 3/2 | ||
| Repalced by: A 0059971236 | ||
| 023 | A 0059971236 | VALVE |
| 3/2 | ||
| Repalced by: A 0009820217 | ||
| 023 | A 0009820217 | SOLENOID VALVE |
| 3/2 | ||
| Repalced by: A 0009975112 | ||
| 023 | A 0009975112 | 3-2-WAY PNEUMATIC VALVE |
| 3/2 | ||
| 026 | A 0049902171 | ELBOW FITTING |
| FROM FITTING TO POWER CYLINDER | ||
| M12X1,5/M14X1,5 | ||
| 026 | N 003952008100 | FITTING |
| L18 | ||
| Repalced by: A 0049902171 | ||
| 026 | A 0049902171 | ELBOW FITTING |
| L18 | ||
| 026 | N 000000006198 | FITTING |
| 026 | N 000000006197 | FITTING |
| L6ST | ||
| 029 | A 0049900568 | FITTING |
| L6 | ||
| 032 | N 913023006002 | NUT |
| M6 | ||
| 035 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| Repalced by: N 000000003765 | ||
| 035 | N 000000003765 | HEXALOBULAR BOLT |
| M6X20 | ||
| 035 | N 910105005002 | SCREW |
| M5X16 | ||
| 038 | N 000000007510 | CLAMP |
| RSGU 8/15 | ||
| 038 | N 916016008200 | CLAMP |
| 8/15 | ||
| Repalced by: N 000000000319 | ||
| 038 | N 000000000319 | CLAMP |
| 8/15 | ||
| Repalced by: N 000000007510 | ||
| 038 | N 000000007510 | CLAMP |
| 8/15 | ||
| 038 | A 0029953101 | CLAMP |
| RSGU S 18/15 | ||
| Repalced by: A 0019952842 | ||
| 038 | A 0019952842 | MOUNTING CLAMP |
| RSGU S 18/15 | ||
| 038 | N 916016012200 | CLAMP |
| 12/15 | ||
| 038 | N 000000007512 | CLAMP |
| RSGU 12/15 | ||
| 044 | A 0009940203 | THRUST RING |
| RETARDER | ||
| 22MM | ||
| 044 | A 0009940103 | THRUST RING |
| RETARDER | ||
| 18X12.1X2.6 | ||
| 044 | A 0004290927 | THRUST RING |
| 22MM | ||
| 047 | A 0009870446 | O-RING |
| RETARDER | ||
| 20.3X2.4 | ||
| 047 | A 0019970845 | SEAL RING |
| RETARDER | ||
| 10X2.2 | ||
| 047 | A 0009971548 | O-RING |
| 15X2.05 | ||
| 050 | A 0004300503 | RESERVOIR |
| 7L | ||
| 051 | N 910105012013 | HEXAGON HEAD BOLT |
| M12X1,5X25 | ||
| 053 | A 0039974989 | CONNECTION PIECE |
| Repalced by: A 0059977889 | ||
| 053 | A 0059977889 | CONNECTION PIECE |
| 053 | A 0039975089 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| Repalced by: A 0049976989 | ||
| 053 | A 0049976989 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| 053 | A 0039975289 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| 053 | A 0039976689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| Repalced by: A 0059972689 | ||
| 053 | A 0059972689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/8X1 | ||
| 054 | N 000000006661 | NUT |
| M12X1,5 | ||
| 054 | N 000000006661 | NUT |
| M12X1,5 | ||
| 054 | N 080705022001 | NUT |
| M22X1,5 | ||
| 054 | N 000000006644 | NUT |
| M22X1,5 | ||
| 056 | A 0039978289 | CONNECTION PIECE |
| 059 | A 0039979689 | COUPLER PLUG |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| Repalced by: A 0039976889 | ||
| 059 | A 0039976889 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5 | ||
| 062 | A 0039904470 | T-FITTING |
| 062 | A 0029909070 | T-FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 12X1.5/12X1.5/12X1.5 | ||
| 068 | N 913023008002 | NUT |
| M8 | ||
| 071 | N 910105008046 | HEXAGON HEAD BOLT |
| M8X110 | ||
| Repalced by: N 910143008013 | ||
| 071 | N 910143008013 | HEXALOBULAR BOLT |
| M8X110 | ||
| 072 | A 0049974689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/12X1.5 | ||
| 074 | A 0039908812 | SCREW |
| M6X12 TX30 | ||
| 074 | N 000000001145 | HEXALOBULAR BOLT |
| M6X12 TX30 | ||
| 075 | A 0039978889 | CONNECTOR |
| 075 | A 0039979589 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/12X1.5/12X1.5 | ||
| 077 | N 000000003250 | WASHER |
| 24X8.4X2 | ||
| 077 | N 007603006106 | SEALING RING |
| 6X10MM | ||
| 077 | N 000000003260 | WASHER |
| 080 | N 915059006002 | FITTING |
| 083 | A 0029906470 | T-FITTING |
| Repalced by: A 0019908370 | ||
| 083 | A 0019908370 | T-FITTING |
| 086 | A 0004322107 | DRAIN VALVE |
| DRAIN | ||
| ARCO | ||
| 086 | A 0004321107 | DRAIN VALVE |
| DRAIN | ||
| VOSS | ||
| 086 | A 0004322407 | DRAIN VALVE |
| DRAIN | ||
| VOSS | ||
| 089 | A 0039977689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 095 | A 0014296544 | OVERFLOW VALVE |
| 6.5BAR | ||
| 097 | A 0019973472 | FITTING |
| M12X1.5/6X1 | ||
| 165 | A 0079977672 | FITTING |
| M22X1.5/M16X1.5/M22X1.5 RAUFOSS | ||
| 165 | A 0019972372 | FITTING |
| 165 | N 000000006790 | FITTING |
| M22X1,5 | ||
| 192 | A 0029975890 | CABLE TIE |
| 7.4-8.4X355-375 | ||
| 192 | A 0059971590 | CABLE TIE |
| 195 | A 0009974834 | UNION SCREW |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/M22X1.5 | ||
| Repalced by: A 0009978134 | ||
| 195 | A 0009978134 | RETAINING SCREW |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/M22X1.5 | ||
| 195 | A 0009974734 | UNION SCREW |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/M16X1.5 | ||
| 201 | A 0019972871 | FITTING |
| M16X1.5 VOSS | ||
| 201 | A 0019973171 | FITTING |
| NG12/M22X1.5 | ||
| 201 | A 0019972971 | FITTING |
| NG8/M12X1.5 | ||
| 204 | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 204 | A 0019972372 | FITTING |
| 207 | A 6295530040 | BRACKET |
| 210 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| Repalced by: N 910143008013 | ||
| 210 | N 910143008013 | HEXALOBULAR BOLT |
| M8X25 | ||
| 213 | N 913023008003 | NUT |
| M8 | ||
| 216 | A 6344327540 | BRACKET |
| 219 | N 308676016011 | HEXAGON HEAD BOLT |
| M16X30 | ||
| 219 | N 000000005482 | HEXAGON HEAD BOLT |
| M16X1.5X30 10.9 | ||
