Transporto priemonė: INTEGRO L; VIN numerio dalis: 633004

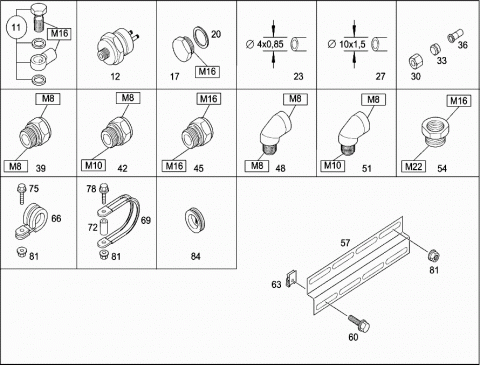

Grupė: 57 CENTRAL LUBRICATION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0015710001 | PUMP |
| Repalced by: A 0015710301 | ||
| 005 | A 0015710301 | PUMP |
| 005 | A 0015710101 | PUMP |
| 005 | A 0015710101 | PUMP |
| 006 | A 0025407005 | CABLE HARNESS |
| TO: A 001 571 00 01 | ||
| 008 | A 0045730120 | DISTRIBUTOR |
| FRONT | ||
| 008 | A 6295730120 | DISTRIBUTOR |
| FRONT | ||
| 008 | A 6295730120 | DISTRIBUTOR |
| FRONT | ||
| 011 | A 0029906771 | ELBOW FITTING |
| Repalced by: A 0049903971 | ||
| 011 | A 0049903971 | ELBOW FITTING |
| 012 | A 0065452314 | SWITCH |
| Repalced by: A 0035450614 | ||
| 012 | A 0035450614 | SWITCH |
| 014 | A 0005701210 | DISTRIBUTOR |
| REAR | ||
| 014 | A 6295730020 | DISTRIBUTOR |
| REAR | ||
| 014 | A 6295730020 | DISTRIBUTOR |
| REAR | ||
| 017 | A 0005710756 | SCREW PLUG |
| M 16X1.5 | ||
| 020 | N 007603016105 | SEAL RING |
| 16X20 CU | ||
| 023 | A 0179977082 | HOSE |
| 4X0,85 | ||
| 027 | A 0179977182 | HOSE |
| 10X1,5 | ||
| 030 | A 0029905968 | FITTING |
| 033 | A 0019903667 | SEAL CONE |
| 036 | A 0005730553 | PIN BUSHING |
| Repalced by: A 0005730753 | ||
| 036 | A 0005730753 | PIN BUSHING |
| 039 | A 0005730432 | CONNECTOR |
| M8X1/M8X1 | ||
| Repalced by: A 0005731055 | ||
| 039 | A 0005731055 | CONNECTOR |
| M8X1/M8X1 | ||
| 042 | A 0005730532 | CONNECTOR |
| M8X1/M10X1 | ||
| Repalced by: A 0005731155 | ||
| 042 | A 0005731155 | CONNECTOR |
| M8X1/M10X1 | ||
| 045 | A 0005735132 | CONNECTOR |
| M16X1.5/M16X1.5 | ||
| 048 | A 0005731230 | ELBOW |
| M8X1/M8X1 | ||
| 051 | A 0005731330 | ELBOW |
| M8X1/M10X1 | ||
| 054 | A 0009902082 | REDUCTION FITTING |
| M16X1.5/M22X1.5 | ||
| 057 | A 6299850649 | "Z" SECTION |
| FRONT DISTRIBUTOR | ||
| L=225 MM | ||
| 057 | A 6279850349 | "Z" SECTION |
| FRONT DISTRIBUTOR | ||
| L=170 MM | ||
| 057 | A 6279850349 | "Z" SECTION |
| FRONT DISTRIBUTOR | ||
| L=170 MM | ||
| 057 | A 6276125724 | RAIL |
| REAR DISTRIBUTOR | ||
| L=115 MM | ||
| 060 | N 304017006016 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 063 | A 0049941645 | SPRING NUT |
| M6 | ||
| 063 | A 0049941945 | NUT |
| M8 | ||
| 066 | Q 8219000442 | CLAMP |
| LINE MOUNTING | ||
| 069 | A 0029952101 | CLAMP |
| LINE MOUNTING | ||
| 15X110 | ||
| 069 | A 0029950601 | CLAMP |
| LINE MOUNTING | ||
| 15X100 | ||
| 072 | A 0003270453 | SPACER TUBE |
| LINE MOUNTING | ||
| 30MM | ||
| 072 | A 0003270353 | SPACER SLEEVE |
| LINE MOUNTING | ||
| 18MM | ||
| 075 | N 000933006058 | SCREW |
| M6X25 | ||
| 078 | N 304017006026 | HEXAGON HEAD BOLT |
| M6X40 | ||
| 078 | N 000931006111 | SCREW |
| M6X55 | ||
| 081 | N 000934006006 | NUT |
| M6 | ||
| 084 | A 0089978381 | GROMMET |
| FOR PASSAGE OF LINE | ||
