Transporto priemonė: INTEGRO L; VIN numerio dalis: 633004

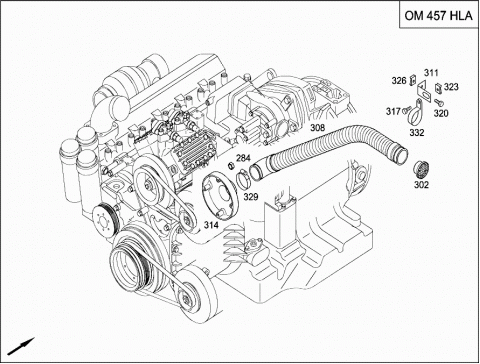

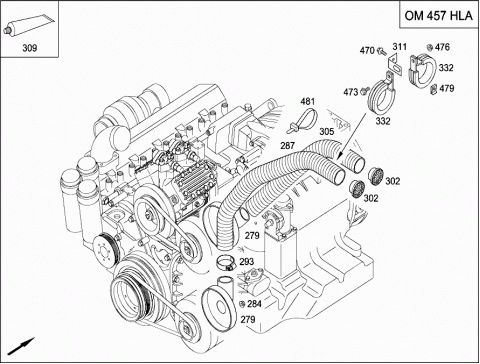

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 279 | A 4071540165 | COVER |
| 284 | N 913023006002 | NUT |
| M6 | ||
| 284 | N 913023006002 | NUT |
| M6 | ||
| 287 | A 0029974752 | HOSE |
| 1200MM | ||
| 287 | A 0069977552 | SUCTION HOSE |
| 1200MM | ||
| 293 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 302 | A 0005280001 | PROTECTIVE GRILLE |
| ALTERNATOR AIR INTAKE | ||
| 302 | A 0005280001 | PROTECTIVE GRILLE |
| ALTERNATOR AIR INTAKE | ||
| 305 | A 0029973052 | HOSE |
| 850MM | ||
| 305 | A 0069977652 | SUCTION HOSE |
| 850MM | ||
| 305 | A 0029974752 | HOSE |
| 1200MM | ||
| 305 | A 0069977552 | SUCTION HOSE |
| 1200MM | ||
| 308 | A 0029973052 | HOSE |
| 850MM | ||
| Repalced by: A 0029974752 | ||
| 308 | A 0029974752 | HOSE |
| 1200MM | ||
| 308 | A 0069977552 | SUCTION HOSE |
| 1200MM | ||
| 309 | A 0079899071 | SEALING CEMENT |
| 225G | ||
| 311 | A 6294340140 | BRACKET |
| 314 | A 4071540165 | COVER |
| 317 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 320 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 323 | A 0049941945 | NUT |
| 326 | A 0049941645 | SPRING NUT |
| M6 | ||
| 329 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 332 | N 000000003186 | CLAMP |
| 76/25 | ||
| Repalced by: N 000000006128 | ||
| 332 | N 000000006128 | CLAMP |
| 76/25 | ||
| 347 | A 0180944302 | AIR CLEANER |
| 348 | A 0010943603 | FILTER BOWL |
| 349 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 350 | A 0040941704 | FILTER CARTRIDGE |
| 353 | A 6295280339 | CONSOLE |
| 356 | A 0005280185 | RUBBER MOUNTING |
| M10X50X20 | ||
| 359 | N 913023010002 | NUT |
| M10 | ||
| 362 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16 | ||
| 365 | A 0029972152 | HOSE |
| 180X300MM | ||
| 368 | N 000000002136 | CLAMP |
| 180-200X12MM | ||
| 371 | A 0005281182 | HOSE |
| 374 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 377 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 377 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 377 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| 380 | A 0049900971 | ELBOW FITTING |
| 383 | A 0005280009 | PLASTIC PIPE |
| 386 | A 0049901071 | ELBOW FITTING |
| 389 | A 6345280482 | HOSE |
| 392 | A 0005041340 | BRACKET |
| 395 | A 0015461043 | BRACKET |
| 398 | N 910105014038 | HEXAGON HEAD BOLT |
| M14X25 | ||
| Repalced by: N 000000005530 | ||
| 398 | N 000000005530 | HEXAGON HEAD BOLT |
| M14X25 | ||
| Repalced by: N 000000005515 | ||
| 398 | N 000000005515 | HEXAGON HEAD BOLT |
| M14X1.5X25 | ||
| 398 | N 000000005515 | HEXAGON HEAD BOLT |
| M14X1.5X25 | ||
| 401 | N 000000000668 | CLAMP |
| 25-40X12MM | ||
| Repalced by: N 000000002772 | ||
| 401 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 404 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 404 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 407 | N 913023008003 | NUT |
| M8 | ||
| 410 | A 6295200533 | SUPPORT |
| 413 | A 0039941545 | NUT |
| M8 | ||
| 416 | A 0005200002 | RESONATOR |
| 417 | A 6325200502 | RESONATOR |
| 418 | A 6325281509 | CONNECTION FITTING |
| 419 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 420 | A 0199974948 | O-RING |
| 422 | A 0029971752 | HOSE |
| 28X265MM | ||
| 425 | A 6295500058 | PIPE LINE |
| 425 | A 6335200050 | PROTECTIVE TUBE |
| 428 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 431 | A 0029977652 | HOSE |
| 28X150MM | ||
| 434 | A 6335200082 | PLATE |
| 435 | A 6335200282 | PLATE |
| 437 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 440 | A 0135422917 | CONTACT SENSOR |
| 443 | A 0000500095 | SEAL RING |
| 446 | N 910113010002 | HEXAGON NUT |
| M10X1 | ||
| 449 | N 914128005202 | SHEET METAL SCREW |
| 5.5X19 | ||
| 452 | A 0051536528 | SENDER UNIT |
| Repalced by: A 0071530128 | ||
| 452 | A 0071530128 | TEMPERATURE SENSOR |
| Repalced by: A 0071531128 | ||
| 452 | A 0071531128 | TEMPERATURE SENSOR |
| 455 | A 0029901378 | CONNECTOR |
| 458 | N 916016028202 | CLAMP |
| 28/15 | ||
| Repalced by: N 000000000329 | ||
| 458 | N 000000000329 | CLAMP |
| 28/15MM | ||
| 458 | N 000000006226 | CLAMP |
| 18/20MM | ||
| Repalced by: N 000000000329 | ||
| 458 | N 000000000329 | CLAMP |
| 28/15MM | ||
| 461 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 461 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 464 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 467 | N 916016035201 | CLAMP |
| 35/20MM | ||
| Repalced by: N 000000005975 | ||
| 467 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 470 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 473 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 476 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 476 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| Repalced by: N 910112008000 | ||
| 476 | N 910112008000 | NUT |
| M8 | ||
| 479 | A 0049941645 | SPRING NUT |
| M6 | ||
| 481 | A 0029975890 | CABLE TIE |
| 7.4-8.4X355-375 | ||
| 481 | A 0029975890 | CABLE TIE |
| 7.4-8.4X355-375 | ||
| Repalced by: A 0079973190 | ||
| 481 | A 0079973190 | CABLE STRAP |
| 7.8X465 | ||
| 490 | A 6335200182 | PLATE |
| 493 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 496 | N 910105006012 | HEXAGON HEAD BOLT |
| M6X40 | ||
| 499 | A 0059970452 | HOSE |
| 28X250MM | ||
| 502 | A 6321340301 | INTAKE MANIFOLD |
| 28MM | ||
| 505 | A 6285014082 | MOLDED HOSE |
| 90-DEGREE ARC | ||
| 28MM | ||
