Transporto priemonė: INTEGRO L; VIN numerio dalis: 633004
Grupė: 62 COWL,FRONT PANEL - 030 COWL

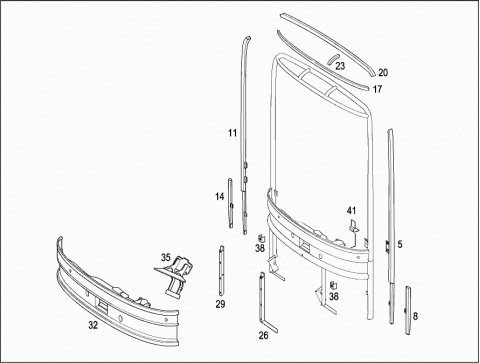

86927

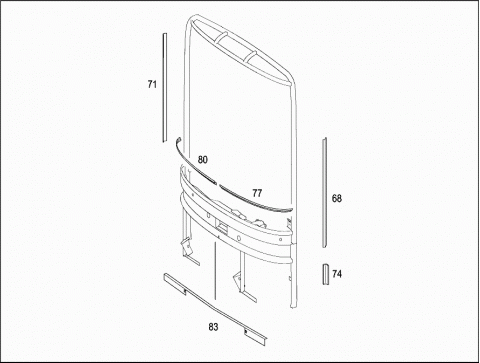

86930

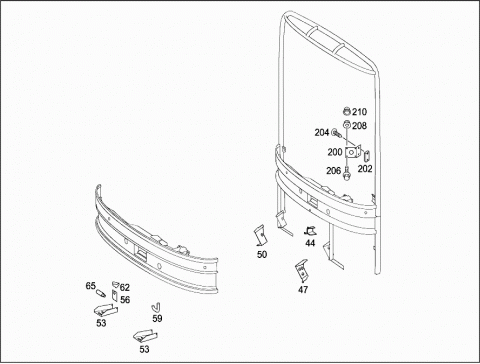

86928
86931
# Kodas Pavadinimas
005 A 6336200213 PILLAR
LEFT
008 A 6336210013 PILLAR
LOWER PART
011 A 6336200313 PILLAR
RIGHT
014 A 6336210113 PILLAR
LOWER PART
017 A 6336200030 SUPPORT
020 A 6336220020 BOW
023 A 6336210034 BRACING
026 A 6326200713 PILLAR
LEFT
029 A 6326201713 PILLAR
RIGHT
032 A 6296200008 FRONT PANEL
035 A 6296201315 CONSOLE
038 A 6336200014 BRACKET
041 A 6296221714 BRACKET
044 A 6326200914 BRACKET
047 A 6326200315 CONSOLE
LEFT
050 A 6326200415 CONSOLE
RIGHT
053 A 6326220814 BRACKET
056 A 6326250024 PLATE
059 A 6326120132 MOUNTING BRACKET
062 A 6326253914 BRACKET
065 A 6276310221 END PIECE
068 A 6336020412 ANGLE
LEFT
071 A 6336020512 ANGLE
RIGHT
074 A 6296270312 ANGLE
077 A 6296271612 ANGLE
LEFT
080 A 6296271712 ANGLE
RIGHT
083 A 6296271812 ANGLE
Repalced by: A 6336270112
083 A 6336270112 ANGLE
086 A 6296270074 ORNAMENTAL COVER
089 A 6296270014 BRACKET
092 A 0009927905 BUSHING
095 A 6296200112 ANGLE
LEFT
098 A 6296200212 ANGLE
RIGHT
101 A 6296270614 BRACKET
RIGHT
104 A 6296250085 BRACKET
LEFT
107 A 6296250185 BRACKET
RIGHT
110 A 0029872640 RUBBER BUFFER
113 A 6738100018 BADGE
116 A 0009944445 FLAT HEAD
Repalced by: A 0049883378
116 A 0049883378 CLIP
119 A 6296280000 GUMMED LABEL
Repalced by: A 6296280100
119 A 6296280100 GUMMED LABEL
122 A 0009871762 RUBBER SECTION
125 A 0009872562 RUBBER SECTION
200 A 6336891811 RETAINING PLATE
202 A 6338210011 FASTENING PLATE
204 N 000000000819 TAPPING SCREW
4,2X38MM
206 N 914129005002 SCREW
M5X20MM
208 N 910112005000 HEXAGON NUT
M5
210 N 913018008200 PROTECTIVE CAP
8X5,5
