Transporto priemonė: INTEGRO L; VIN numerio dalis: 633004

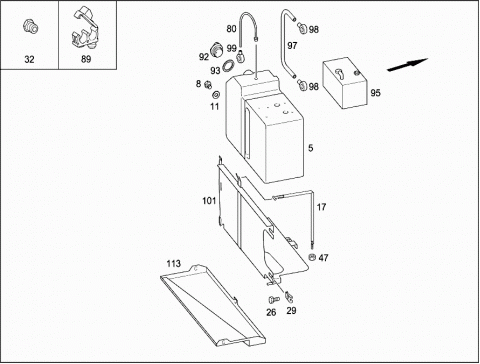

Grupė: 48 OIL TANK - 020 ENGINE OIL AUTOMATIC REPLENISHMENT

#	Kodas	Pavadinimas
005	A 6284801401	OIL TANK
		ENGINE OIL AUTOMATIC REPLENISHMENT
008	N 007604018109	SCREW PLUG, FILLING
		AT OIL TANK
		M18X1.5
	Repalced by: N 000000005441
008	N 000000005441	SCREW PLUG, FILLING
		AT OIL TANK
		M18X1.5
011	N 007603018104	SEALING RING
		18X24-CU
017	A 6284800021	STRAP
		OIL TANK
017	A 6284800321	STRAP
		OIL TANK
026	N 910105008041	HEXAGON HEAD BOLT
		M8X16
029	A 0049941945	NUT
		M8
032	N 915008008407	FITTING
		D=10MM
038	N 910105006006	HEXAGON HEAD BOLT
		M6X20
041	N 916016010201	CLAMP
		10/15
	Repalced by: N 000000000320
041	N 000000000320	CLAMP
		10/15
	Repalced by: N 000000007511
041	N 000000007511	CLAMP
		10/15
044	N 910112008000	NUT
		M8
047	N 913023010002	NUT
		M10
056	A 0004761175	FUEL HOSE
		FROM PRIMER CAPSULE TO ENGINE
059	A 0009976571	FITTING
		ADJUSTABLE 60 DEGREES
062	N 915027000006	FITTING
		M18X1.5
	Repalced by: N 000000006152
062	N 000000006152	FITTING
		M18X1.5
065	N 007603018101	SEALING RING
		18X22-CU
068	A 0019974972	FITTING
071	N 915017010200	NUT
		BL10
	Repalced by: N 000000006238
071	N 000000006238	NUT
		BL10
077	A 0019970652	PLASTIC PIPE
		FROM PRIMER CAPSULE TO ENGINE
080	A 0009979052	HOSE
		8X5MM
089	A 1201580440	BRACKET
092	A 0000180702	FILLER CAP
		LESS BREATHING
093	A 0000180180	GASKET
095	A 6285400745	CONTROL UNIT
097	A 0109976482	PLASTIC PIPE
098	A 6284800025	ELBOW FITTING
099	A 6284800125	ELBOW FITTING
101	A 6334800339	SUPPORT
104	A 0049941645	SPRING NUT
		M6
107	A 6334800015	OIL LINE
110	A 0029979890	STRAP
113	A 6334810204	COLLECTING PAN
