Transporto priemonė: INTOURO; VIN numerio dalis: 633051

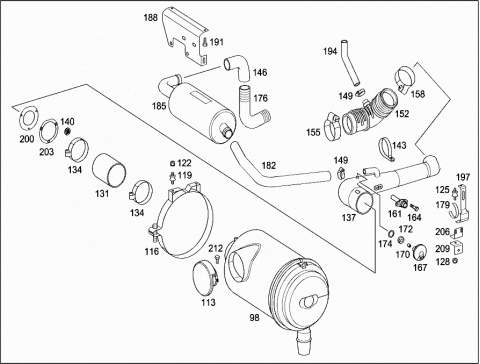

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|

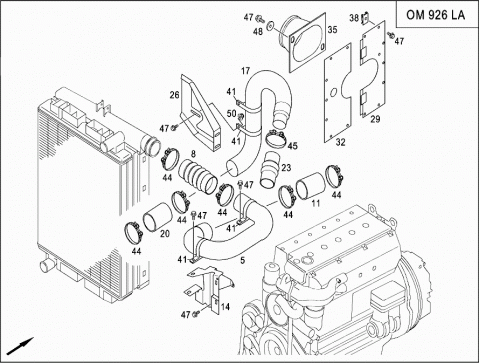

| 005 | A 6335200201 | AIR INTAKE PIPE |
| 85MM | ||
| 008 | A 0005016182 | HOSE |
| Repalced by: A 0015018082 | ||
| 008 | A 0015018082 | HOSE |
| 011 | A 0015015982 | CHARGE AIR HOSE |
| 90X100MM | ||
| Repalced by: A 0015019782 | ||
| 011 | A 0015019782 | MOLDED HOSE |
| 90X100MM | ||
| 014 | A 6335041940 | BRACKET |
| 017 | A 6335200301 | AIR INTAKE PIPE |
| 85MM | ||
| 020 | A 6285012182 | CHARGE AIR HOSE |
| 85MM | ||
| Repalced by: A 0015019882 | ||
| 020 | A 0015019882 | MOLDED HOSE |
| 85MM | ||
| 023 | A 0005018982 | CHARGE AIR HOSE |
| Repalced by: A 0015019982 | ||
| 023 | A 0015019982 | ACCORDION HOSE |
| 70X160MM | ||
| 026 | A 6335041840 | BRACKET |
| 029 | A 6335000035 | PANELLING |
| 032 | A 6335000135 | PANELLING |
| 035 | A 3825000118 | RADIATOR COVERING |
| TOP | ||
| 038 | A 0039941545 | NUT |
| 041 | A 4445040033 | STRAP |
| 85MM | ||
| 044 | N 000000000675 | CLAMP |
| 80-100X12MM | ||
| Repalced by: A 0019950610 | ||
| 044 | A 0019950610 | HOSE CLAMP |
| 045 | N 000000000673 | CLAMP |
| 60-80X12MM | ||
| Repalced by: A 0019951810 | ||
| 045 | A 0019951810 | HOSE CLAMP |

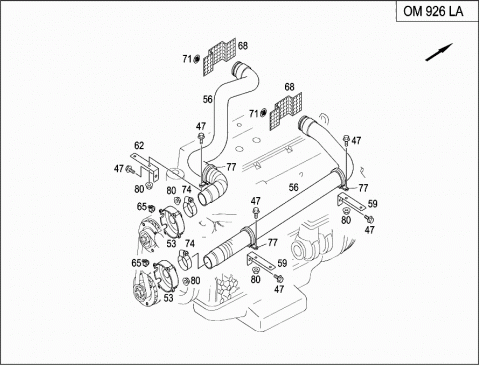

| 047 | N 000000000265 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 047 | N 910106010008 | HEXAGON HEAD BOLT |
| M10X25 | ||
| Repalced by: N 910105010009 | ||
| 047 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 047 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 047 | N 910106010008 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 047 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 047 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 047 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 047 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 048 | A 0009902769 | WASHER |
| 8.4X30X1.6 | ||
| 050 | N 913023010002 | NUT |
| M10 | ||
| 050 | N 913023008003 | NUT |
| M8 | ||
| 050 | N 913023010002 | NUT |
| M10 | ||
| 053 | A 5421540204 | COVER |
| 056 | A 6295280382 | HOSE |
| 590MM | ||
| 056 | A 6295280482 | HOSE |
| 930MM | ||
| 059 | A 6294312040 | BRACKET |
| 062 | A 6274290140 | BRACKET |
| 065 | A 0001541380 | GASKET |
| ALTERNATOR | ||
| 068 | A 0005280201 | PROTECTIVE GRILLE |
| OUTLET | ||
| 071 | A 0059908340 | CLAMPING DISC |
| 30X23X3,5MM | ||
| 074 | N 000000002774 | CLAMP |
| 35-50X13MM | ||
| 074 | N 000000002774 | CLAMP |
| 35-50X13MM | ||
| 077 | N 916016042201 | CLAMP |
| 42/20MM | ||
| Repalced by: N 000000000351 | ||
| 077 | N 000000000351 | CLAMP |
| 42/20MM | ||
| 080 | N 910112005000 | HEXAGON NUT |
| M5 | ||
| 080 | N 910112008000 | NUT |
| M8 | ||

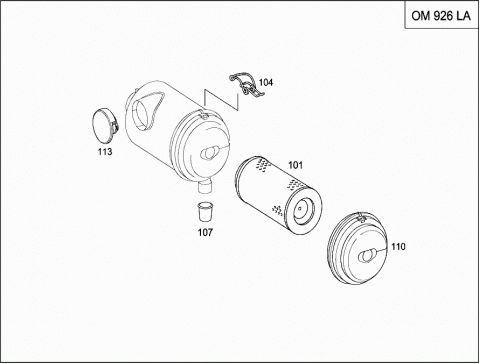

| 098 | A 4440900001 | AIR CLEANER |
| 101 | A 0040943804 | FILTER ELEMENT |
| 104 | A 0000945055 | FASTENER |
| 107 | A 0000944665 | VALVE |
| 110 | A 0009981121 | EXPANSION PLUG |
| 113 | A 4445280104 | SCOOP |
| Repalced by: A 0005200004 | ||
| 113 | A 0005200004 | SCOOP |
| 116 | A 4440900042 | CLAMP |
| 119 | A 0005280185 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| M10X50X20MM | ||
| 122 | N 913023010002 | NUT |
| M10 | ||
| 125 | A 0009888111 | RUBBER MOUNTING |
| AIR INTAKE TUBE MOUNTING | ||
| 125 | A 0009888111 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| 128 | N 910112008000 | NUT |
| M8 | ||
| 131 | A 0029975952 | HOSE |
| D130X116MM | ||
| Repalced by: A 0059970752 | ||
| 131 | A 0059970752 | HOSE |
| D130X116MM | ||
| 131 | A 0059970752 | HOSE |
| D=130/116MM | ||
| 134 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 134 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 134 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| 137 | A 6335200001 | AIR INTAKE PIPE |
| 140 | A 0059908340 | CLAMPING DISC |
| 30X23X3,5X0,4 MM | ||
| 140 | A 0059908340 | CLAMPING DISC |
| 30X23X3,5X0,4MM | ||
| 143 | A 0059971490 | HOSE CLAMP |
| Repalced by: A 0059972990 | ||
| 143 | A 0059972990 | CLAMP |
| 143 | A 0059972990 | CLAMP |
| 146 | A 6285014082 | MOLDED HOSE |
| 90-DEGREE ARC | ||
| D=28MM | ||
| 146 | A 6285014082 | MOLDED HOSE |
| 90-DEGREE ARC | ||
| D=28MM | ||
| 149 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 152 | A 9405280982 | HOSE |
| 155 | N 000000000644 | CLAMP |
| 110-130X12MM | ||
| 158 | N 000000000675 | CLAMP |
| 80-100X12MM | ||
| 161 | A 0051536528 | TEMPERATURE SENSOR |
| Repalced by: A 0071530128 | ||
| 161 | A 0071530128 | TEMPERATURE SENSOR |
| Repalced by: A 0071531128 | ||
| 161 | A 0071531128 | TEMPERATURE SENSOR |
| 164 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| Repalced by: N 910105006007 | ||
| 164 | N 910105006007 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 167 | A 0135422917 | CONTACT SENSOR |
| 170 | A 0000940276 | FELT WASHER |
| 172 | A 0004291127 | THRUST RING |
| 14X10X2.6MM | ||
| 174 | A 0269970248 | O-RING |
| 176 | A 6335280324 | PIPE LINE |
| D=28MM | ||
| 179 | A 6295040184 | SHIM |
| GASKET | ||
| 182 | A 0029974952 | HOSE |
| D28;600MM | ||
| 182 | A 0029974952 | HOSE |
| 28X600MM | ||
| 182 | A 6285284782 | INTAKE HOSE |
| 185 | A 0005200002 | RESONATOR |
| 188 | A 6335280040 | BRACKET |
| RESONATOR | ||
| 191 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 194 | A 6335280124 | PIPE LINE |
| D22 | ||
| 197 | A 6335280140 | BRACKET |
| 200 | A 6335280080 | GASKET |
| 203 | A 6335240092 | SEAL |
| 206 | A 6335280340 | BRACKET |
| 209 | A 6335280440 | BRACKET |
| 212 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||

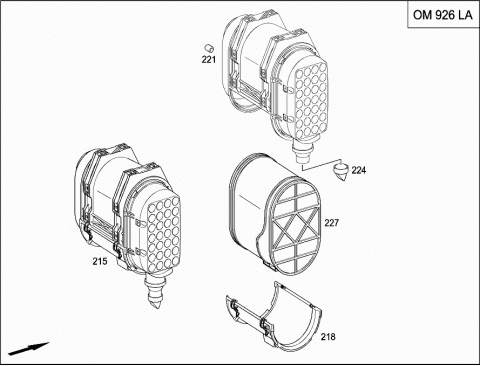

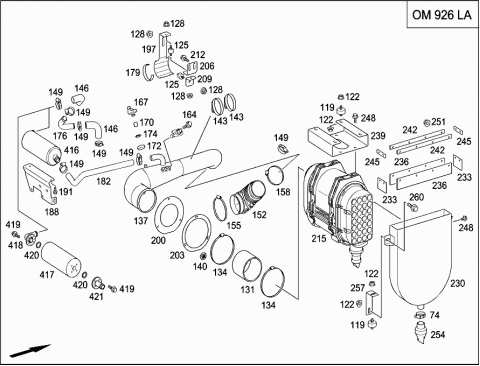

| 215 | A 0005200253 | AIR FILTER |
| 218 | A 0020940606 | FILTER COVER |
| 221 | A 0009981121 | EXPANSION PLUG |
| 224 | A 0000943465 | VALVE |
| 227 | A 0040946504 | AIR FILTER INSERT |
| 230 | A 6335200002 | INTAKE BOX |
| 233 | A 6335240292 | SEAL |
| 236 | A 6335240392 | SEAL |
| 239 | A 6335280240 | BRACKET |
| 242 | A 6335280044 | FASTENING PLATE |
| 245 | A 6335280144 | FASTENING PLATE |
| 248 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| Repalced by: N 910105008041 | ||
| 248 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 251 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 254 | A 0000940665 | VALVE |
| (DUST DISCHARGE VALVE) | ||
| 257 | A 6335280741 | BRACKET |
| AIR INTAKE CASE | ||
| 260 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 279 | A 4071540165 | COVER |
| 284 | N 913023006002 | NUT |
| M6 | ||
| 284 | N 913023006002 | NUT |
| M6 | ||
| 287 | A 0029974752 | HOSE |
| 1200MM | ||
| 287 | A 0069977552 | SUCTION HOSE |
| 1200MM | ||
| 293 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 302 | A 0005280001 | PROTECTIVE GRILLE |
| ALTERNATOR AIR INTAKE | ||
| 302 | A 0005280001 | PROTECTIVE GRILLE |
| ALTERNATOR AIR INTAKE | ||
| 305 | A 0029973052 | HOSE |
| 850MM | ||
| 305 | A 0069977652 | SUCTION HOSE |
| 850MM | ||
| 308 | A 0029974752 | HOSE |
| 1200MM | ||
| 308 | A 0069977552 | SUCTION HOSE |
| 1200MM | ||
| 309 | A 0079899071 | SEALING CEMENT |
| 225G | ||
| 311 | A 6294340140 | BRACKET |
| 314 | A 4071540165 | COVER |
| 317 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 320 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 323 | A 0049941945 | NUT |
| 326 | A 0049941645 | SPRING NUT |
| 329 | N 000000003529 | CLAMP |
| 55-75X13MM | ||
| 332 | N 000000006128 | CLAMP |
| 76/25MM | ||

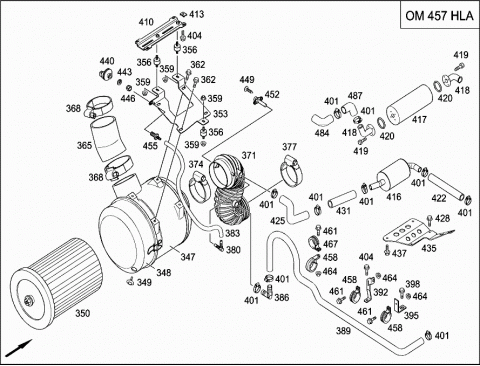

| 347 | A 0180944302 | AIR CLEANER |
| 348 | A 0010943603 | FILTER BOWL |
| 349 | A 0000943865 | PLUG |
| (DUST DISCHARGE VALVE) | ||
| 350 | A 0040941704 | FILTER CARTRIDGE |
| 353 | A 6295280339 | CONSOLE |
| 356 | A 0005280185 | RUBBER MOUNTING |
| M10X50X20 | ||
| 359 | N 913023010002 | NUT |
| M10 | ||
| 362 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16 | ||
| 365 | A 0029972152 | HOSE |
| 180X300MM | ||
| 368 | N 000000002136 | CLAMP |
| 180-200X12MM | ||
| 371 | A 0005281182 | HOSE |
| 374 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 377 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| 380 | A 0049900971 | ELBOW FITTING |
| 383 | A 0005280009 | PLASTIC PIPE |
| 386 | A 0049901071 | ELBOW FITTING |
| 389 | A 6345280482 | HOSE |
| 392 | A 0005041340 | BRACKET |
| 395 | A 0015461043 | BRACKET |
| 398 | N 000000005515 | HEXAGON HEAD BOLT |
| M14X1.5X25 | ||
| 401 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 404 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 410 | A 6295200533 | SUPPORT |
| 413 | A 0039941545 | NUT |
| M8 | ||
| 416 | A 0005200002 | RESONATOR |
| 416 | A 0005200002 | RESONATOR |
| 417 | A 6325200502 | RESONATOR |
| 417 | A 6325200502 | RESONATOR |
| 418 | A 6325281509 | CONNECTION FITTING |
| 90 DEGREES | ||
| 418 | A 6325281509 | CONNECTION FITTING |
| 90 DEGREES | ||
| 419 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 419 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 420 | A 0199974948 | O-RING |
| 420 | A 0199974948 | O-RING |
| 421 | A 6325281409 | CONNECTION FITTING |
| STRAIGHT | ||
| 422 | A 0029971752 | HOSE |
| 28X265MM | ||
| 425 | A 6295500058 | PIPE LINE |
| 428 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 431 | A 0029977652 | HOSE |
| 28X150MM | ||
| 435 | A 6335200282 | PLATE |
| 437 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 440 | A 0135422917 | CONTACT SENSOR |
| 443 | A 0000500095 | SEAL RING |
| 446 | N 910113010002 | HEXAGON NUT |
| M10X1 | ||
| 449 | N 914128005202 | SHEET METAL SCREW |
| 5.5X19 | ||
| 452 | A 0071531128 | TEMPERATURE SENSOR |
| 455 | A 0029901378 | CONNECTOR |
| 458 | N 000000000329 | CLAMP |
| 28/15MM | ||
| 461 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 464 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 467 | N 000000005975 | CLAMP |
| 35/20MM | ||
| 470 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 473 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 476 | N 910112008000 | NUT |
| M8 | ||
| 479 | A 0049941645 | SPRING NUT |
| 481 | A 0079973190 | CABLE STRAP |
| 7.8X465 | ||
| 484 | A 6321340301 | INTAKE MANIFOLD |
| 28MM | ||
| 487 | A 6285014082 | MOLDED HOSE |
| 90-DEGREE ARC | ||
| 28MM | ||
