Transporto priemonė: INTOURO; VIN numerio dalis: 633051

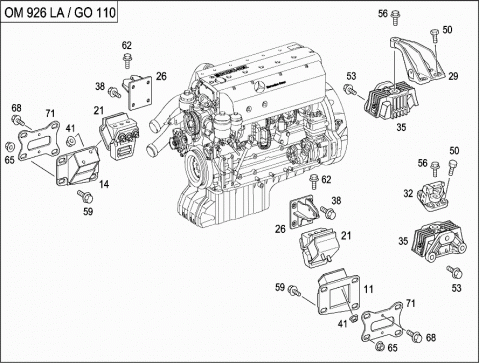

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 011 | A 6332400106 | CONSOLE |
| REAR RIGHT | ||
| 014 | A 6332400006 | CONSOLE |
| REAR LEFT | ||
| 021 | A 3002400117 | RUBBER MOUNTING |
| REAR LEFT AND RIGHT | ||
| Repalced by: A 6282403217 | ||
| 021 | A 6282403217 | RUBBER MOUNTING |
| REAR LEFT AND RIGHT | ||
| 026 | A 4442400000 | BRACKET |
| REAR LEFT AND RIGHT | ||
| 029 | A 4442420005 | SUPPORTING ARM |
| LEFT SUPPORTING ARM | ||
| 032 | A 4442420105 | SUPPORTING ARM |
| RIGHT SUPPORTING ARM | ||
| 035 | A 9732400318 | RUBBER MOUNTING |
| LEFT AND RIGHT | ||
| 038 | N 910105012010 | SCREW |
| CONSOLE TO FRAME | ||
| M12X40MM | ||
| 041 | N 910112012001 | NUT |
| CONSOLE TO FRAME | ||
| M12 | ||
| 050 | N 000000005454 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M16X45MM | ||
| 053 | N 000000005543 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M16X30MM | ||
| 056 | N 000000005563 | HEXAGON HEAD BOLT |
| 059 | N 000000005514 | SCREW |
| M14X40MM | ||
| Repalced by: N 910105014005 | ||
| 059 | N 910105014005 | SCREW |
| M14X40MM | ||
| 062 | N 000000005534 | SCREW |
| ENGINE REAR MOUNTING TO ENGINE SUPPORT | ||
| M16X35MM | ||
| 065 | N 000000005733 | SCREW |
| ENGINE REAR MOUNTING TO ENGINE SUPPORT | ||
| M14 | ||
| 068 | N 910106010038 | SCREW |
| M10X16MM | ||
| 071 | A 6334910018 | PLATE |
| 074 | A 6292400206 | CONSOLE |
| 077 | A 0002400118 | RUBBER MOUNTING |
| REAR | ||
| 080 | A 6292400217 | RUBBER MOUNTING |
| FRONT | ||
| 083 | A 6272400801 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 086 | A 6272400901 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 089 | A 6292411831 | PLATE |
| 092 | A 0002420053 | SPACER TUBE |
| 095 | A 0002400165 | STOP |
| 098 | A 0002420075 | WASHER |
| 101 | N 910105012020 | HEXAGON HEAD BOLT |
| 104 | N 000000005578 | HEXAGON HEAD BOLT |
| M12X1,5X180MM | ||
| 107 | N 000000005535 | HEXAGON HEAD BOLT |
| 110 | N 000000005718 | HEXAGON HEAD BOLT |
| 113 | N 000000005562 | HEXAGON HEAD BOLT |
| M18X1,5X40MM | ||
| 116 | N 000000005723 | HEXAGON HEAD BOLT |
| M18X1.5X55 | ||
| 119 | N 000000005544 | HEXAGON HEAD BOLT |
| M16X1,5X70MM | ||
| 222 | N 000000005706 | HEXAGON NUT |
| M20X1,5 | ||
| 227 | N 000000005734 | HEXAGON NUT |
| M16X1,5 | ||
| 233 | N 000000005733 | HEXAGON NUT |
| M14X1,5 | ||
| 236 | N 913023012002 | NUT |
| M12 | ||
| 239 | N 000000005534 | HEXAGON HEAD BOLT |
| M 16X1,5X35 MM | ||
| N 000000005533 | HEXAGON HEAD BOLT | |
| M16X1.5X120 | ||
| N 000000005537 | HEXAGON HEAD BOLT | |
| 242 | A 6332410003 | TRANSMISSION CARRIER |
| 245 | A 6332410103 | TRANSMISSION CARRIER |
