Transporto priemonė: INTOURO; VIN numerio dalis: 633051

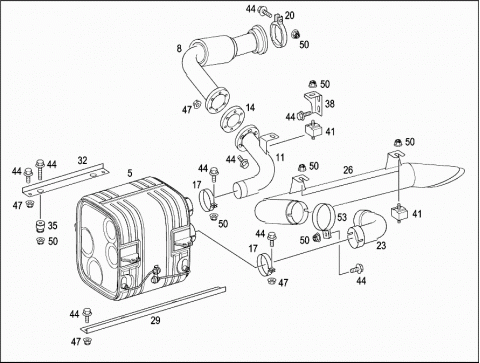

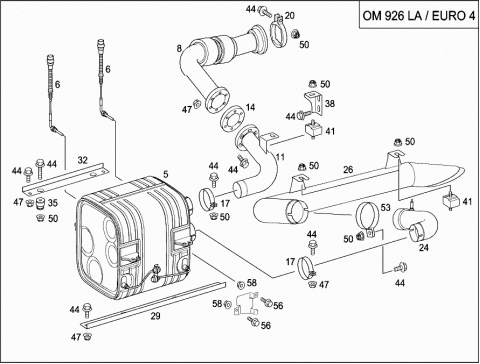

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0004906614 | CATALYST |
| 005 | A 0024905114 | CATALYST |
| 006 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 008 | A 6334920201 | FRONT EXHAUST PIPE |
| Repalced by: A 6334901710 | ||
| 008 | A 6334901710 | EXHAUST PIPE |
| 011 | A 6334920204 | REAR EXHAUST PIPE |
| 014 | A 0004920980 | FLANGE GASKET |
| D=90 | ||
| 017 | A 9794920440 | CLAMP |
| 017 | A 0009959002 | CLAMP |
| 97MM | ||
| 020 | A 6209970590 | CLAMP |
| 023 | A 6334920433 | PIPE ELBOW |
| D=90X1,5MM | ||
| 024 | A 6334900021 | EXHAUST PIPE |
| FOR NOX SENSOR | ||
| 026 | A 6334900227 | END PIECE |
| 100MM | ||
| 029 | A 6334910016 | SUPPORT |
| 980MM | ||
| Repalced by: A 6334901017 | ||
| 029 | A 6334901017 | ANGLE |
| 980MM | ||
| 032 | A 6334910116 | SUPPORT |
| 550MM | ||
| Repalced by: A 6334901117 | ||
| 032 | A 6334901117 | ANGLE |
| 550MM | ||
| 035 | A 0009980246 | INSULATION |
| Repalced by: A 0009980846 | ||
| 035 | A 0009980846 | DASHPOT |
| 038 | A 6334910141 | BRACKET |
| 041 | A 0004910285 | RUBBER MOUNTING |
| 044 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40MM | ||
| 044 | N 910106010008 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 044 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 044 | N 910106010012 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 044 | N 910105010012 | HEXAGON HEAD BOLT |
| M10X65MM | ||
| 044 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| 047 | N 910112010001 | NUT |
| M10 | ||
| 047 | N 910112012001 | HEXAGON NUT |
| M12X1,5 | ||
| 050 | N 913023008003 | NUT |
| M8 | ||
| 050 | N 913023010002 | NUT |
| M10 | ||
| 053 | N 071555100501 | CLAMP |
| 100,5MM | ||
| 053 | N 071555100501 | CLAMP |
| 100,5MM | ||
| 056 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16MM | ||
| Repalced by: N 910143006001 | ||
| 056 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16MM | ||
| 058 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 059 | A 0014904914 | CATALYST |
| NOX SENSOR | ||
| 060 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 061 | A 0005460522 | CLAMPING RING |
| NOX SENSOR | ||
| 063 | A 6334901310 | EXHAUST PIPE |
| 066 | A 6334900527 | TAILPIPE |
| 069 | A 6334910142 | BRACKET |
| 074 | A 6334920140 | CLAMP |
| EXHAUST SYSTEM | ||
| 077 | A 0009958602 | CLAMP |
| 148MM | ||
| 080 | A 0004910285 | RUBBER MOUNTING |
| 083 | A 0009980846 | DASHPOT |
| 086 | A 0009927050 | SPACER SLEEVE |
| 089 | A 0039903150 | NUT |
| 092 | A 6324900517 | ANGLE |
| 095 | A 6334900517 | ANGLE |
| 096 | A 6334900417 | ANGLE |
| 098 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 101 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 104 | N 910105010008 | HEXAGON HEAD BOLT |
| M10X45MM | ||
| 107 | N 910105010044 | HEXAGON HEAD BOLT |
| M10X90MM | ||
| 110 | N 910112010001 | NUT |
| M10 | ||
| 116 | A 0004920780 | FLANGE GASKET |
| 129MM | ||
| 119 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 119 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
| 122 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| Repalced by: A 0189901101 | ||
| 122 | A 0189901101 | SCREW |
| M10X35MM | ||
| 207 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 231 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 255 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 258 | A 0049941645 | SPRING NUT |
| 270 | A 0049941945 | NUT |
| 273 | A 0001400668 | WATER NOZZLE |
| REDUCING AGENT | ||
| 276 | A 4571402055 | DELIVERY LINE |
| 279 | N 000000000321 | CLAMP |
| 12/15MM | ||
| Repalced by: N 000000007512 | ||
| 279 | N 000000007512 | CLAMP |
| 12/15MM | ||
