Transporto priemonė: INTOURO E; VIN numerio dalis: 633251

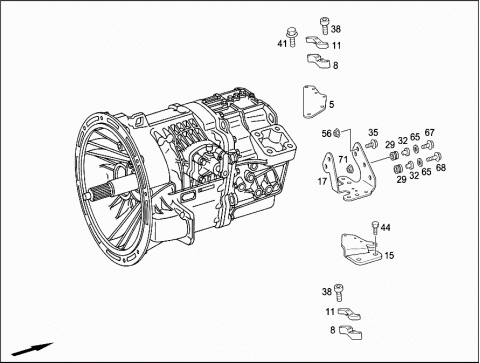

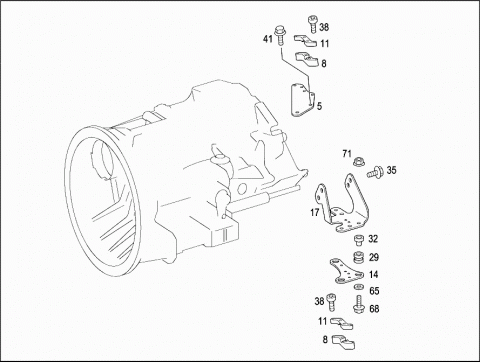

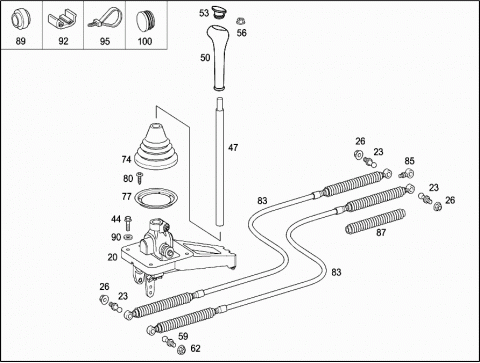

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4442680268 | PLATE |
| 005 | A 4442601162 | BRACKET |
| 008 | A 0002686540 | BRACKET |
| LOWER PART | ||
| 011 | A 0002686640 | BRACKET |
| UPPER PART | ||
| 014 | A 4442681340 | BRACKET |
| 015 | A 4442601062 | BRACKET |
| 017 | A 4442681540 | BRACKET |
| Repalced by: A 4442681840 | ||
| 017 | A 4442681840 | BRACKET |
| 020 | A 0002685501 | HOUSING |
| 020 | A 0002687201 | GEAR SHIFT HOUSING |
| 023 | N 071803013102 | BALL STUD |
| EXTERNAL THREAD, | ||
| M8 | ||
| 023 | N 000000006130 | BALL STUD |
| 026 | N 913023008003 | NUT |
| M8 | ||
| 029 | A 0109972181 | GROMMET |
| 032 | A 6292680150 | BUSHING |
| 035 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 038 | A 0029901822 | SCREW |
| 041 | N 910105006008 | HEXAGON HEAD BOLT |
| M6X25MM | ||
| 044 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25MM | ||
| 044 | N 910105008060 | HEXAGON HEAD BOLT |
| M8X30MM | ||
| 047 | A 6332600039 | SHIFT LEVER |
| 050 | A 6202680042 | KNOB |
| 053 | A 6202680457 | COVER |
| 056 | N 910113010002 | HEXAGON NUT |
| M10X1 | ||
| 056 | N 910113010001 | HEXAGON NUT |
| M10 | ||
| 059 | A 6279910015 | BALL PIVOT |
| M10 | ||
| 062 | N 910113010001 | HEXAGON NUT |
| M10 | ||
| 065 | N 000000003250 | WASHER |
| 067 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30MM | ||
| 068 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40MM | ||
| 071 | N 913023008002 | NUT |
| M8 | ||
| 074 | A 6272680097 | BOOT |
| 077 | A 6272640057 | LOCKING CAP |
| 080 | N 000000000453 | TAPPING SCREW |
| 4.2X13 | ||
| 083 | A 0002605451 | CABLE |
| 9850MM | ||
| 083 | A 0002606551 | CABLE |
| 10690MM | ||
| 083 | A 0002608651 | CONTROL CABLE |
| SLOTTED GATE | ||
| 9780MM | ||
| 083 | A 0002608751 | CONTROL CABLE |
| SELECTOR LEVER | ||
| 9780MM | ||
| 083 | A 0002608551 | CONTROL CABLE |
| SLOTTED GATE | ||
| 10610MM | ||
| 083 | A 0002608351 | CONTROL CABLE |
| SELECTOR LEVER | ||
| 10610MM | ||
| 085 | A 0002689089 | BALL JOINT |
| 085 | A 0002689089 | BALL JOINT |
| 087 | A 0002684397 | BOOT |
| 087 | A 0002684397 | BOOT |
| 089 | A 0002680192 | RUBBER PAD |
| 089 | A 0002680192 | RUBBER PAD |
| 090 | A 6272680092 | COUPLING FLANGE |
| 092 | A 0119889678 | CLIP |
| 092 | A 0119889678 | CLIP |
| 095 | A 0029975890 | CABLE TIE |
| 7.4-8.4X355-375 | ||
| 095 | A 0029975890 | CABLE TIE |
| 7.4-8.4X355-375 | ||
| 095 | A 0009951594 | CABLE TIE |
| 095 | A 0009951594 | CABLE TIE |
| 100 | A 0019986350 | PLUG |
| CONTROL CABLE | ||
