Transporto priemonė: INTOURO ME; VIN numerio dalis: 633252

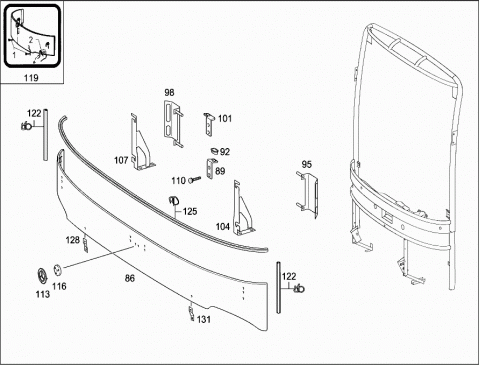

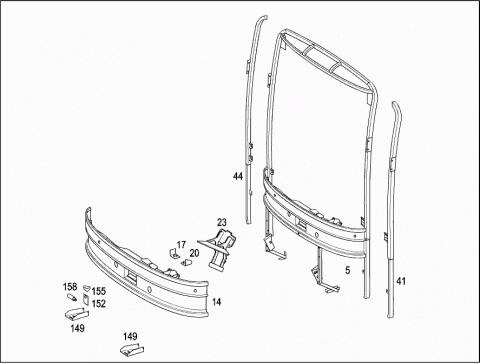

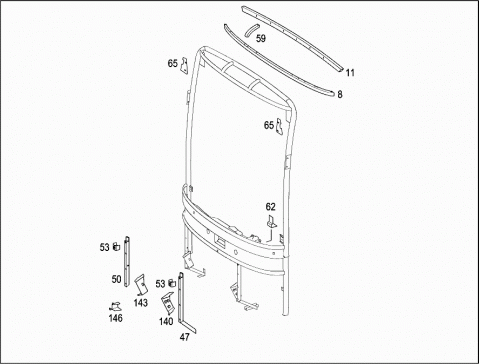

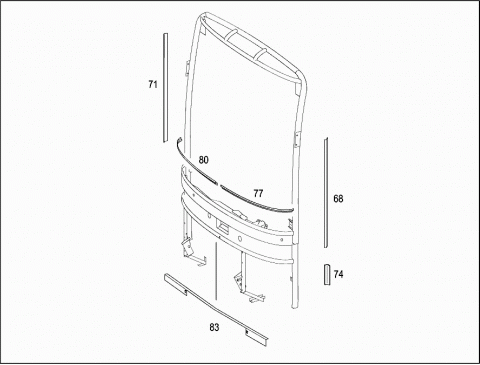

Grupė: 62 COWL,FRONT PANEL - 030 COWL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6336200302 | FRONT PANEL |
| 008 | A 6336200030 | SUPPORT |
| ABOVE WINDSHIELD | ||
| 011 | A 6336220020 | BOW |
| FRONT PANEL,TOP | ||
| 014 | A 6296200008 | FRONT PANEL |
| 017 | A 6296200614 | BRACKET |
| FRONT BOX | ||
| 020 | A 6296200914 | BRACKET |
| FRONT BOX | ||
| 023 | A 6296201315 | CONSOLE |
| STEERING COLUMN | ||
| 041 | A 6336200413 | PILLAR |
| LEFT OUTSIDE | ||
| 044 | A 6336200513 | PILLAR |
| RIGHT OUTSIDE | ||
| 047 | A 6326200713 | PILLAR |
| LEFT | ||
| 050 | A 6326201713 | PILLAR |
| RIGHT | ||
| 053 | A 6336200014 | BRACKET |
| 059 | A 6336210034 | BRACING |
| 062 | A 6296221714 | BRACKET |
| 065 | A 6336220011 | PLATE |
| 068 | A 6336020412 | ANGLE |
| GLAZING | ||
| 1537MM | ||
| 071 | A 6336020512 | ANGLE |
| GLAZING | ||
| 1537MM | ||
| 074 | A 6296270312 | ANGLE |
| 077 | A 6296271612 | ANGLE |
| LEFT | ||
| 080 | A 6296271712 | ANGLE |
| RIGHT | ||
| 083 | A 6336270112 | ANGLE |
| 086 | A 6336270008 | COVERING |
| 089 | A 6296270014 | BRACKET |
| 092 | A 0009927905 | BUSHING |
| 095 | A 6296200112 | ANGLE |
| LEFT | ||
| 098 | A 6296200212 | ANGLE |
| RIGHT | ||
| 101 | A 6296270614 | BRACKET |
| RIGHT | ||
| 104 | A 6296250085 | BRACKET |
| LEFT | ||
| 107 | A 6296250185 | BRACKET |
| RIGHT | ||
| 110 | A 0029872640 | RUBBER BUFFER |
| M8X45MM | ||
| 113 | A 6738100018 | BADGE |
| 116 | A 0049883378 | CLIP |
| 119 | A 6296280100 | GUMMED LABEL |
| 122 | A 0009871762 | RUBBER SECTION |
| 125 | A 0009872562 | RUBBER SECTION |
| 128 | A 6326253814 | BRACKET |
| 131 | A 6326251014 | BRACKET |
| 140 | A 6326200315 | CONSOLE |
| LEFT LOCK | ||
| 143 | A 6326200415 | CONSOLE |
| RIGHT LOCK | ||
| 146 | A 6326200914 | BRACKET |
| RETAINING STRAP | ||
| 149 | A 6326220814 | BRACKET |
| FOR SUPPORTING FRAME | ||
| 152 | A 6326250024 | PLATE |
| 155 | A 6326253914 | BRACKET |
| BATTERY CABLE TO BATTERY CARRIAGE | ||
| 158 | A 6276310221 | END PIECE |
| FLAP SUPPORT |
