Transporto priemonė: LO 814; VIN numerio dalis: 398218

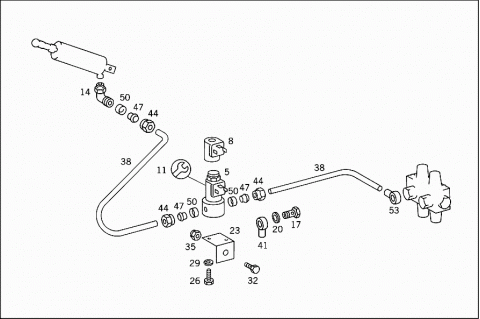

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3889978236 | VALVE |
| "PARKER" | ||
| 005 | A 6889977336 | VALVE |
| "WABCO" | ||
| 008 | A 0005460388 | SOLENOID |
| TO 688 997 73 36 | ||
| 011 | A 0004206855 | REPAIR KIT |
| TO 688 997 73 36 | ||
| 011 | A 0059972336 | REPAIR KIT |
| TO 388 997 82 36 | ||
| 014 | N 003952006102 | FITTING |
| SINGLE CIRCUIT PISTON CYLINDER, CONNECTION: | ||
| "1" | ||
| 017 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 020 | N 007603012405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 023 | A 6884347040 | BRACKET |
| 026 | N 000933005095 | SCREW |
| SOLENOID VALVE TO BRACKET | ||
| 029 | N 912004005100 | LOCK WASHER |
| SOLENOID VALVE TO BRACKET | ||
| 032 | N 000933010254 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 035 | N 913004010004 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 038 | A 0089976082 | HOSE |
| FROM 3/2-WAY VALVE TO CYLINDER | ||
| 4X6 MM | ||
| 041 | N 915052004015 | BANJO UNION |
| 044 | N 915017006100 | UNION NUT |
| 047 | N 003861006007 | GLAND |
| 050 | N 915062004000 | SLEEVE |
| 053 | N 915052004002 | BANJO UNION |
