Transporto priemonė: LO 814; VIN numerio dalis: 398218

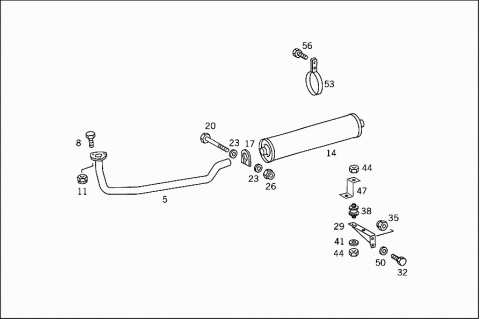

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6884907719 | EXHAUST PIPE |
| FRONT | ||
| 008 | N 000933010255 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | A 6884907601 | EXHAUST MUFFLER |
| 017 | A 6734920140 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 020 | N 000931008390 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M8X110 | ||
| 023 | A 6089900640 | WASHER |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 026 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 026 | A 1201420072 | HEXAGON NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 029 | A 6884917341 | BRACKET |
| EXHAUST MUFFLER | ||
| 178 MM | ||
| 029 | A 6884917441 | BRACKET |
| EXHAUST MUFFLER | ||
| 305 MM | ||
| 032 | N 000933010174 | SCREW |
| BRACKET TO FRAME | ||
| 032 | N 000933010200 | SCREW |
| BRACKET TO FRAME | ||
| 035 | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 038 | A 0019873140 | RUBBER BUFFER |
| 041 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 044 | N 000934010005 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 047 | A 6884917616 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 95 MM | ||
| 047 | A 6884917716 | SUPPORT |
| EXHAUST MUFFLER | ||
| 140 MM | ||
| 050 | N 000125010517 | WASHER |
| SUPPORT TO FRAME | ||
| 053 | A 6884917040 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 056 | N 000933008270 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||

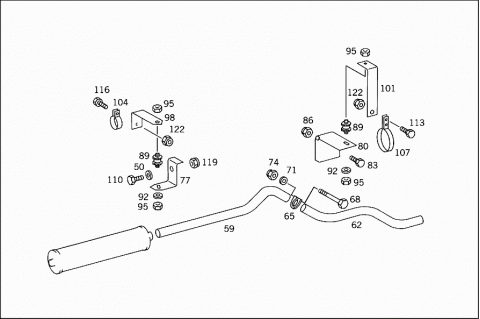

| 059 | A 6884927104 | REAR EXHAUST PIPE |
| 062 | A 6884927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 065 | A 6684920340 | CLAMP |
| REAR EXHAUST PIPES | ||
| 068 | N 000931008422 | SCREW |
| REAR EXHAUST PIPES | ||
| 071 | N 000125008417 | WASHER |
| REAR EXHAUST PIPES | ||
| 074 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 074 | A 1201420072 | HEXAGON NUT |
| REAR EXHAUST PIPES | ||
| 077 | A 6884927141 | BRACKET |
| SHOCK ABSORBER MOUNTING | ||
| 080 | A 6884927241 | BRACKET |
| FRAME | ||
| 083 | N 000933010174 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 M | ||
| 083 | N 000933010200 | SCREW |
| BRACKET TO FRAME | ||
| M 10X30 MM | ||
| 086 | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 089 | A 0019873140 | RUBBER BUFFER |
| BRACKET TO BRACKET | ||
| 092 | N 000125010517 | WASHER |
| BRACKET TO BRACKET | ||
| 095 | N 000934010005 | NUT |
| BRACKET TO BRACKET | ||
| 098 | A 6884927116 | SUPPORT |
| SHOCK ABSORBER MOUNTING | ||
| 101 | A 6884927016 | SUPPORT |
| FRAME | ||
| 104 | N 071555075503 | CLAMP |
| SHOCK ABSORBER MOUNTING | ||
| 107 | A 6684920440 | CLAMP |
| FRAME | ||
| 110 | N 000933010255 | SCREW |
| M 10X35 MM | ||
| 113 | N 000933008288 | SCREW |
| M 8X25 MM | ||
| 116 | N 000933008273 | SCREW |
| CLAMP TO BRACKET | ||
| M 8X28 MM | ||
| 119 | N 913004010000 | NUT |
| 122 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 122 | A 1201420072 | HEXAGON NUT |
