Transporto priemonė: LO 814; VIN numerio dalis: 398218

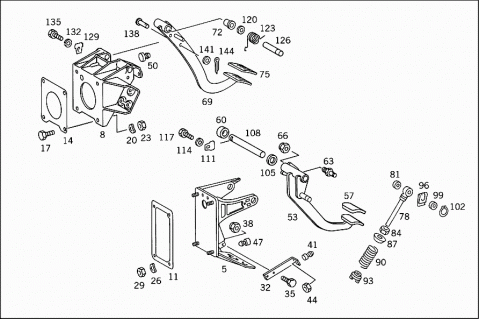

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6882947001 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 008 | A 3842947201 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 011 | A 6452940280 | GASKET |
| BEARING BRACKET TO CAB | ||
| 014 | A 3842947080 | GASKET |
| BEARING BRACKET TO CAB | ||
| 017 | N 000933008275 | SCREW |
| BEARING BRACKET TO CAB | ||
| M8X35 | ||
| 020 | N 000137008202 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 023 | N 000934008008 | NUT |
| BEARING BRACKET TO CAB | ||
| 026 | N 000137008202 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 029 | N 000934008008 | NUT |
| BEARING BRACKET TO CAB | ||
| 032 | A 3842907032 | STOP |
| (ANGLE) | ||
| 035 | N 000933006221 | SCREW |
| STOP TO BEARING BRACKET | ||
| 038 | N 913004006001 | NUT |
| STOP TO BEARING BRACKET | ||
| 041 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| 044 | N 000934008007 | NUT |
| CLUTCH PEDAL | ||
| 047 | A 6882917586 | STOP |
| CLUTCH PEDAL | ||
| 050 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 053 | A 6882907016 | PEDAL |
| CLUTCH | ||
| 057 | A 1102910182 | PAD |
| 060 | A 0019816310 | NEEDLE BEARING |
| 063 | A 6882910074 | PIN |
| 066 | N 913002010001 | NUT |
| 069 | A 3842907018 | PEDAL |
| BRAKE | ||
| 072 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 075 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 078 | A 3822908419 | BEARING BRACKET |
| 081 | A 0059814410 | NEEDLE BEARING |
| 081 | A 0059813810 | NEEDLE BEARING |
| 081 | A 0089811210 | NEEDLE BEARING |
| 081 | A 0139818210 | NEEDLE BEARING |
| 084 | N 000439010221 | NUT |
| 087 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 090 | A 6882917092 | SPRING |
| CLUTCH PEDAL RESET | ||
| 093 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 096 | A 6459880178 | CLIP |
| 099 | N 001440008002 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 102 | N 000471008001 | LOCK RING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 105 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 108 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 111 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 114 | N 000125006420 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 117 | N 000933006220 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 120 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 123 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 126 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 129 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 132 | N 000127006203 | LOCK WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 135 | N 000933006223 | SCREW |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 138 | A 3529910007 | PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 141 | N 000433010504 | WASHER |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 144 | N 000094003207 | COTTER PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||

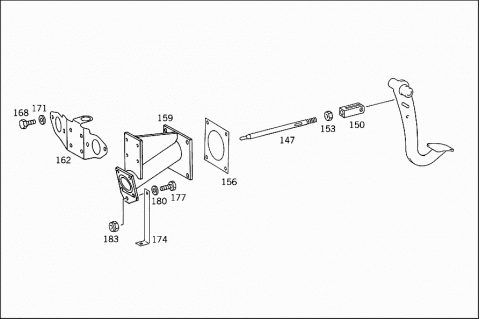

| 147 | A 6884260230 | ROD |
| 150 | A 3849967001 | YOKE |
| 153 | N 000934012009 | NUT |
| 156 | A 6884310080 | GASKET |
| BRACKET TO FIRE WALL AND TO PEDAL BEARING BRACKET | ||
| 159 | A 6884308010 | BRACKET |
| 162 | A 6884317840 | BRACKET |
| BRACKET TO BRACKET | ||
| 168 | N 000933008288 | SCREW |
| BRACKET TO BRACKET | ||
| 171 | N 000125008417 | WASHER |
| BRACKET TO BRACKET | ||
| 174 | A 6884310395 | WEB |
| 177 | N 000933008271 | SCREW |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| M 8X20 | ||
| 177 | N 000933008317 | SCREW |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| M 8X18 | ||
| 180 | N 000125008417 | WASHER |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| 183 | N 913004008001 | NUT |
| STAY TO BRACKET AND TO SIDE MEMBER |
