Transporto priemonė: LO 814; VIN numerio dalis: 398218

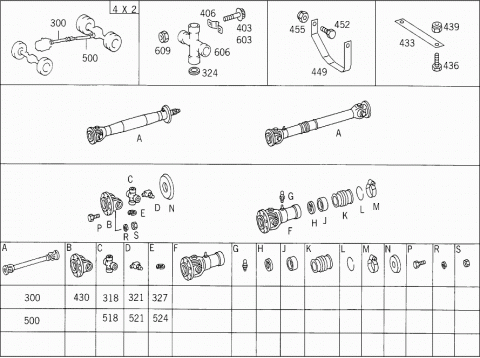

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
300	A 6884108101	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
318	A 0004103331	UNIVERSAL JOINT CROSS
321	A 0009974788	GREASE NIPPLE
324	A 0004130480	SEAL RING
327	A 0029944435	SNAP RING
		AS REQUIRED
		1.37/1.41MM
327	A 0029944535	SNAP RING
		AS REQUIRED
		1.42/1.46MM
327	A 0029944635	SNAP RING
		AS REQUIRED
		1.47/1.51MM
327	A 0029944735	SNAP RING
		AS REQUIRED
		1.52/1.56MM
327	A 0029944835	SNAP RING
		AS REQUIRED
		1.57/1.61MM
327	A 0029944935	SNAP RING
		AS REQUIRED
		1.62/1.66MM
	A 0004101122	INTERMEDIATE BEARING
403	A 3849907801	SCREW
		PROPELLER SHAFT TO TRANSMISSION
406	A 6889907145	BEARING COVER
		PROPELLER SHAFT TO TRANSMISSION
430	A 0004100530	CENTERING FLANGE
		INTERMEDIATE SHAFT BEARING
	A 0003530272	NUT
433	A 6884137084	SHIM
		BRACKET TO CROSS MEMBER
436	N 000961002154	SCREW
		BRACKET TO CROSS MEMBER
439	N 913002012003	NUT
		BRACKET TO CROSS MEMBER
449	A 6884117182	REBOUND STRAP
452	N 000933008288	SCREW
		REBOUND STRAP TO CROSS MEMBER
455	N 913004008001	NUT
		REBOUND STRAP TO CROSS MEMBER
500	A 6884108002	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
518	A 0004101931	UNIVERSAL JOINT CROSS
521	A 0009974788	GREASE NIPPLE
524	A 0029944435	SNAP RING
		AS REQUIRED
		1.37/1.41MM
524	A 0029944535	SNAP RING
		AS REQUIRED
		1.42/1.46MM
524	A 0029944635	SNAP RING
		AS REQUIRED
		1.47/1.51MM
524	A 0029944735	SNAP RING
		AS REQUIRED
		1.52/1.56MM
524	A 0029944835	SNAP RING
		AS REQUIRED
		1.57/1.61MM
524	A 0029944935	SNAP RING
		AS REQUIRED
		1.62/1.66MM
603	A 6889907201	SCREW
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
606	A 6889907145	BEARING COVER
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
609	N 913004010014	NUT
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
