Transporto priemonė: MBC-FAHRGESTELL EURO 3; VIN numerio dalis: 444200

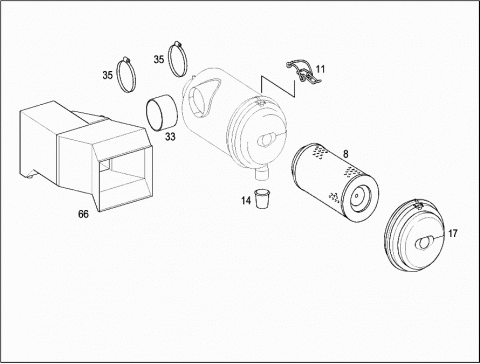

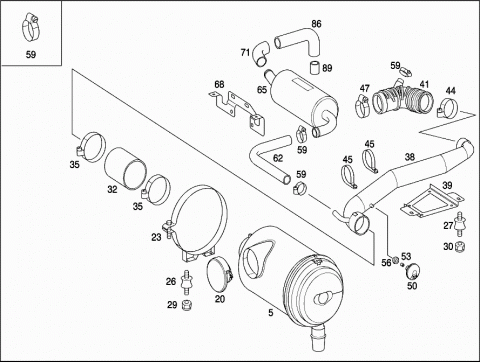

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4440900001 | AIR CLEANER |
| 008 | A 0040943804 | FILTER ELEMENT |
| 011 | A 0000945055 | FASTENER |
| 014 | A 0000944665 | VALVE |
| 017 | A 0009981121 | EXPANSION PLUG |
| 020 | A 4445280104 | SCOOP |
| 023 | A 4440900042 | CLAMP |
| 026 | A 0005280185 | RUBBER MOUNTING |
| ATTACHMENT,AIR FILTER | ||
| M10X50X20 | ||
| 027 | A 0009888111 | RUBBER MOUNTING |
| AIR INTAKE TUBE MOUNTING | ||
| 029 | N 000000003275 | NUT |
| ATTACHMENT,AIR FILTER | ||
| M10 | ||
| 030 | N 910112008000 | NUT |
| M8 | ||
| 032 | A 0029975952 | HOSE |
| 033 | A 0029976352 | HOSE |
| 150X100MM | ||
| 035 | N 000000000678 | CLAMP |
| 130-150X12MM | ||
| Repalced by: N 000000005892 | ||
| 035 | N 000000005892 | CLAMP |
| 130-150X12MM | ||
| 035 | N 000000000680 | CLAMP |
| 150X170X12MM | ||
| 038 | A 4445200601 | AIR INTAKE PIPE |
| 039 | A 4445282040 | BRACKET |
| BRACKET TO AIR INTAKE PIPE | ||
| 041 | A 9405280982 | HOSE |
| 044 | N 000000000675 | CLAMP |
| 80-100X12MM | ||
| 045 | A 0005280043 | CLAMP |
| AIR INTAKE TUBE MOUNTING | ||
| 047 | N 000000000676 | CLAMP |
| 100-120X12MM | ||
| Repalced by: N 000000005890 | ||
| 047 | N 000000005890 | CLAMP |
| 100-120X12MM | ||
| 050 | A 0135422917 | SENDER UNIT |
| 053 | A 0000940276 | WASHER |
| FELT | ||
| 056 | A 0000500095 | SEAL RING |
| 059 | N 000000002772 | CLAMP |
| 25-40X13MM | ||
| 062 | A 0029974952 | HOSE |
| 600 LG | ||
| 065 | A 0005200002 | RESONATOR |
| 066 | A 4448300053 | AIR INTAKE PIPE |
| 068 | A 4445282140 | BRACKET |
| 071 | A 4445010582 | HOSE |
| 074 | A 4421540104 | COVER WITH AIR INTAKE |
| AIR INTAKE | ||
| 077 | A 0029973252 | HOSE |
| 2385 MM | ||
| 080 | N 000000000673 | CLAMP |
| 60-80X12MM | ||
| 083 | A 0001541280 | CABLE GROMMET |
| 086 | A 4445280908 | AIR INTAKE PIPE |
| 089 | A 0015013582 | HOSE |
| D = 28 MM | ||
| 092 | A 5421540004 | COVER |
| 092 | A 0001543004 | COVER |
| 095 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| 095 | N 000000001468 | CLAMP |
| 60-80X13MM | ||
| 098 | A 0029974752 | HOSE |
| 1200MM | ||
| 098 | A 0069977552 | SUCTION HOSE |
| 1200MM | ||
| 101 | A 0029973952 | HOSE |
| 1700MM | ||
| 101 | A 0039977252 | HOSE |
| 2800MM | ||
| 104 | A 6345280540 | BRACKET |
| 107 | A 0005280001 | PROTECTIVE GRILLE |
| 110 | N 913023008003 | NUT |
| M8 | ||
| 110 | N 910112010001 | NUT |
| M10 | ||
| 113 | N 910105008045 | HEXAGON HEAD BOLT |
| M8X55 | ||
| 113 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 116 | N 910112005000 | HEXAGON NUT |
| M5 | ||
| 116 | N 910112005000 | HEXAGON NUT |
| M5 | ||
| 116 | N 910112010001 | NUT |
| M10 | ||
| 119 | A 0049971890 | CABLE TIE |
| L=380-400MM | ||
| 119 | A 0029979090 | LOOM TIE |
| A 4448310028 | INTERMEDIATE PIECE | |
| 70X60X25MM | ||
| N 000000003186 | CLAMP | |
| 76/25MM | ||
| Repalced by: N 000000006128 | ||
| N 000000006128 | CLAMP | |
| 76/25MM | ||
