Transporto priemonė: MBC-FAHRGESTELL EURO 3; VIN numerio dalis: 444200

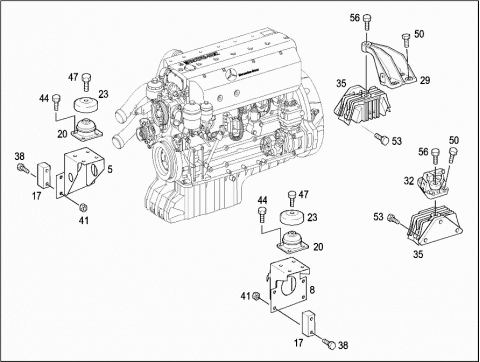

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4442400340 | BRACKET |
| REAR LEFT | ||
| 008 | A 4442400440 | BRACKET |
| REAR RIGHT | ||
| 011 | A 4442400940 | BRACKET |
| REAR RIGHT | ||
| 014 | A 4442400840 | BRACKET |
| REAR LEFT | ||
| 017 | A 4443220128 | SHIM |
| REAR LEFT AND RIGHT | ||
| 020 | A 3662230212 | RUBBER MOUNTING |
| REAR LEFT AND RIGHT | ||
| 021 | A 3002400117 | RUBBER MOUNTING |
| REAR LEFT AND RIGHT | ||
| Repalced by: A 6282403217 | ||
| 021 | A 6282403217 | RUBBER MOUNTING |
| REAR LEFT AND RIGHT | ||
| 023 | A 0212230213 | PROTECTIVE CAP |
| REAR LEFT AND RIGHT | ||
| 026 | A 4442400000 | BRACKET |
| REAR LEFT AND RIGHT | ||
| 029 | A 4442420005 | SUPPORTING ARM |
| LEFT SUPPORTING ARM | ||
| 029 | A 4442420005 | SUPPORTING ARM |
| LEFT SUPPORTING ARM | ||
| 032 | A 4442420105 | SUPPORTING ARM |
| RIGHT SUPPORTING ARM | ||
| 032 | A 4442420105 | SUPPORTING ARM |
| RIGHT SUPPORTING ARM | ||
| 035 | A 9732400318 | RUBBER MOUNTING |
| LEFT AND RIGHT | ||
| 035 | A 9702400318 | RUBBER MOUNTING |
| LEFT AND RIGHT | ||
| 038 | N 910105012042 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| M12X1,5X90MM | ||
| 038 | N 910105012010 | HEXAGON HEAD BOLT |
| CONSOLE TO FRAME | ||
| M12X1,5X40MM | ||
| 041 | N 913023012002 | NUT |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| M12X1,5 | ||
| 041 | N 910112012001 | NUT |
| CONSOLE TO FRAME | ||
| M12X1,5 | ||
| 044 | N 910105010001 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M10X30 | ||
| 044 | N 910105010002 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M10X50MM | ||
| 047 | N 910105016012 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M16X1,5X50MM | ||
| Repalced by: N 000000005542 | ||
| 047 | N 000000005542 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M16X1,5X50MM | ||
| 050 | N 000000005453 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M16X40MM | ||
| 050 | N 000000005454 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M16X45MM | ||
| 053 | N 000000005534 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M16X1,5X35MM | ||
| 053 | N 000000005534 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M16X1,5X35MM | ||
| 056 | N 000000005563 | SCREW |
| M18X1,5X50MM | ||
| 056 | N 910105018022 | HEXAGON HEAD BOLT |
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 056 | N 000000005563 | SCREW |
| M18X1,5X50MM | ||
