Transporto priemonė: MBC-FAHRGESTELL EURO 3; VIN numerio dalis: 444200

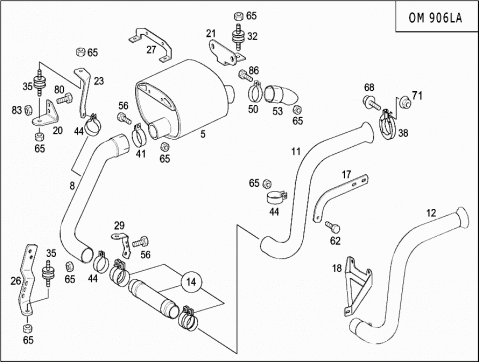

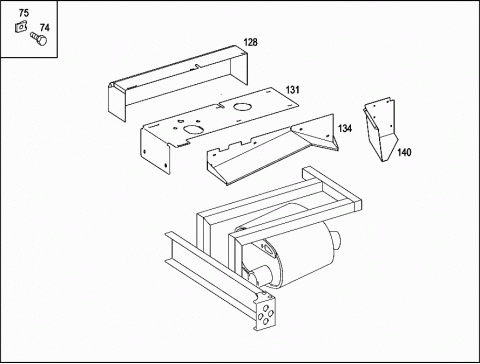

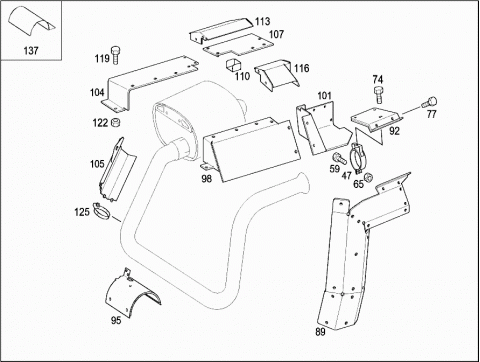

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4444900201 | EXHAUST MUFFLER |
| 008 | A 4444920401 | FRONT EXHAUST PIPE |
| EXHAUST PIPE TO MUFFLER | ||
| 011 | A 4444920501 | FRONT EXHAUST PIPE |
| 012 | A 4444900010 | EXHAUST PIPE |
| 014 | A 9734900165 | FLEXIBLE METAL TUBE |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| Repalced by: A 9704900665 | ||
| 014 | A 9704900665 | WRAPPED TUBING |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| 017 | A 4444920241 | BRACKET |
| EXHAUST PIPE TO TIMING CASE | ||
| 018 | A 4444910941 | BRACKET |
| EXHAUST PIPE TO TIMING CASE | ||
| 020 | A 4444921141 | BRACKET |
| 021 | A 4444910841 | BRACKET |
| 023 | A 4444920441 | BRACKET |
| 026 | A 4444921241 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 027 | A 4444910741 | BRACKET |
| 029 | A 4444920741 | BRACKET |
| 032 | A 0032370912 | BUFFER |
| 035 | A 3225040112 | RUBBER MOUNTING |
| AT BRACKET | ||
| 038 | A 6209970590 | CLAMP |
| TO TURBOCHARGER | ||
| 041 | N 071555094502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 94,5MM | ||
| 044 | A 6524920040 | CLAMP |
| I.D., | ||
| 90,5MM | ||
| 047 | A 4444900041 | CLAMP |
| HEAT SHIELD MOUNTING | ||
| 050 | A 9404920240 | CLAMP |
| I.D., | ||
| 104,5MM | ||
| 053 | A 4444920301 | FRONT EXHAUST PIPE |
| (TAIL PIPE) | ||
| 056 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 059 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 062 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 065 | N 000000003275 | NUT |
| M10 | ||
| 068 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40MM | ||
| 071 | N 000000003175 | NUT |
| M8 | ||
| 074 | N 910105006004 | HEXAGON HEAD BOLT |
| HEAT SHIELD MOUNTING | ||
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 074 | N 910143006001 | HEXALOBULAR BOLT |
| HEAT SHIELD MOUNTING | ||
| M6X16 | ||
| 075 | A 0049941645 | SPRING NUT |
| M6MM | ||
| 077 | N 910105005002 | HEXAGON HEAD BOLT |
| AT HEAT SHIELD | ||
| M5X16MM | ||
| 080 | N 910105012007 | HEXAGON HEAD BOLT |
| BRACKET TO LEFT SIDE MEMBER | ||
| M12X1,5X30MM | ||
| 083 | N 000000003276 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| M12X1,5 | ||
| 086 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40 | ||
| 089 | A 4444900130 | PROTECTIVE PLATE |
| 092 | A 4444900730 | PROTECTIVE PLATE |
| 095 | A 4444900330 | PROTECTIVE PLATE |
| 098 | A 4444900430 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 101 | A 4444910730 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 104 | A 4444900530 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 105 | A 4444911930 | PROTECTIVE PLATE |
| 107 | A 4444900630 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 110 | A 4444910630 | PROTECTIVE PLATE |
| RUBBER MOUNT | ||
| 113 | A 4444900030 | PROTECTIVE PLATE |
| 116 | A 4444900230 | PROTECTIVE PLATE |
| 119 | N 910105012007 | HEXAGON HEAD BOLT |
| M12X1,5X30MM | ||
| 122 | N 000000003276 | NUT |
| M12X1,5 | ||
| 125 | N 000000000675 | CLAMP |
| 80-100X13MM | ||
| 128 | A 4444911730 | PROTECTIVE PLATE |
| 131 | A 4444911630 | PROTECTIVE PLATE |
| 134 | A 4444911530 | PROTECTIVE PLATE |
| 134 | A 4444911830 | PROTECTIVE PLATE |
| 137 | A 4446820009 | INSULATION |
| EXHAUST PIPE | ||
| 140 | A 4444912030 | PROTECTIVE PLATE |
