Transporto priemonė: MBO 1218; VIN numerio dalis: 685288

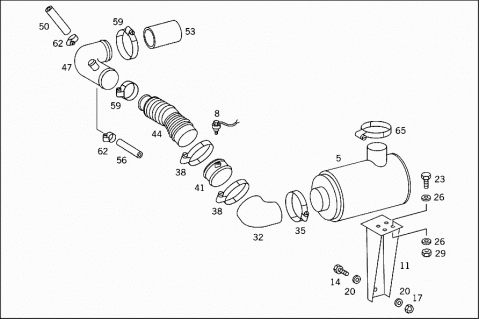

Grupė: 52 CHASSIS SHEET METAL - 160 AIR INTAKE AND AIR CLEANER

#	Kodas	Pavadinimas
005	H XM6850901901	AIR CLEANER
008	H XM6850940168	VACUUM BOX
		AIR CLEANER
011	H XM6855200841	BRACKET
		AIR CLEANER
014	Q 23-09440-175	PART NAME MISSING
		SCREW
		1/2-13
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FRAME
017	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2-13
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FRAME
020	Q 23-09114-003	PART NAME MISSING
		WASHER
		M 12X1.5X35
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FRAME
023	Q 23-09436-125	PART NAME MISSING
		SCREW
		3/8-16
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET MOUNTING
026	Q 23-09114-002	PART NAME MISSING
		WASHER
		3/8
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET MOUNTING
029	Q 23-09901-106	PART NAME MISSING
		NUT
		3/8-16
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET MOUNTING
032	H XM6855280082	HOSE
		FROM AIR CLEANER TO TURBOCHARGER
032	A 6815280882	HOSE
		FROM AIR CLEANER TO TURBOCHARGER
035	Q 23-09132-088	PART NAME MISSING
		LOOM TIE
038	Q 23-09132-064	PART NAME MISSING
		CLAMP
041	H XM6855200806	PIPE ELBOW
044	A 6855281282	HOSE
047	H XM6855200906	PIPE ELBOW
		AIR INTAKE
047	H XM6855200706	PIPE ELBOW
		AIR INTAKE
050	H XM6854660181	HOSE
		AIR INTAKE
053	A 4229970083	SLEEVE
056	H XM6855281782	HOSE
		AIR INTAKE
059	N 916017070000	CLAMP
	Repalced by: N 000000000674
059	N 000000000674	CLAMP
		70-90
062	N 916026025000	CLAMP
		25-40
062	H XM6859970490	LOOM TIE
		25-40
	H XM6855281882	HOSE
		AIR INTAKE
065	Q 23-09322-650	PART NAME MISSING
		CLAMP
